Servo Motor Beta Series Descriptions Page 263

Descriptions

Page of 337

/ 337

B-65232EN/03 CONNECTION4.DETAILS OF CABLE CONNECTIONS

- 233 -

Reference

- Wire for K1 cable

The following wire is recommended for the K1 cable:

FANUC specification : A66L-0001-0284/10P

Name : 10-pair cable

Wire : #28AWG 10 pairs (20 conductors), standard length 200 m

Manufacturer : Hitachi Cable, Ltd., Oki Electric Cable Co., Ltd.

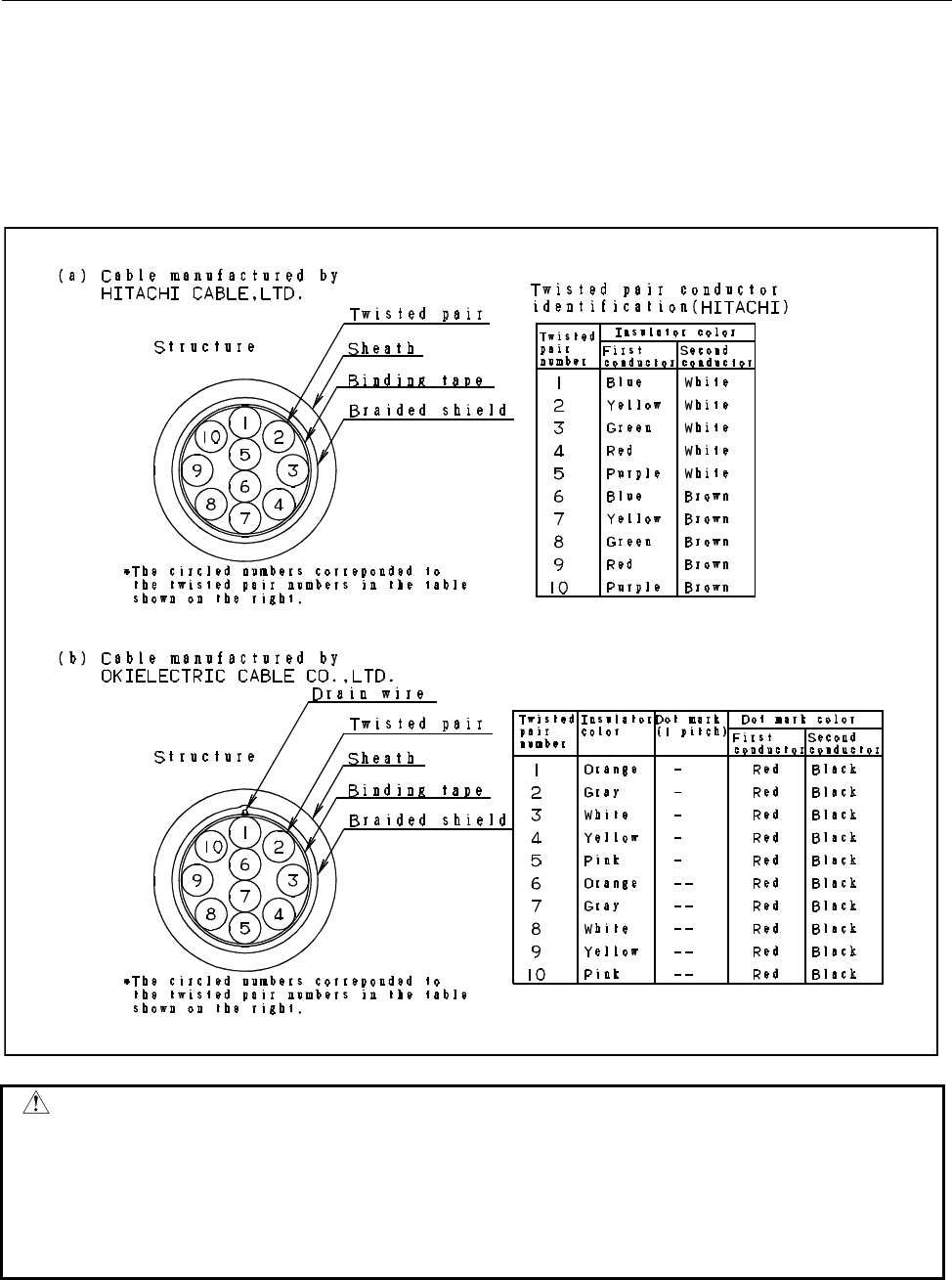

Twisted pair conductor indentification (OKI)

WARNING

1 For the pairs (1-2, 11-12) used for the current feedback signals (IR, IS), use the

central pairs of the cable to minimize the effect of external influences. (For IR and

IS, use pairs 5 and 6 when using the Hitachi cable. Use pairs 6 and 7 when using

the Oki cable.) The use of other cables may cause uneven feed or abnormal noise.

2 These cables feature group shielding. Connect the shielding to ground on the NC

side.
