B-65232EN/03 FANUC AC SERVO AMPLIFIER β series 7.INSTALLATION CONDITIONS AND NOTES

- 175 -

7.3.4 Cable Clamp and Shield Processing

- Shield terminal processing

Process the terminal of the shield cover of a signal line

according to Chapter 10, "DETAILS OF CABLE

CONNECTION".

- Shield clamping

The amplifier cables that require shielding should be clamped by

the method shown below. This cable clamp treatment is for both

cable support and proper grounding of the shield. To insure

stable CNC system operation, follow this cable clamp method.

Partially peel out the sheath and expose the shield. Push and

clamp by the plate metal fittings for clamp at the part.

- Installation of a ground plate

The user is to prepare a ground plate and install it according to

Fig. 5.3.2(b) to (e).

Cable

Ground plate

Metal

fittings

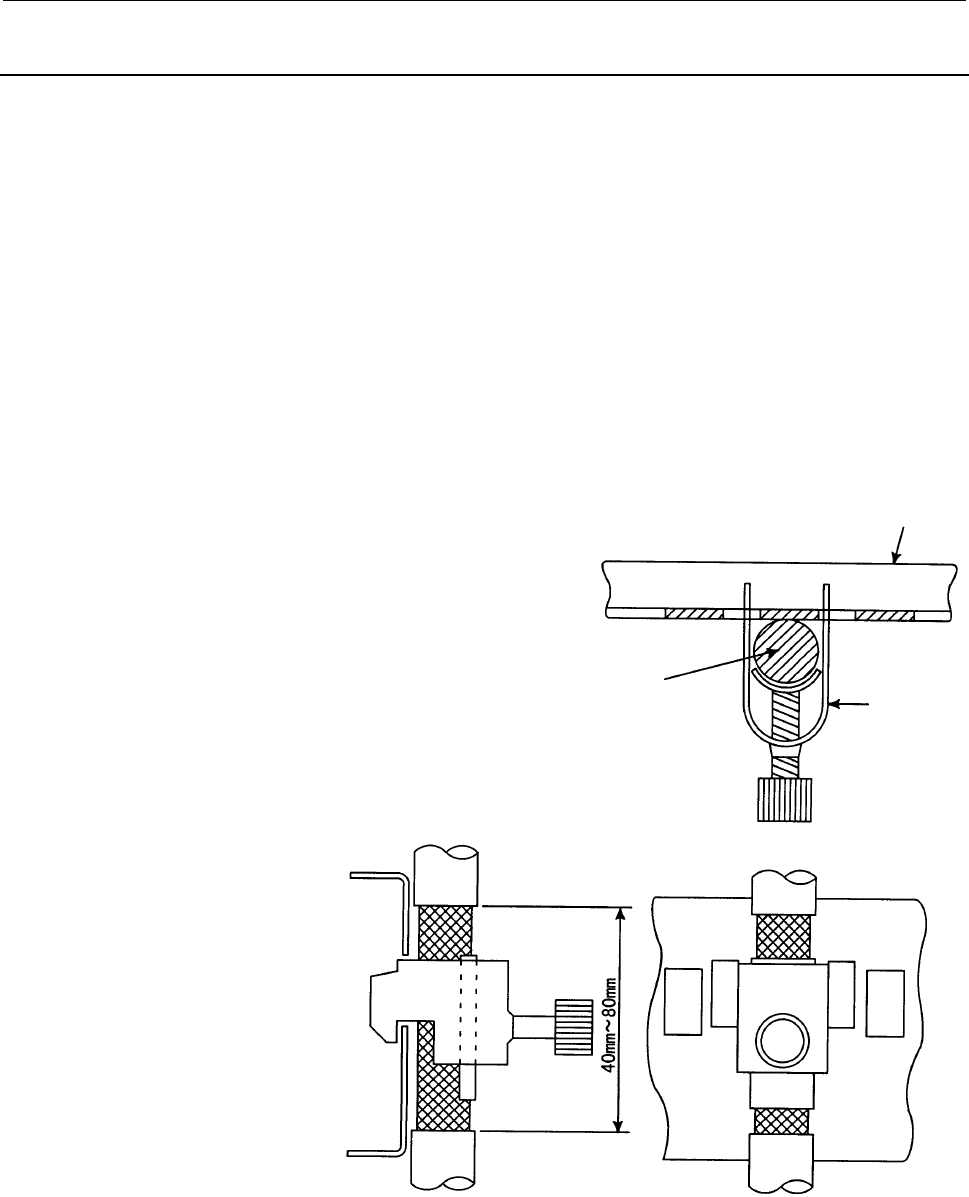

Fig.7.3.4(a) Cable clamp (1)
