B-65232EN/03 CONNECTION 9.FANUC I/O Link CONNECTION (FOR I/O Link INTERFACE ONLY)
- 285 -
9.2 FANUC I/O Link CONNECTION VIA ELECTRIC CABLE

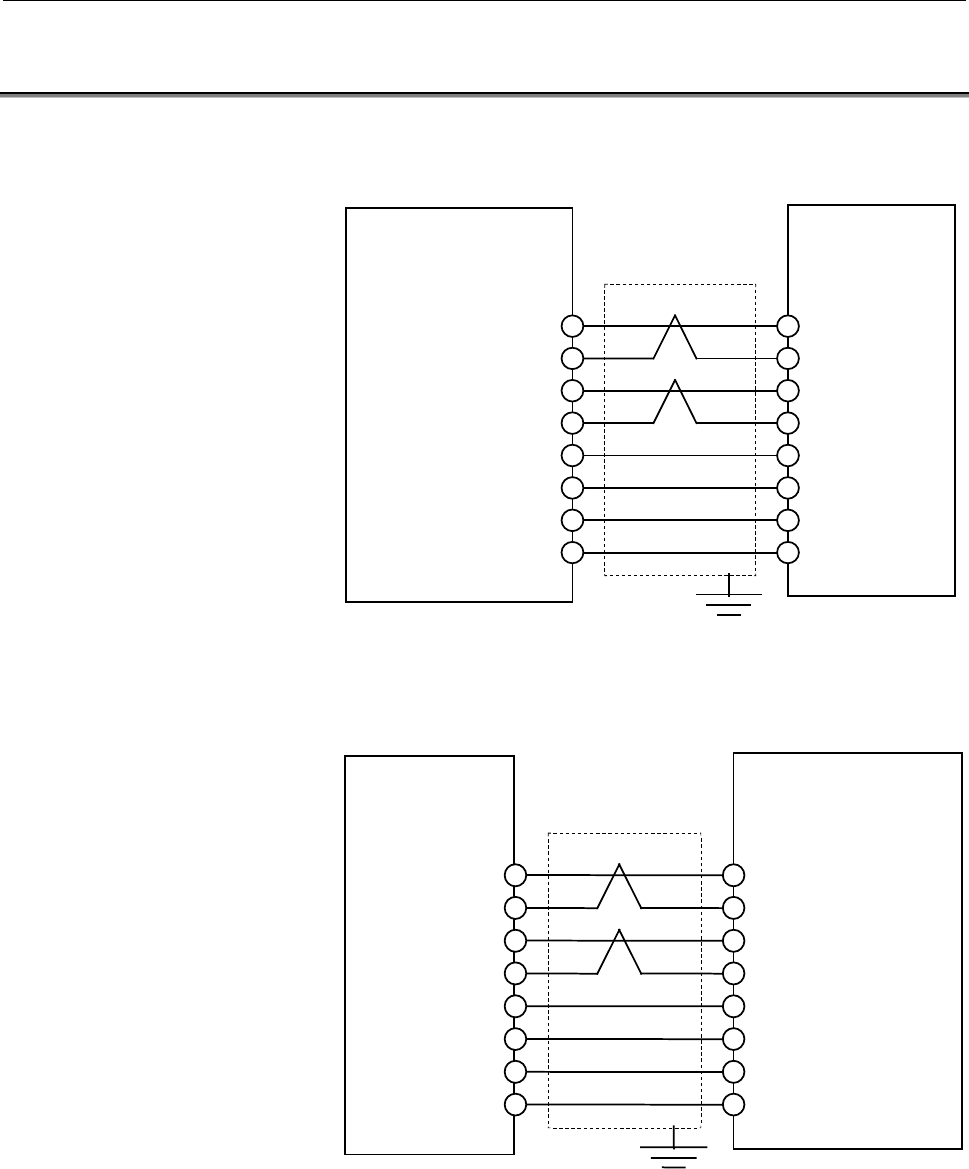

Details of connection of cable K20 (when a connection is made with
the host controller or the slave unit at the previous stage)
Host controller or slave unit at
the previous stage
JD1A1/JD1A
SIN (1)
*SIN (2)
SOUT (3)
*SOUT (4)
0V (11)
0V (12)
0V (13)
0V (14)
JD1B
(3) SOUT
(4) *SOUT
(1) SIN
(2) *SIN
(11) 0V
(12) 0V
(13) 0V
(14) 0V
β series amplifier
Details of connection of cable K20 (when a connection is made with
the slave unit at the next stage)
When there is a slave unit at the next stage, make the following
connection:
β
series amplifier
JD1A
SIN (1)
*SIN (2)
SOUT (3)
*SOUT (4)
0V (11)
0V (12)
0V (13)
0V (14)
JD1B
(3) SOUT
(4) *SOUT
(1) SIN
(2) *SIN
(11) 0V
(12) 0V
(13) 0V
(14) 0V
Slave unit at the next stage
Specifications of a recommended connector and case for cable K20
on the β series amplifier side
Connector : PCR-E20FS (Soldering type) (Honda Communications)
PCR-E20FA (Crimping type)
Case : PCR-V20L
Recommended cable for K20 cable
