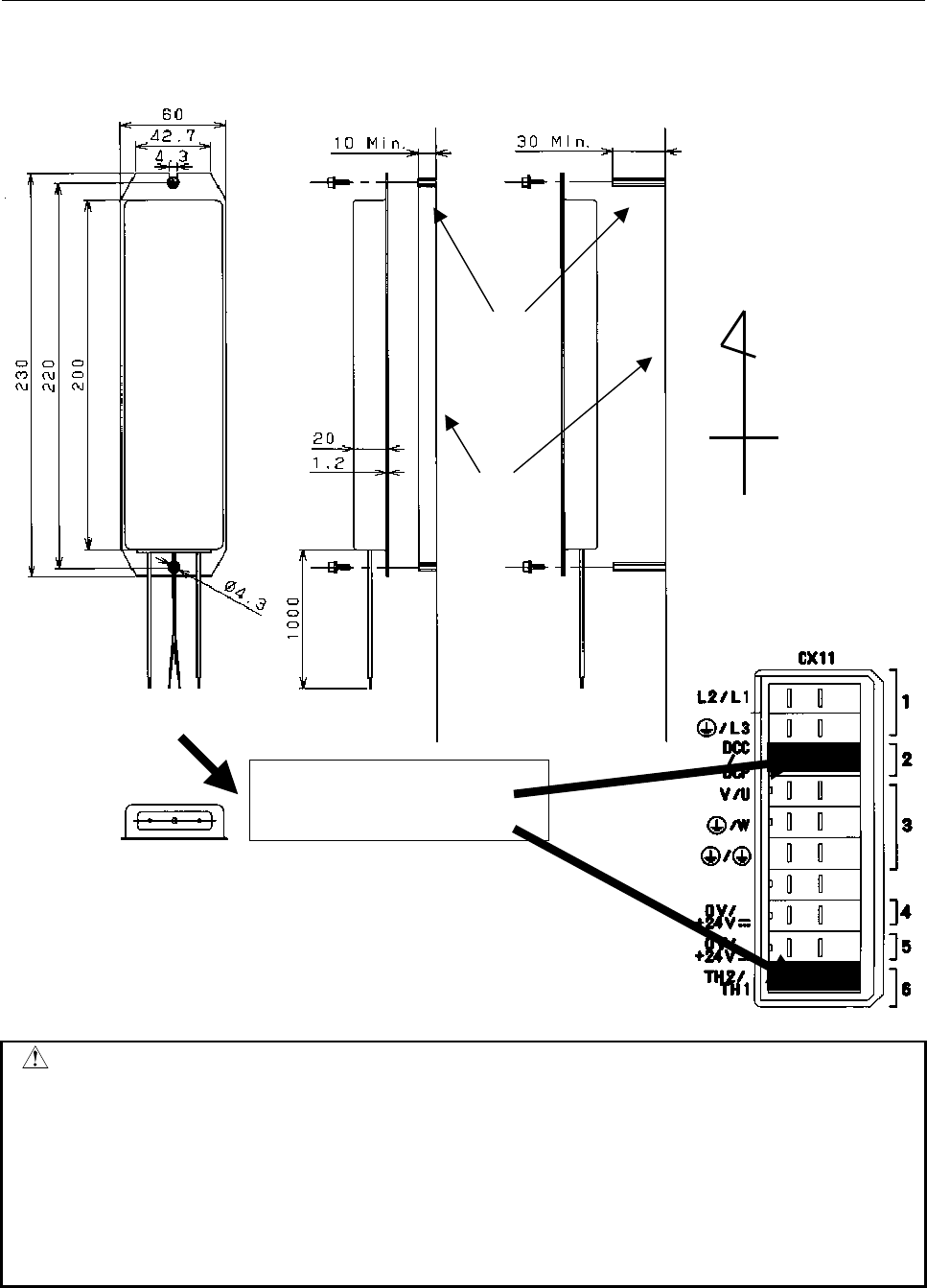

4.SEPARATED REGENERATIVE DISCHARGE UNIT FANUC AC SERVO AMPLIFIER β series B-65232EN/03

- 158 -

A06B-6093-H402

Front view Side view A Side view B

Upper

Wall

Installation direction

* Spacer

A, D: To connector CX11-2

B, C: To connector CX11-6

A B C D

β SVU-12, -20

connector

WARNING

1 A regenerative discharge resistor may be heated to a temperature from 100°C to

200°C. Be careful not to touch the regenerative discharge resistor.

2 If a regenerative resistor needs to be touched for a purpose such as maintenance,

turn off all the power to the amplifier, wait 30 minutes or more, and check that DC

link charge indicator LED (CAUTION CHARGE) is turned off and that the

regenerative resistor is sufficiently cooled.

3 Install a regenerative resistor sufficiently away from a combustible material.

4 Provide a space of 10 mm or more between a regenerative resistor and the wall.
