3.INSTRUCTIONS DESCRIPTIONS FOR FANUC AC SERVO MOTOR β series B-65232EN/03

- 20 -

3.1 DRIVE SHAFT COUPLING

There are four methods for connecting the motor shaft to the ball

screw:

• Direct connection through a flexible coupling

• Direct connection through a rigid coupling

• Connection through gears

• Connection through timing belts

It is important to understand the advantages and disadvantages of each

method,

and select one that is most suitable for the machine.

(1) Direct connection using a flexible coupling

Direct connection by a flexible coupling has the following

advantages over connection using gears:

• A certain misalignment of the angle between the motor

shaft and the ball screw can be compensated.

• Because a flexible coupling connects elements with less

backlash, driving noise from joints can be significantly

suppressed.

However, this method has the following disadvantages:

• The misalignment of the center between the motor shaft and

the ball screw is not permitted (in the case of single

coupling).

• Loose assembly may result in lower rigidity.

When the motor shaft needs to be connected directly to the ball

screw, connecting them using a flexible coupling facilitates

adjustment and installation of the motor.

To use a single coupling, the machine needs to be designed so

that the centers of the motor shaft and the ball screw are aligned.

If it is difficult to align the centers, a double coupling needs to be

employed.

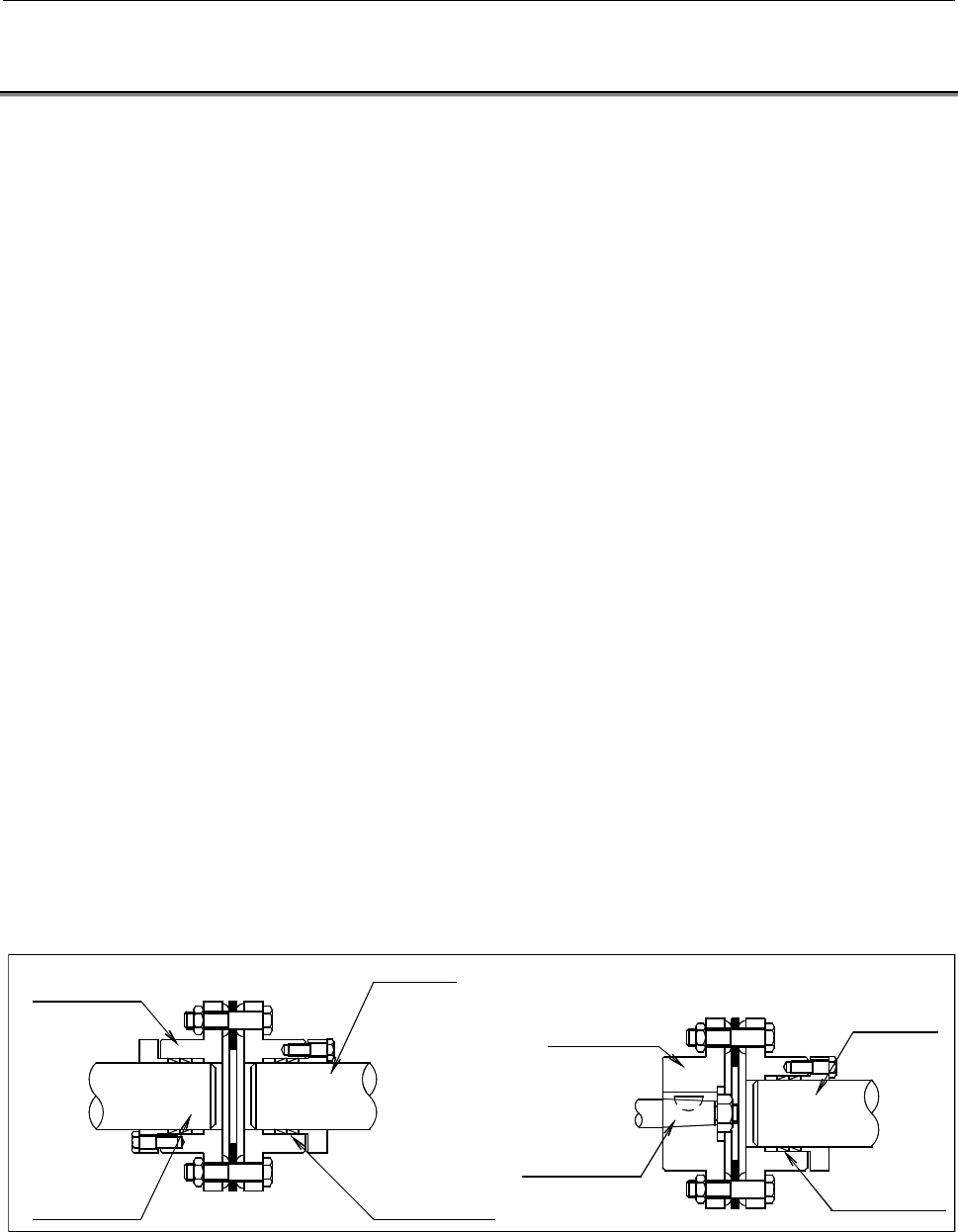

Flexible

Motor shaft

Ball screw

Locking

Flexible

Motor shaft

Ball screw

Locking
