B-65232EN/03 DESCRIPTIONS FOR FANUC AC SERVO MOTOR β series 2.NOTES ON USE

- 17 -

(5) Shaft attachment section requirements

The shaft of the motor has an oil seal to prevent foreign matter

such as oil from entering the motor. Given that motors tend to be

used in a wide range of environments, however, protection

against oil penetration cannot always be perfect. Therefore,

always observe the following precautions when using these

motors.

• When oil bath lubrication is provided for the gear

engagement, for example, the oil level must be below the

lip of the oil seal (where the shaft sticks to the oil seal). Set

the oil level so that oil merely splashes the lip.

• Thus, as the shaft rotates, the oil seal can repel oil. If,

however, pressure is applied continuously while the shaft is

stopped, oil may penetrate the lip.

• When the shaft is always immersed in oil, for example,

under the condition that the motor is to be used with the

shaft oriented vertically a special design is required. For

example, another oil seal could be installed on the machine

side, and a drain provided so that oil penetrating that seal

can drain off.

• When grease is used for lubrication, the oil seal

characteristics are usually lost.

In either case, ensure that no pressure is applied to the oil seal

lip.

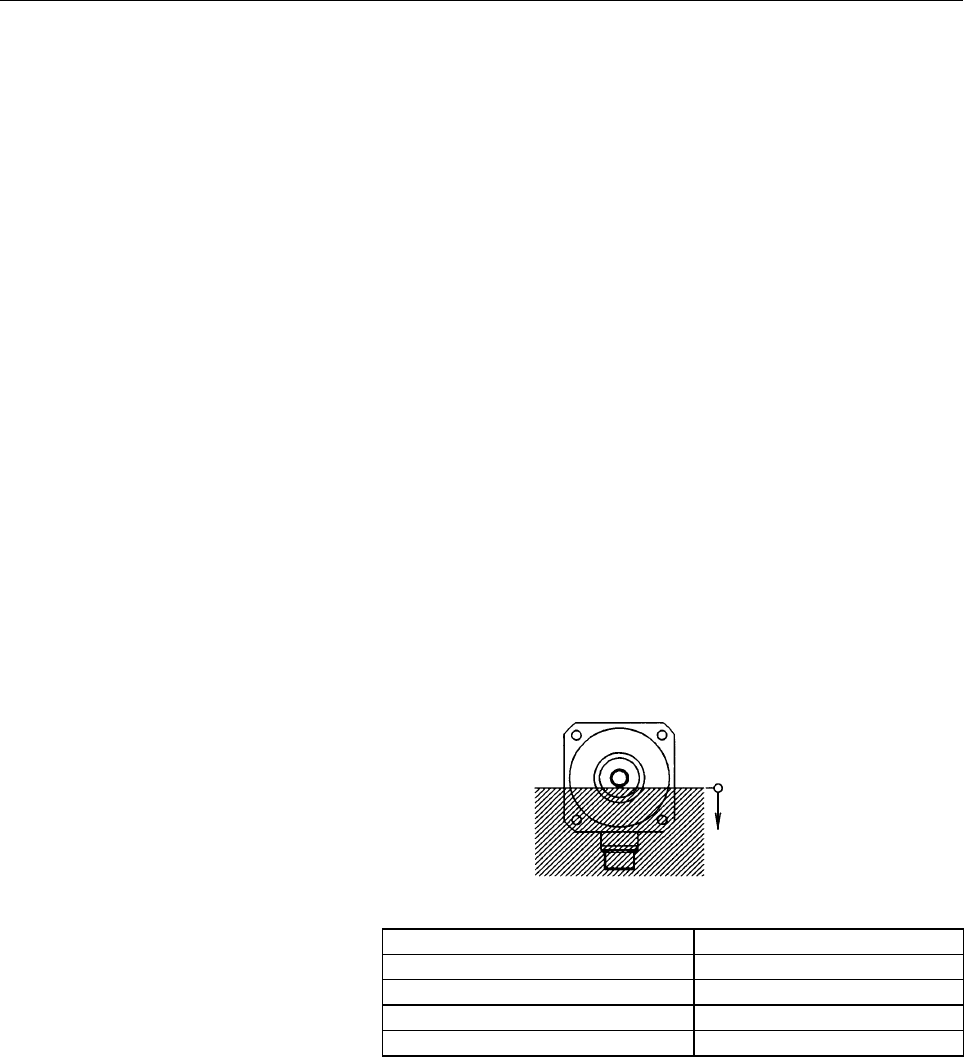

Oil level

The motor shaft oil seal diameter is as shown below.

Motor model Oil seal diameter

βM0.2/4000, βM0.3/4000 φ8mm

βM0.4/4000, βM0.5/4000, βM1/4000 φ14.9mm

β1/3000, β2/3000 φ15mm

β3/3000, β6/2000 φ24mm
