10.CONNECTION OF BUILT-IN DI (FOR I/O Link INTERFACE ONLY) CONNECTION B-65232EN/03

- 292 -

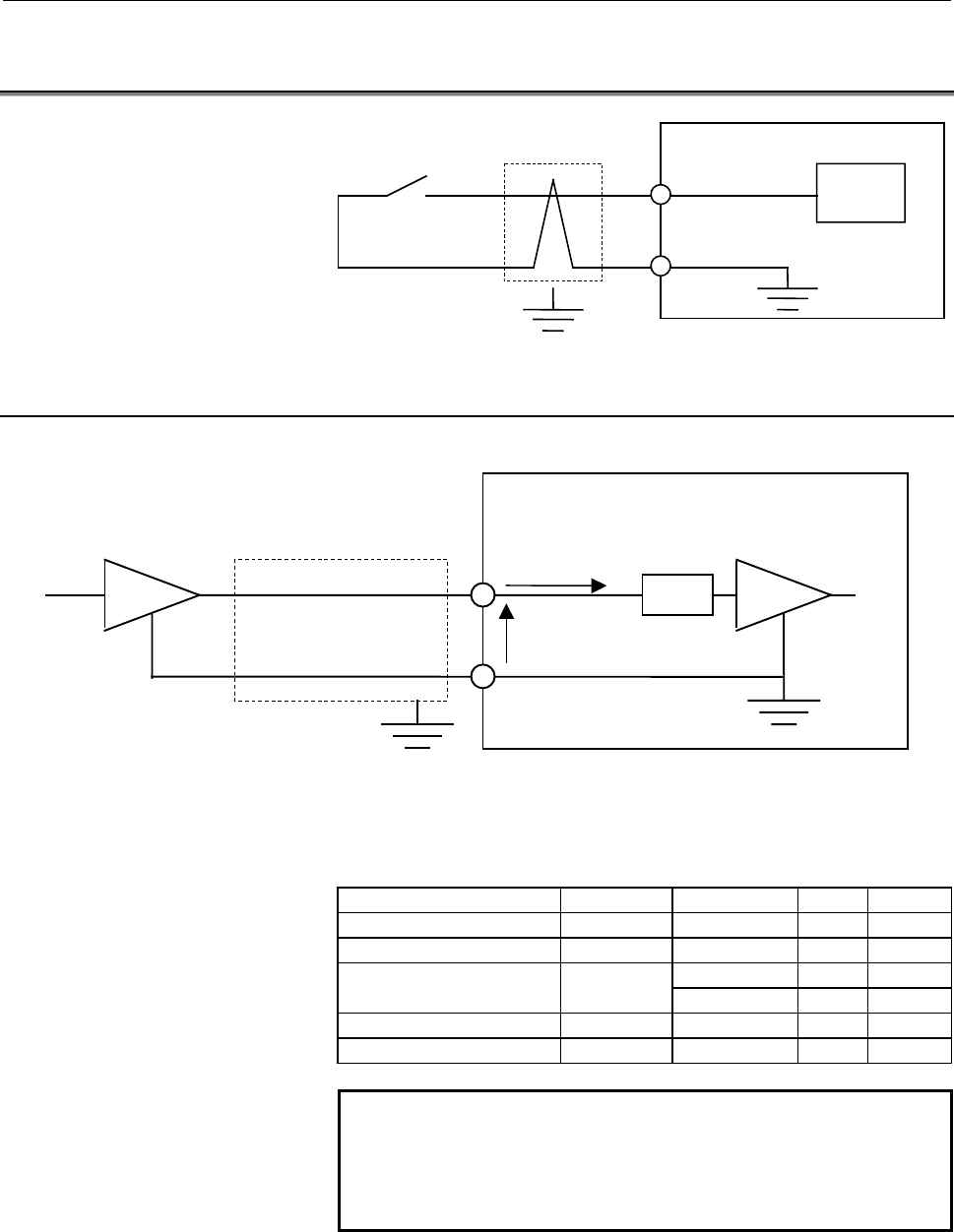

10.4 SKIP SIGNAL INTERFACE

Receiver

β series amplifier

(12, 14, 16)

JA35

(15)

HDI

10.4.1 High-Speed Skip Signal Input Specification

Circuit configuration

VH / VL

IiH / IiL

Driver

Shield

Filter

Receiver

series amplifier

Absolute maximum rating

Input voltage range Vin: -3.6V to +13.6V

Input characteristics

Item Symbol Rating Unit Remarks

High-level input voltage VH 3.6 to 11.6 V

Low-level input voltage VL 0 to 1.0 V

2 max mA Vin=5V

High-level input current IiH

11 max mA Vin=10V

Low-level input current IiL -8.0 max mA Vin=0V

Pulse width of input signal 20 min µs

NOTE

For IiH and IiL, the plus algebraic sign indicates the

current that flows into the receiver, while the minus

algebraic sign indicates the current that flows out

from the receiver.
