4.2 K2 CABLE CONNECTION
For β
ββ
βM0.2/4000, β
ββ
βM0.3/4000
Connector on the cable side
Housing
1-1318118-6 (D-2100D 12 poles)
Contact
1318107-1 (D-2 receptacle M)
Manufacture : tyco Electronics AMP
Connector on the cable side
Connector
FI40-2015S
Connector cover
FI-20-CV
Manufacture : HIROSE ELECTRIC CO., LTD

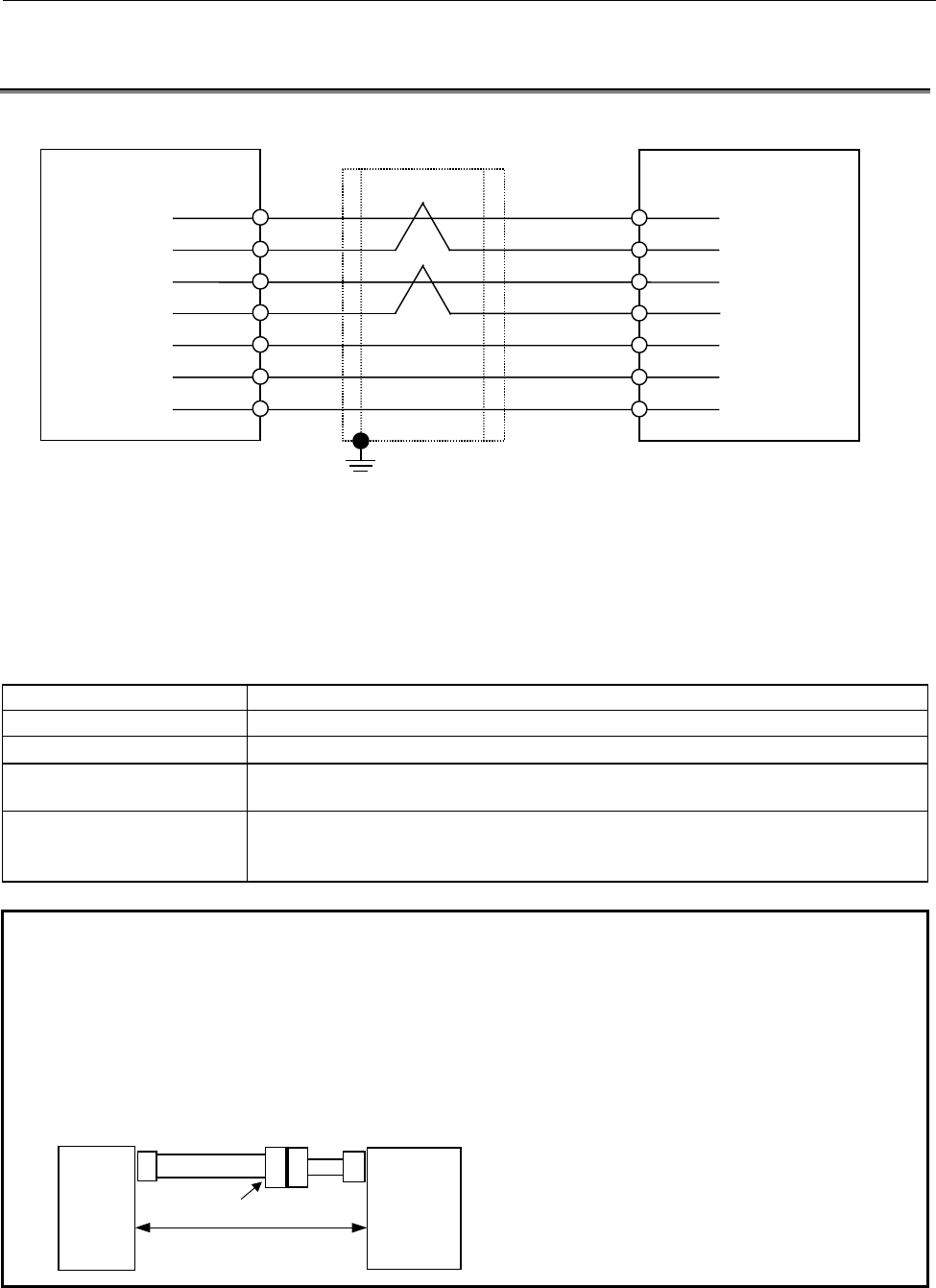

β series servo
amplifier
(2)
(5)
(6)
(1)
(12, 14)
(7)
(A4)
(B4)
(A3)
(B3)
(A2, B2)
(A1, B1)
(A5)
(9, 20)
SD
*SD
REQ
*REQ
5V
0V
6V
Servo motor
βM0.2, βM0.3
The specifications of a recommended wire are indicated below.
Cable length 20m or lower
5V, 0V 0.5 mm
2
(AWG21) × 2 (strand structure 20/0.18, coating outer diameter φ0.88 to φ1.5)
6V 0.5 mm
2
(AWG21) (strand structure 20/0.18, coating outer diameter φ0.88 to φ1.5)
SD, *SD, REQ, *REQ
0.18 mm
2
(AWG25) or more. Twisted pair wire
(strand structure 7/0.18, coating outer diameter φ0.88 to φ1.5)
Recommended wire
0.5 mm
2
× 5 + 0.18 mm
2
× 2 pairs
Hitachi Cable, Ltd. UL20276-SB(0) 5X21AWG+2PX25AWG
(A66L-0001-0461) (For a fixed cable)
NOTE
1 When the user prepares a cable, the user needs to ensure that the sum (both ways)
of 5V and 0V wire resistance values is 0.8Ω or less.
2 The maximum applicable wire diameter for the motor-side cable connector is 0.5
mm
2
(when the crimping tool (1463475-1) is used) or 0.85 mm
2
(when the crimping
tool (1276654-1) is used). When a thicker wire or cable needs to be used, make a
relay connection as shown below.
Example: When a maximum applicable wire diameter is exceeded
Servo moto
r
Servo am
p
lifie
r
Relay connector, etc.
The sum (both ways) of 5V
and 0V wire resistance
values is 0.8Ω or less.
