9.OUTLINE DRAWINGS AND MAINTENANCE CLEARANCES FANUC AC SERVO AMPLIFIER β series B-65232EN/03

- 204 -

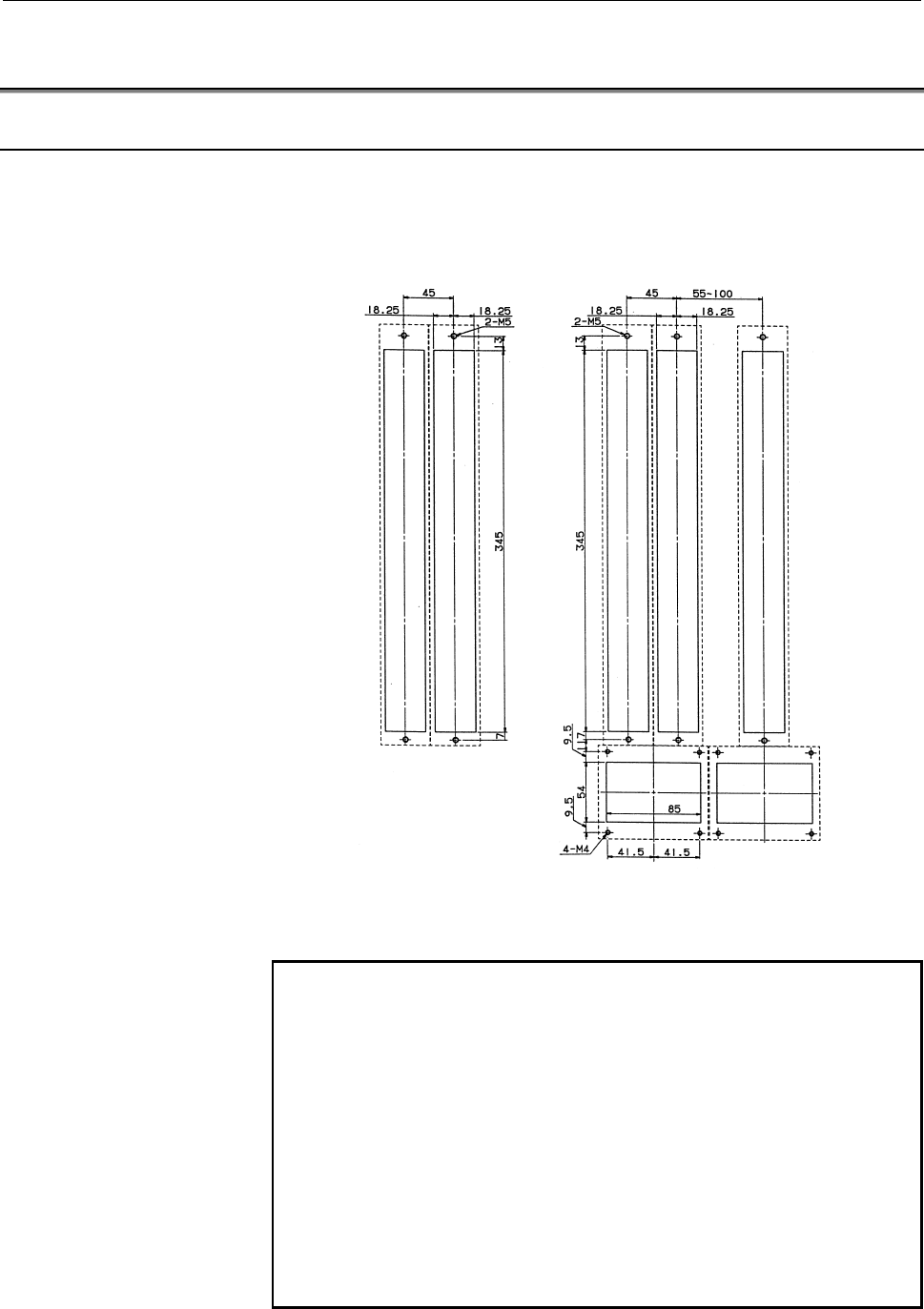

9.2 Panel Cut-out Drawings

9.2.1 SVU40, SVU-80

The descriptions of this subsection apply to all of the FSSB interface,

I/O Link interface, and PWM interface.

Natural air cooling type Forced air cooling type

When two units of

natural air cooling type

are installed in parallel

When three units of forced air cooling type

are installed in parallel

(The fan adapter (A06B-6078-K002) is used.)

NOTE

1 The width of the module (A06B-6078-K002) is 100mm.

If two modules are used, the distance between modules

is 100mm or more.

2 Attach packings (acrylonitrile-butadiene rubber, or soft

NBR) to prevent the ingress of oil and dust.

3 Reinforce the right and left and of each panel cut-out in

the power magnetics cabinet, for example with L-angle

steel, to ensure reliable contact with the amplifier

modules.

4 When installing a battery (by connection method 2),

provide a space of 40 mm horizontally as a maintenance

area for battery replacement. See Section 9.3.
