11.EXTERNAL PULSE INPUT (ONLY FOR I/O Link INTERFACE) CONNECTION B-65232EN/03

- 294 -

11.1 CONNECTION WHEN AN A/B-PHASE PULSE

GENERATOR OF DIFFERENTIAL TYPE IS USED

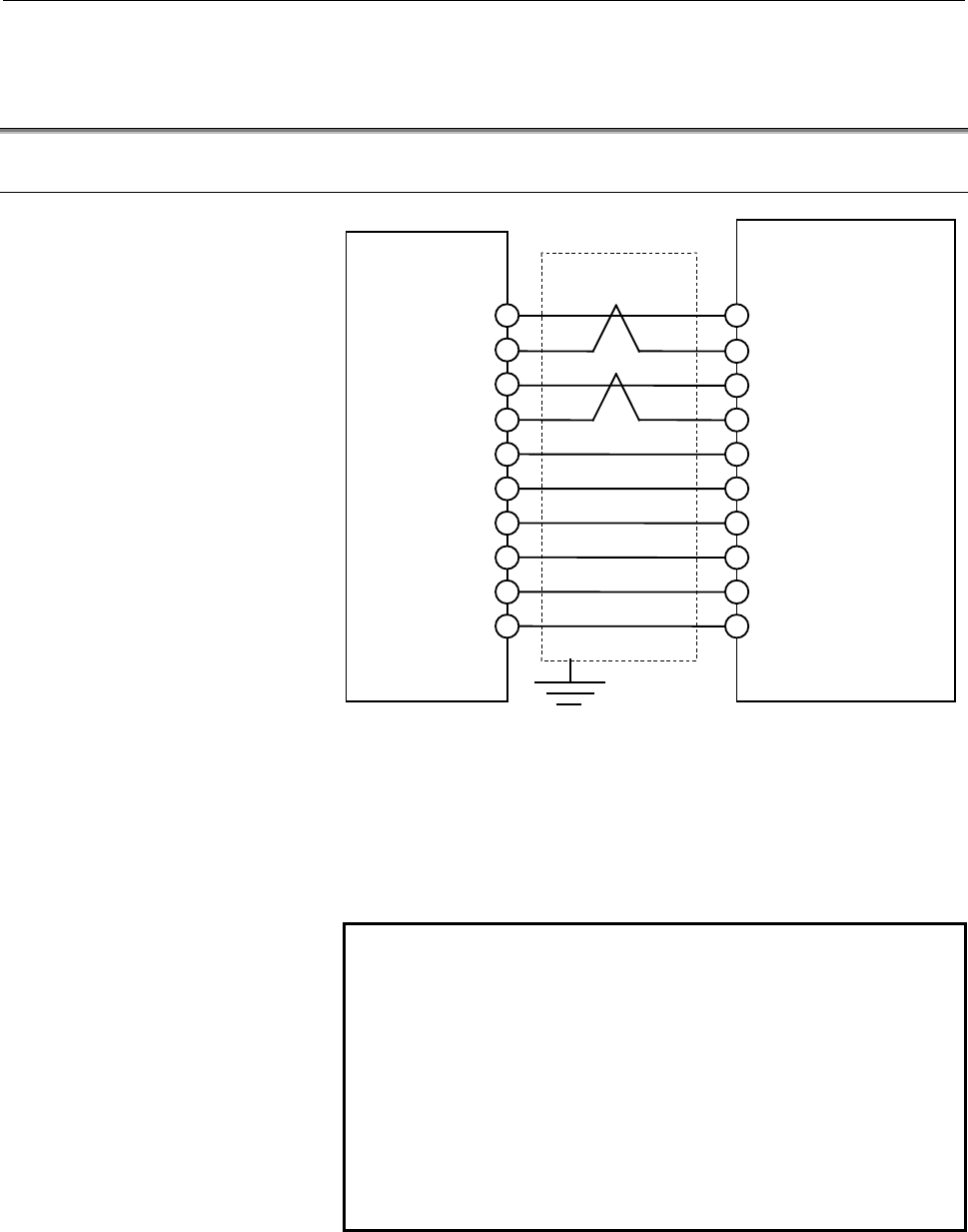

11.1.1 K22 Cable Connection

PA (1) PA

*PA (2) *PA

PB (3) PB

*PB (4) *PB

+5V (9) +5V

+5V (18) +5V

+5V (20) +5V

0V (12) 0V

0V (14) 0V

0V (16) 0V

β series amplifier

JA34

K22

External pulse generator

Connector : FI40-2015S (Hirose Electric)

Case : FI-20-CV (Hirose Electric)

Cable specification : Conductor 20/0.18×6, 7/0.18×3 pairs

Recommended cable : A66L-0001-0286(#20AWG×6 + #24AWG×6 +

#24AWG×3 pairs)

NOTE

1 The servo unit can supply power to a unit requiring

up to +5V, 0.35A. In this case, consider the power

supply voltage drop across the cable resistance.

2 Use the same twisted wire pair for the PA and *PA

signals. Also use the same twisted wire pair for the

PB and *PB signals.

3 Do not make any connection to the pins other than

those shown above. Do not connect an unused

conductor of the cable.

4 Maximum wire length: 50m
