Servo Motor Beta Series Descriptions Page 321

Descriptions
B-65232EN/03 CONNECTION 10.CONNECTION OF BUILT-IN DI (FOR I/O Link INTERFACE ONLY)
- 291 -

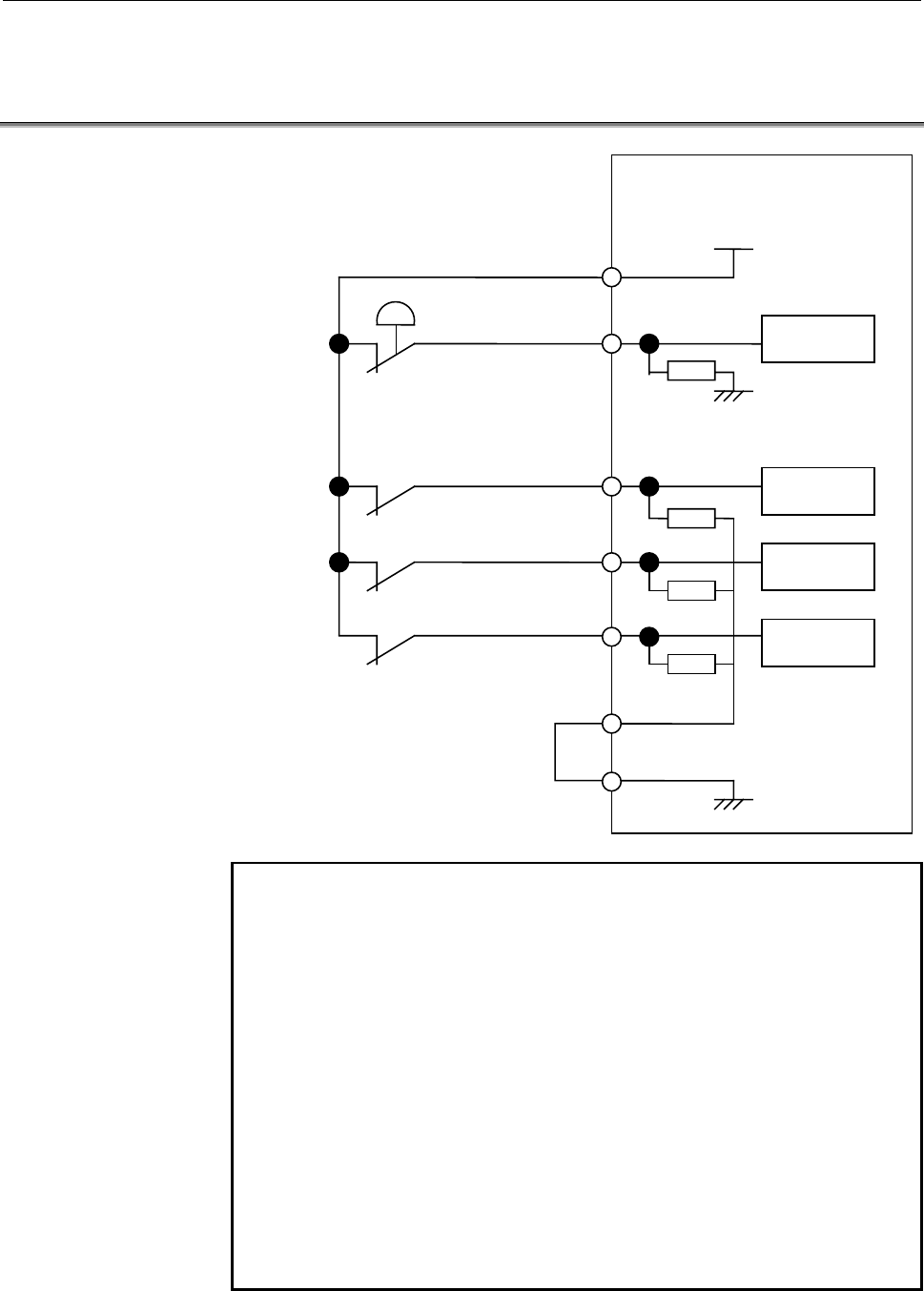

10.3 SIGNAL CONNECTION WITH THE POWER MAGNETICS
CABINET
Filter and
receiver
Filter and
receiver
Filter and
receiver
Filter and
receiver
Interlock signal input
(Deceleration signal input for reference
position return)
β
series servo amplifier
+24V
JA35
(10),(19)
(5)*ESP
Emergency stop
signal input
Positive overtravel
signal input
*+OT (7)
*+OT
Negative overtravel
signal input
(8)
+24V
(6)*RILK
DIC (11)
0V (12, 14, 16)
NOTE
1 Use cable (with a shield on the outside) for Cable K21.
2 Use wire having a size of 7/0.18 (0.18mm
2
) for 0V, +24V,
and DIC.
3 Do not make any connection to the pins other than those
shown above. Do not connect an unused conductor of the
cable.
4 The above diagram is an example of a configuration with 24V
common. For a configuration with 0V common, connect DIC
(JA35-11) to +24V (JA35-10, 19), and the stage ahead of
each switch to 0V (JA35-12, 14, 16). Note that only the 0V
common configuration can be used for the emergency stop
signal (JA35-5, *ESP).
5 Within 100 ms after emergency stop cancellation, turn on the
external magnetic contactor inserted into the power input of
the β series servo motor amplifier (with the I/O Link option).
