Servo Motor Beta Series Descriptions Page 251

Descriptions

Page of 337

/ 337

B-65232EN/03 CONNECTION 2.CONNECTOR LOCATIONS FOR β SERIES AMPLIFIER

- 221 -

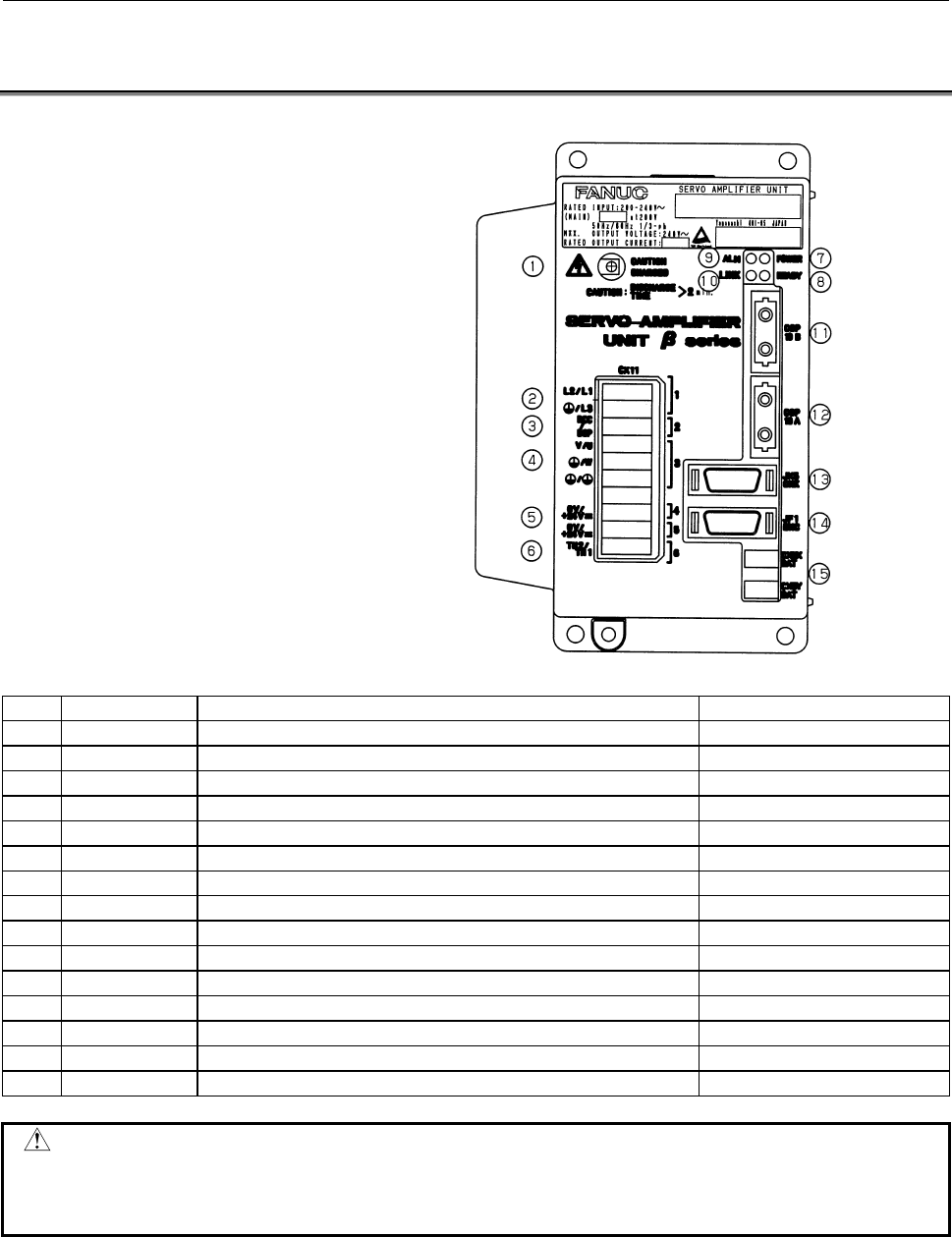

2.1 FSSB INTERFACE (SVU4, SVU-12, SVU-20)

Name Description Remarks

<1> DC link charge indicator LED (Warning 1)

<2> CX11-1 Main power input connector

<3> CX11-2 Connector for regenerative resistor (DC link)

<4> CX11-3 Motor power line connector

<5> CX11-4,5 24V power input/output connector

<6> CX11-6 Connector for regenerative resistor (for overheat) (Warning 2)

<7> POWER Control power status indicator LED

<8> READY Activation status indicator LED

<9> ALM Alarm status indicator LED

<10> LINK FSSB communication status indicator LED

<11> COP10B FSSB communication input connector

<12> COP10A FSSB communication output connector

<13> JX5 Connector for the ESP signal and signal checking

<14> JF1 Connector for PULSECODER

<15> CX5X,CX5Y Connector for ABS Pulsecoder battery

WARNING

1 It is dangerous to touch any cables and components inside the module while this

LED is lit. Never touch components or cables while this LED is lit.

2 Refer to Section 4.7 for details.
