8.CAUTIONS FOR SAFETY STANDARDS RELATED TO AMPLIFIER INSTALLATION FANUC AC SERVO AMPLIFIER β series B-65232EN/03

- 192 -

8.7.4 SVU-40/80 (I/O Link Interface)

CAUTION

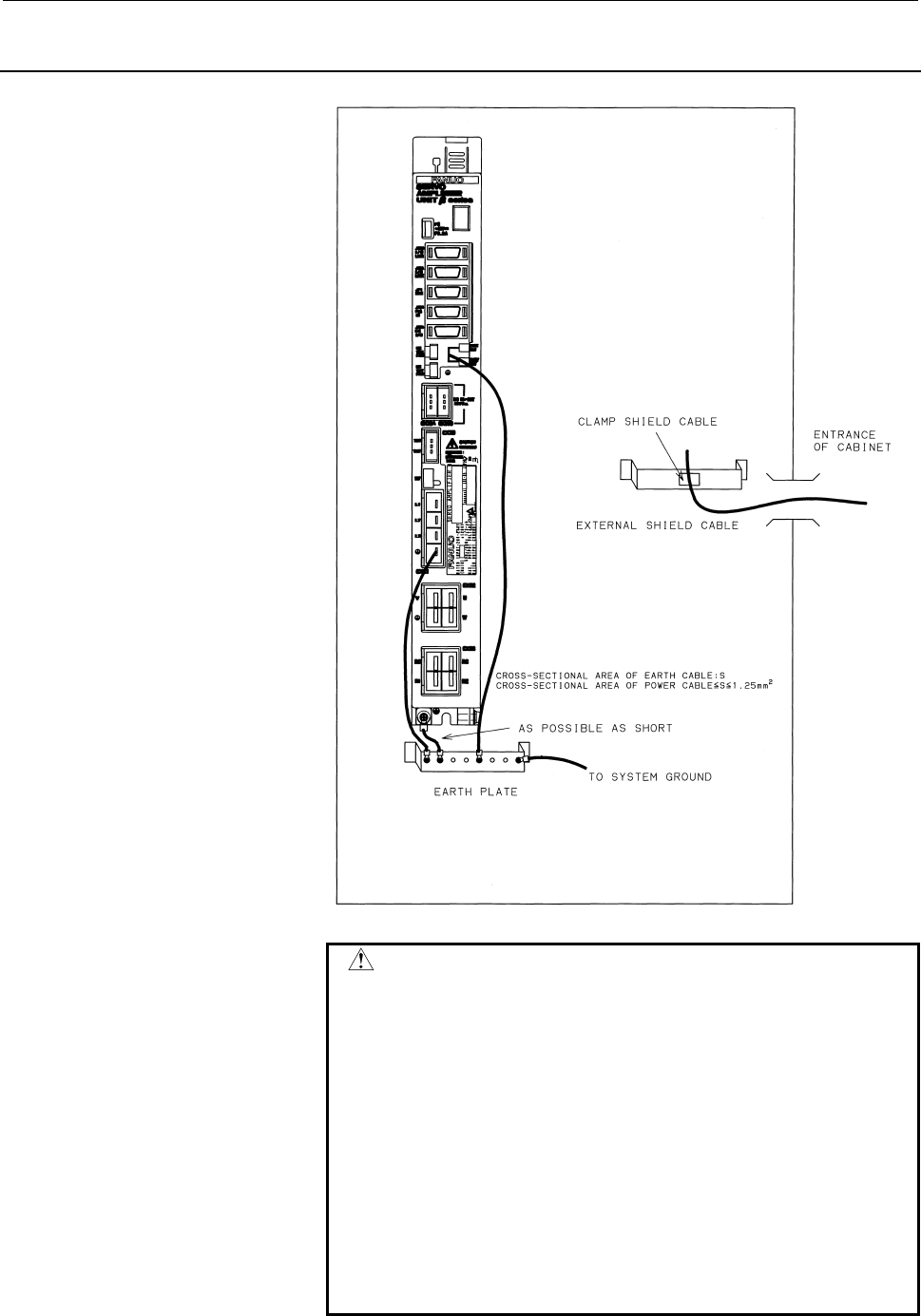

1 A shield cable from the outside of the power

magnetics cabinet must be connected using a

grounding clamp to the ground plate located very

close to the inlet of the cabinet. The purpose of this

processing is to prevent inter-cabinet noise from

being radiated to the outside.

2 Ground the servo unit, using Faston terminals

(A65L-0001-0148/2) in the servo unit and 2mm

larger twisted wires 100 to 300 mm long.

Otherwise, the servo unit becomes less immune to

noise.

Be sure to connect the frame ground terminal of the

servo unit to a grounding terminal in the cabinet.
