2.14 Scaling, Coordinate system rotation, Programmable mirror image
2.14.1 Scaling
(1) All axis scaling
•
••
•
Outline
A programmed figure can be magnified or reduced (scaling).
Please set “1” in parameter No.8485#0(G51) and No.5401#0(SCLx) to make this function
effective.
This function can use only in the HPCC mode.
This function is an option.
•
••
•
Format
G05 P10000 ; : Starting of HPCC mode
G51.X_ Y_ Z_ P_ ; : Starting of scaling mode
...
G50 ... ; : Ending of scaling mode
G05 P0 ; : Ending of HPCC mode
Each code has the following meaning.
G51 : Scaling start
X_ Y_ Z_ : Absolute command for center coordinate value of scaling
P_ : Scaling magnification
G50 : Scaling cancel
•
••
•
Scaling center
The point instructed by X, Y, and Z of the same to G51 block becomes the center of scaling.
When X, Y, and Z are omitted, the position of the instruction in G51 becomes the center of
scaling.
•
••
•
Scaling magnification
Movement amount is scaled by the magnification instructed by P of the block of G51.
If P is not instructed, the magnification set by parameter No.5411 is used.
The magnification which can be instructed is as follows :
0.00001 -- 9.99999 or 0.001 -- 999.999
Y
X
P
4
P
3
P
1
P
2
P
4
’
P
3
’
P
1
’
P
2
’
P
1
--P
4
:

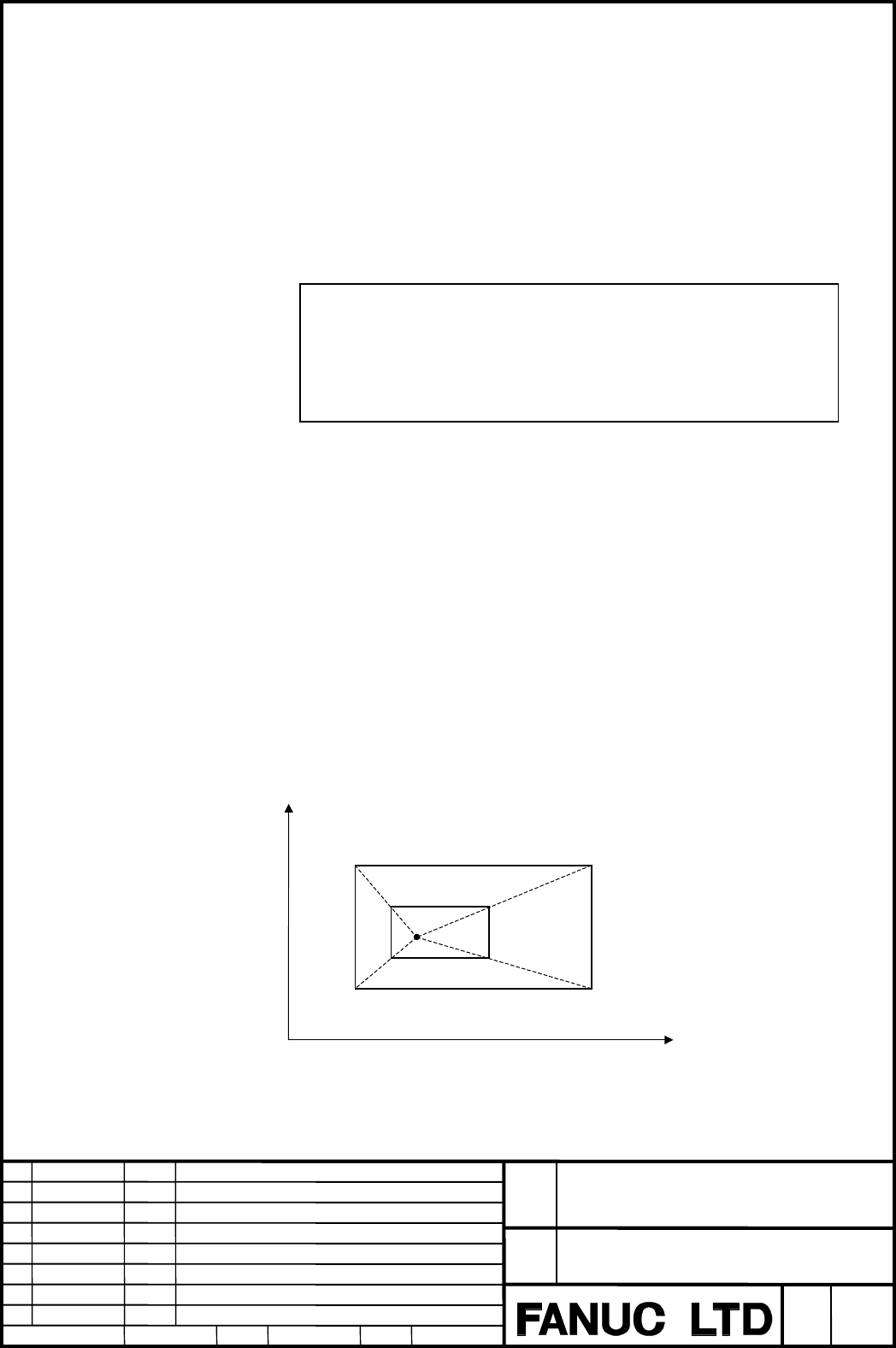

Programmed figure
P
1
’--P
4
’
:
Scaled figure
Po
:
Scaling center
Po
