FANUC Series 16
i
/18
i
-TA/TB
Specifications of High-Precision Contour
Control forComplex Lathe
2001.02.14 A.Fukumoto
02 2001.10.04
Description of Cs axis and rotary axis are added.
•
••
•
When the feed hold function is used during acceleration
When the feed hold function is used during acceleration, control is performed as described
below.
(1) While applying constant or increasing acceleration
Starting at the point where the feed hold function is specified, the acceleration is gradually
reduced to 0. Then, the feedrate for the tool is gradually reduced to 0. Thus, the feed hold
function does not always immediately reduce the feedrate of the tool; it instead may
sometimes increase the feedrate for a brief instant before reducing the feedrate.
(2)
While applying decreasing acceleration
First, the acceleration is gradually reduced to 0. Then, the feedrate is gradually reduced to
0.
(2) Deceleration
The tool is decelerated to the feedrate specified for a block, starting at the previous block.
The tool can be decelerated over multiple blocks.

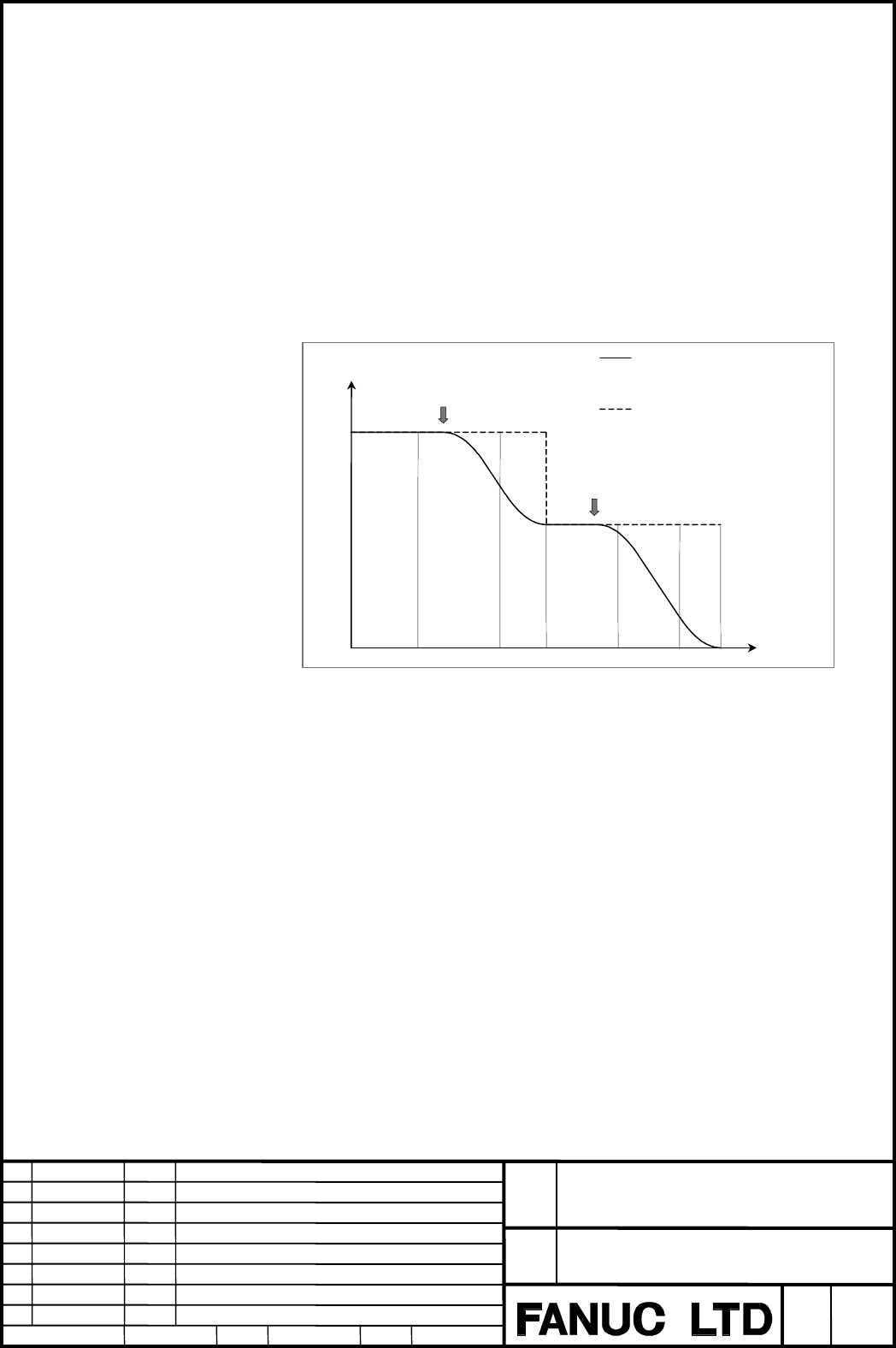

Feedrate
Time
Deceleration start point
Deceleration start point
Specified feedrate
Feedrate control by look–ahead
bell–shaped acceleration/ dec-
eleration before interpolation
