FANUC Series 16
i
/18
i
-TA/TB
Specifications of High-Precision Contour
Control forComplex Lathe
2001.02.14 A.Fukumoto
02 2001.10.04
Description of Cs axis and rotary axis are added.
•
••
•
Relationship with other functions
Cutter compensation C
It is possible to specify G68 and G69 in cutter compensation mode. The rotation plane must
coincide with the plane of cutter compensation.
Example) N01 G01 G90 X0 Y0 ;
N02 G42 X1000 Y1000 F1000 D01 ;
N03 G68 R-30000 ;
N04 G91 X2000 ;
N05 G03 Y1000 I-1000 J500 ;
N06 G01 X-2000 ;
N07 Y-1000 ;
N08 G69 ;
N09 G40 G90 X0 Y0 ;
Scaling
If a coordinate system rotation command is executed in the scaling mode (G51 mode), the
coordinate value (α, β) of the rotation center will also be scaled, but not the rotation angle
(R). When a move command is issued, the scaling is applied first and then the coordinates are
rotated and instruct in the programming according to the following procedures.
(Exapmle 1) G51 …… ; (Scaling start)
G68 …… ; (Coordinate system rotation start)
:
:
G69 ; (Coordinate system rotation end)
G50 ; (Scaling end)
A coordinate system rotation command (G68) should not be issued in cutter compensation
mode (G41, G42) on scaling mode (G51). The coordinate system rotation command should
always be specified prior to setting the cutter compensation mode.
(Exapmle 1) G51 …… ; (Scaling start)
G68 …… ; (Coordinate system rotation start)
:
:
G41 ; (Cutter compensation)
:

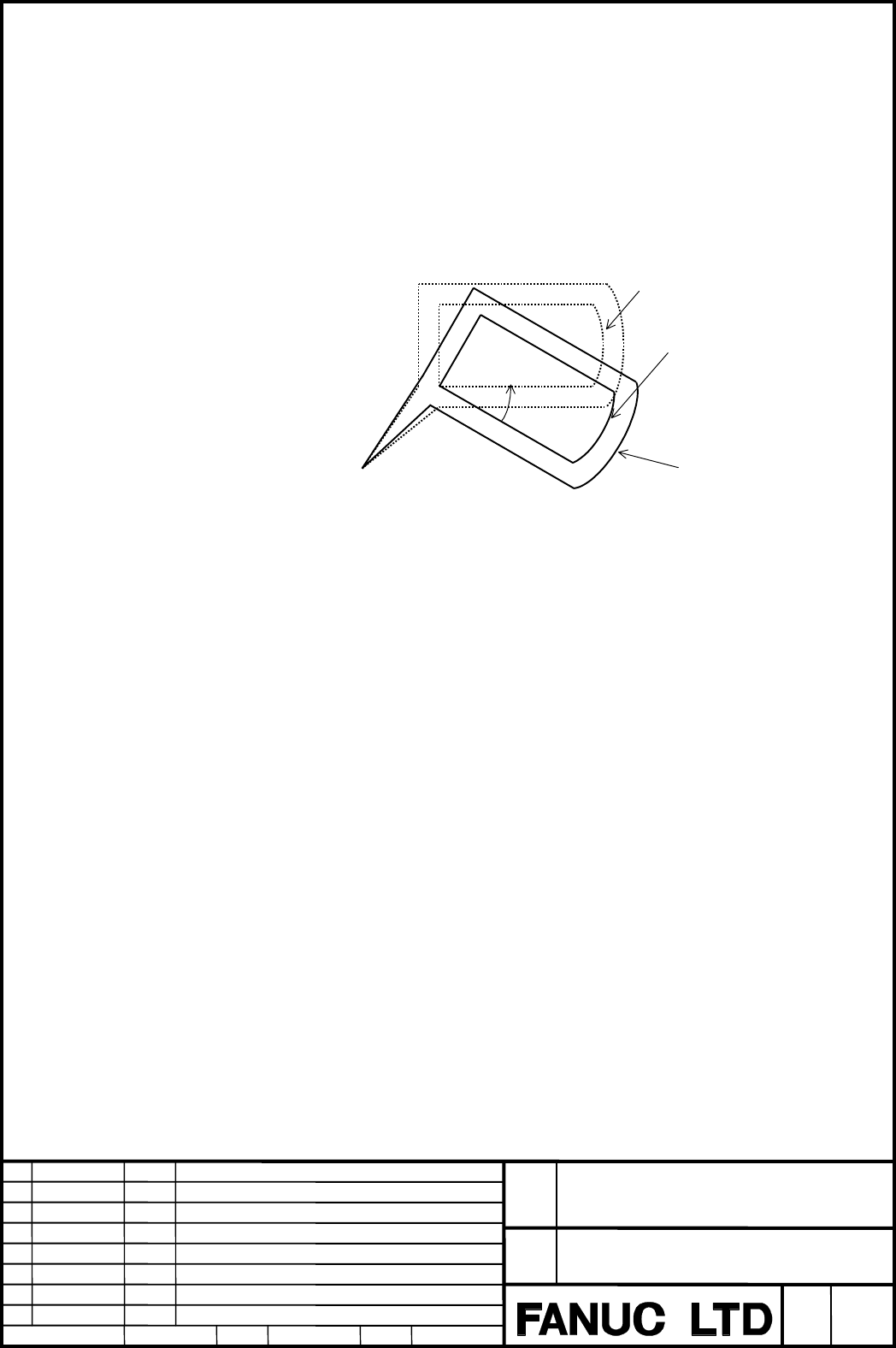

(0,0)
30°
Programmed shape before coordinate
system rotation
Programmed shape after
coordinate system rotation
Tool path
