Description of Cs axis and rotary axis are added.
Positioning or auxiliary function and cutter compensation C
When the G00 of Type-A or the auxiliary function is executed in the cutter compensation
mode, the offset vector made in the block before of that is held.
Exapmle 1 ) When the undermentioned program is executed, the starting point of N6 is
decided by the vector made with N3 and N4.
O0001 ;
G50 X-10. Y-20. ;
G05 P10000 ;
N1 G01 G42 X0 D1 F1000 ;
N2 X20. ;
N3 X40. Y0 ;
N4 X60. Y20. ;
N5 M01 ;
N6 X80. ;
N7 X90. Y-20. ;
N8 G40 Y-50. ;
G05 P0 ;
Example 2 ) When the undermentioned program is executed, the starting point of N5 is
decided by the vector made with N3 and N4.
If (SG0) of parameter No.8403#7 is set in one, the intersection vector of N4 and
N5 is correctly obtained.
O0001 ;
G50 X-10. Y-20. ;
G05 P10000 ;
N1 G01 G42 X0 D1 F1000 ;
N2 X20. ;
N3 X40. Y0 ;
N4 X60. Y20. ;
N5 G00 X80. ;
N6 X90. Y-20. ;
N7 G40 Y-50. ;
G05 P0 ;

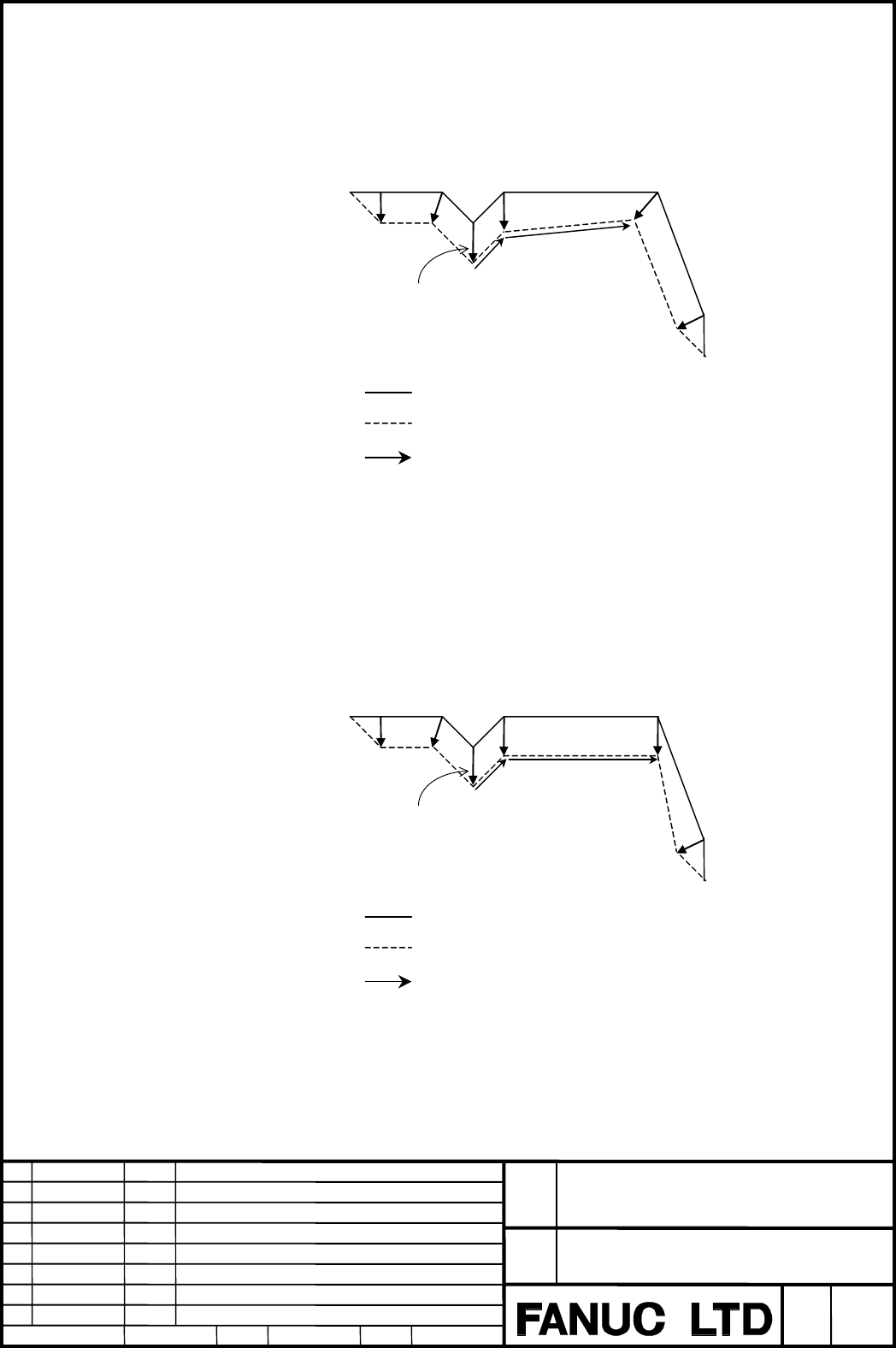

This vector is used as the
vector between N4 and N6.
N1 N2 N6
N3 N4
N5
N7
N8
Programmed path
Tool path
An incorrect offset
value is used in this
range.
N1 N2 N5
N3 N4
N6
N7
This vector is used as the vector
between N4 and N5, and N5 and N6.
Programmed path
Tool path
An incorrect offset
value is used in this
range.
