2.17 Automatic feedrate control function
2.17.1 Outline
This function reads several tens of blocks ahead to exercise automatic feedrate control in
HPCC mode.
A feedrate is determined on the basis of the conditions listed below. If a specified feedrate
exceeds a calculated feedrate, acceleration/deceleration before interpolation is used so that the
calculated feedrate can be established.
(1) Feedrate change and specified allowable feedrate difference along each axis at a corner
(2) Anticipated acceleration and specified allowable acceleration along each axis
(3) Cutting load change anticipated from the direction of motion along the Z–axis
Specified tool path
Tool path when fee-drate
control is not used
Tool path when fee-drate
control is used
Machining error reduced due to
deceleration based on an allowable
acceleration
Machining error reduced
due to deceleration
based on an allowable
feedrate difference

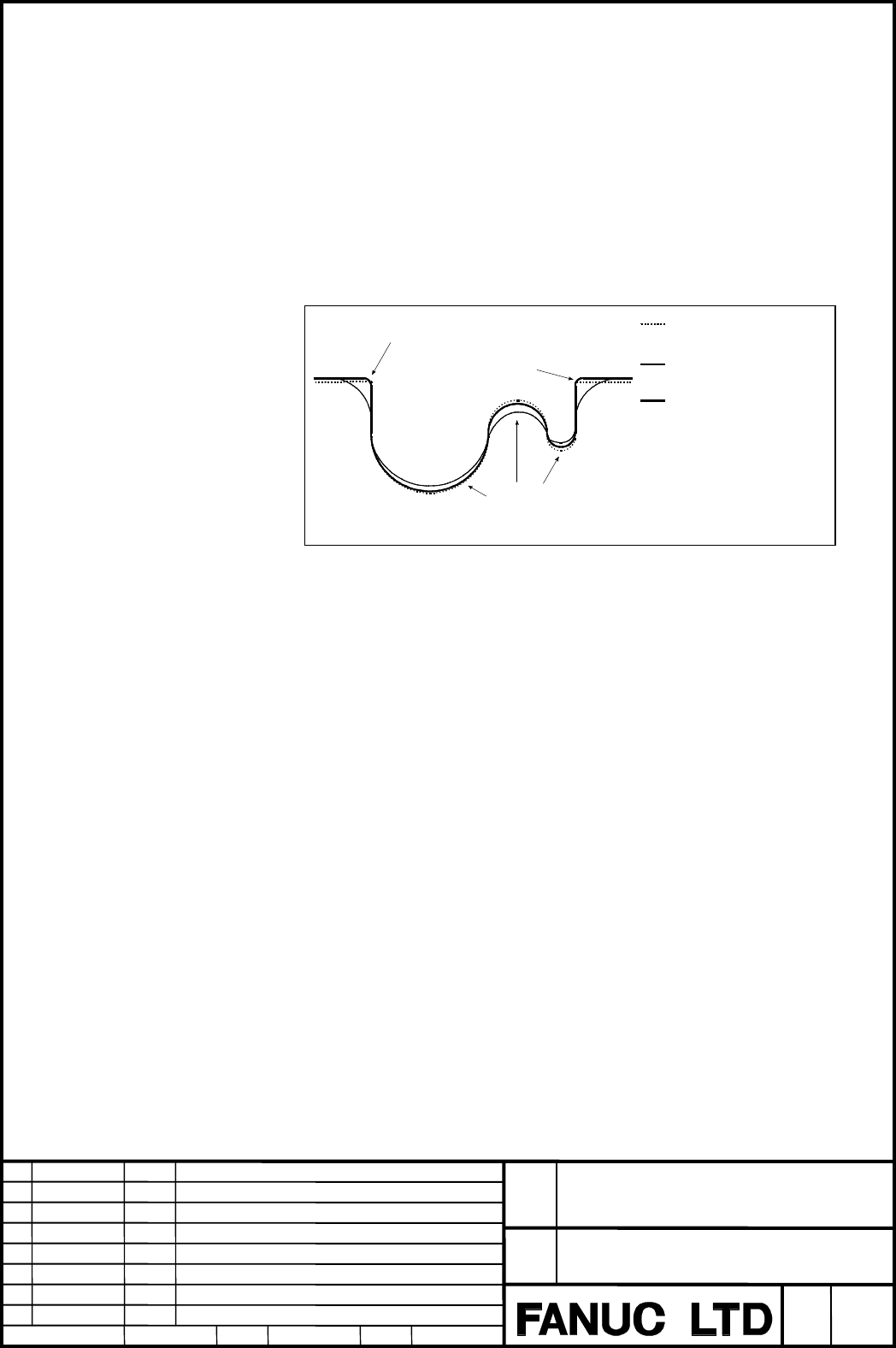

Fig. 2.17.1 (a)
To use this function, set bit 0 (USE) of parameter No. 8451 to 1, and set the following
parameters:
Parameter No. 8410: Allowable feedrate difference used for feedrate determination,
based on a corner feedrate difference
Parameter No. 8475, bit 2 (BIP) = 1: Enables deceleration at a corner.
Parameter No. 8470: Parameter specifying an allowable acceleration for feedrate
determination, based on acceleration
Parameter No. 8459, bit 1 (CTY) = 1, bit 0 (CDC) = 0
Parameter No. 8464: Initial feedrate for automatic feedrate control
Parameter No. 8465: Maximum allowable feedrate for automatic fee-drate control
For details, see the description of each parameter.
