(3) Notes concerning scaling and each axis scaling
•
••
•
Instruction form
Specify G51 in a separate block. Please cancel with G50 when scaling becomes unnecessary.
•
••
•
Position display
The position display represents the coordinate value after scaling.
•
••
•
Magnification
(1) If a parameter setting value is employed as a scaling magnification without specifying P,
the setting value at G51 command time is employed as the scaling magnification, and
change of this value, if any, is not effective.
(2) The decimal point cannot be input to magnification I, J, and K.
•
••
•
Manual operation
Scaling is effective only to the automatic operation. It is not effective in the manual operation.
•
••
•
Move amount
If scaling results are rounded by counting fractions of 5 and over as a unit and disregarding
the rest, the move amount may become zero. In this case, the block is regarded as a no
movement block, and therefore, it may affect the tool movement by cutter compensation C.
•
••
•
Circular interpolation
Even if different magnifications are applied to each axis in circular interpolation, the tool will
not trace an ellipse.
Example ) G90 G00 X0.0 Y100.0 Z0.0 ;
G51 X0.0 Y0.0 Z0.0 I2000 J1000;
G02 X100.0 Y0.0 I0 J-100.0 F500 ;
Above commands are equivalent to the following command:
G90 G00 X0.0 Y100.0 Z0.0 ;
G02 X200.0 Y0.0 I0 J-100.0 F500 ;
Because the end point is not corresponding to the radius, the circular interpolation at this time
becomes a spiral interpolation.
•
••
•
Absolute and incremental
It is assumed that the scaling center is not instructed for an incremental instruction until the
absolute position instruction appears after the G51 mode turns on.. (That is, the position of
the instruction in G51 becomes a scaling center)

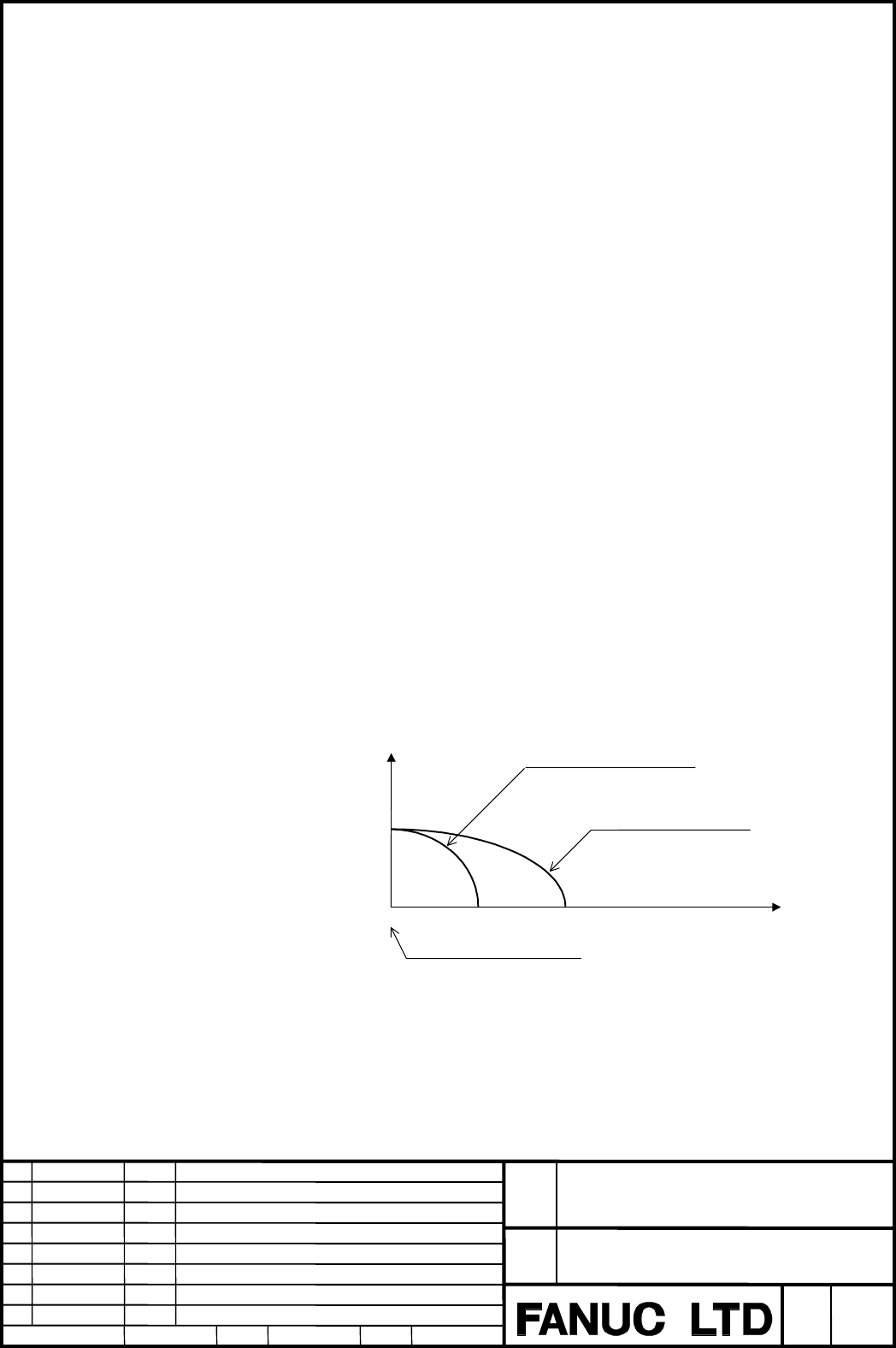

Y
X
O
Scaling center
Figure without scaling
Figure after scaling
