FS 16i/18i TA/TB, High-precision Contour Control function for Complex Lathe Additional Manual Page 42

Additional Manual
A-78395E
Edit
Apprv
ApprvApprv
Apprv.
..
.Desig
DesigDesig
Desig.
..
.
Sheet
Title
Draw
No.
41/75
Date
DateDate
Date
Design
DesignDesign
Design
Descri
p
tion
Descri
p
tionDescri
p
tion
Descri
p
tion
Date
DateDate
Date
FANUC Series 16
i
/18
i
-TA/TB
Specifications of High-Precision Contour
Control forComplex Lathe
2001.02.14 A.Fukumoto
02 2001.10.04
Description of Cs axis and rotary axis are added.

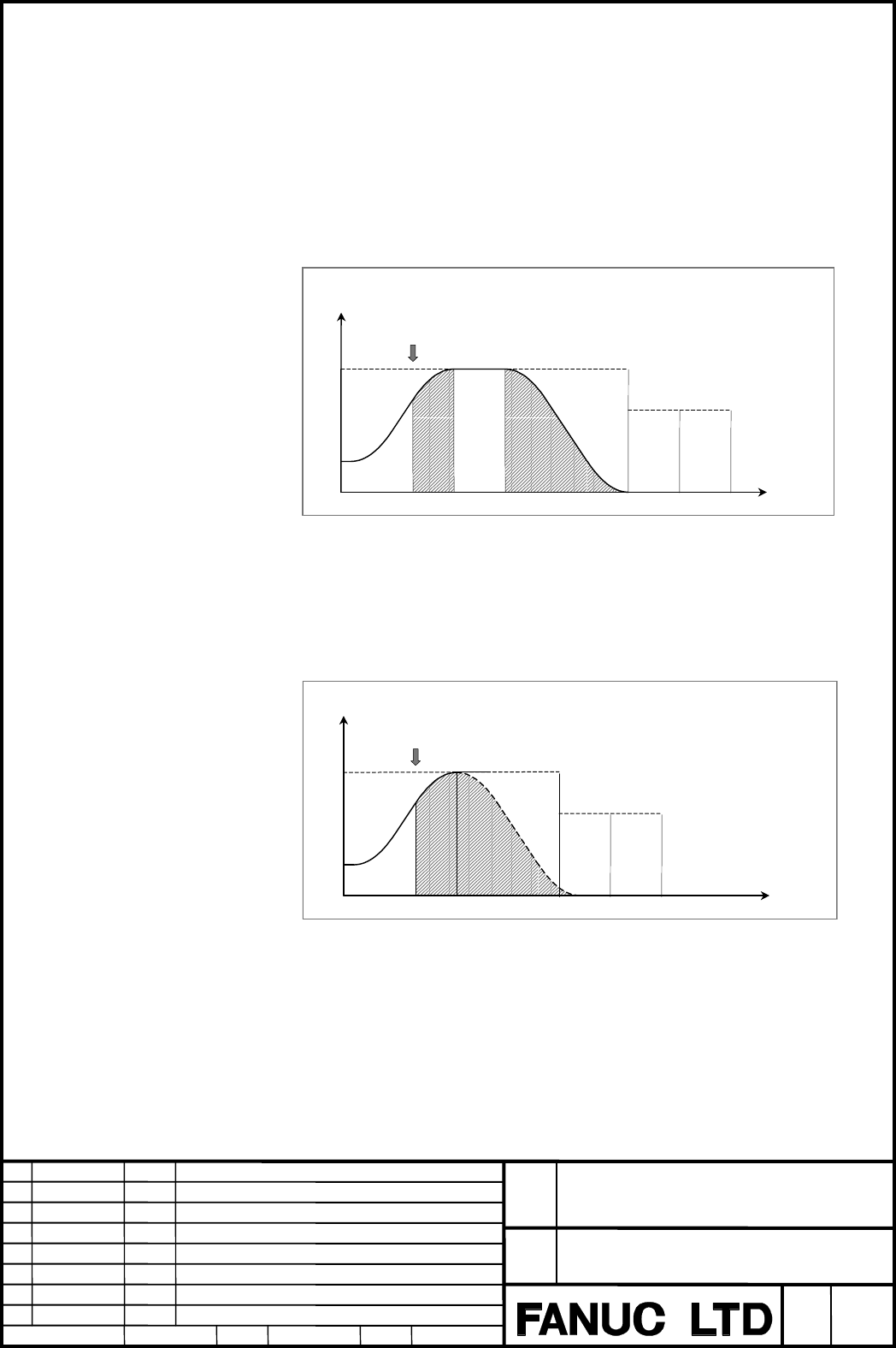

(3) Single block
When the single block function is specified while look–ahead bell–shaped
acceleration/deceleration before interpolation is used, control is performed as described
below.
•
••
•
While the tool is being accelerated or decelerated when the single block function is specified
(a) A + B ≤ Remaining travel for the tool in the block being executed when the single block
function is specified
The tool is gradually decelerated so that the feedrate is 0 upon completion of the
execution of the block that was being executed when the single block function was
specified.
B
Feedrate
Time
A
Single block function specified
A: Distance traveled before the tool reaches the specified feedrate from the current
acceleration/deceleration
B: Distance traveled before the feedrate falls to 0 from a feedrate to which no
acceleration/deceleration is applied
(b)
A + B > Remaining travel for the tool in the block being executed when the single
block function is specified
The tool may be decelerated over multiple blocks until it stops.
How the tool is stopped is described later.
Feedrate
Time
B
A
Single block function specified
A: Distance traveled before the tool reaches the specified feedrate with the current
acceleration/deceleration
B: Distance traveled until the feedrate falls to 0 from a feedrate to which no
acceleration/deceleration is applied
