  2. FS 16i/18i TA/TB, High-precision Contour Control function for Complex Lathe

FS 16i/18i TA/TB, High-precision Contour Control function for Complex Lathe Additional Manual Page 43

Additional Manual
A-78395E
Edit
Apprv
ApprvApprv
Apprv.
..
.Desig
DesigDesig
Desig.
..
.
Sheet
Title
Draw
No.
42/75
Date
DateDate
Date
Design
DesignDesign
Design
Descri
p
tion
Descri
p
tionDescri
p
tion
Descri
p
tion
Date
DateDate
Date
FANUC Series 16
i
/18
i
-TA/TB
Specifications of High-Precision Contour
Control forComplex Lathe
2001.02.14 A.Fukumoto
02 2001.10.04
Description of Cs axis and rotary axis are added.
•
••
•

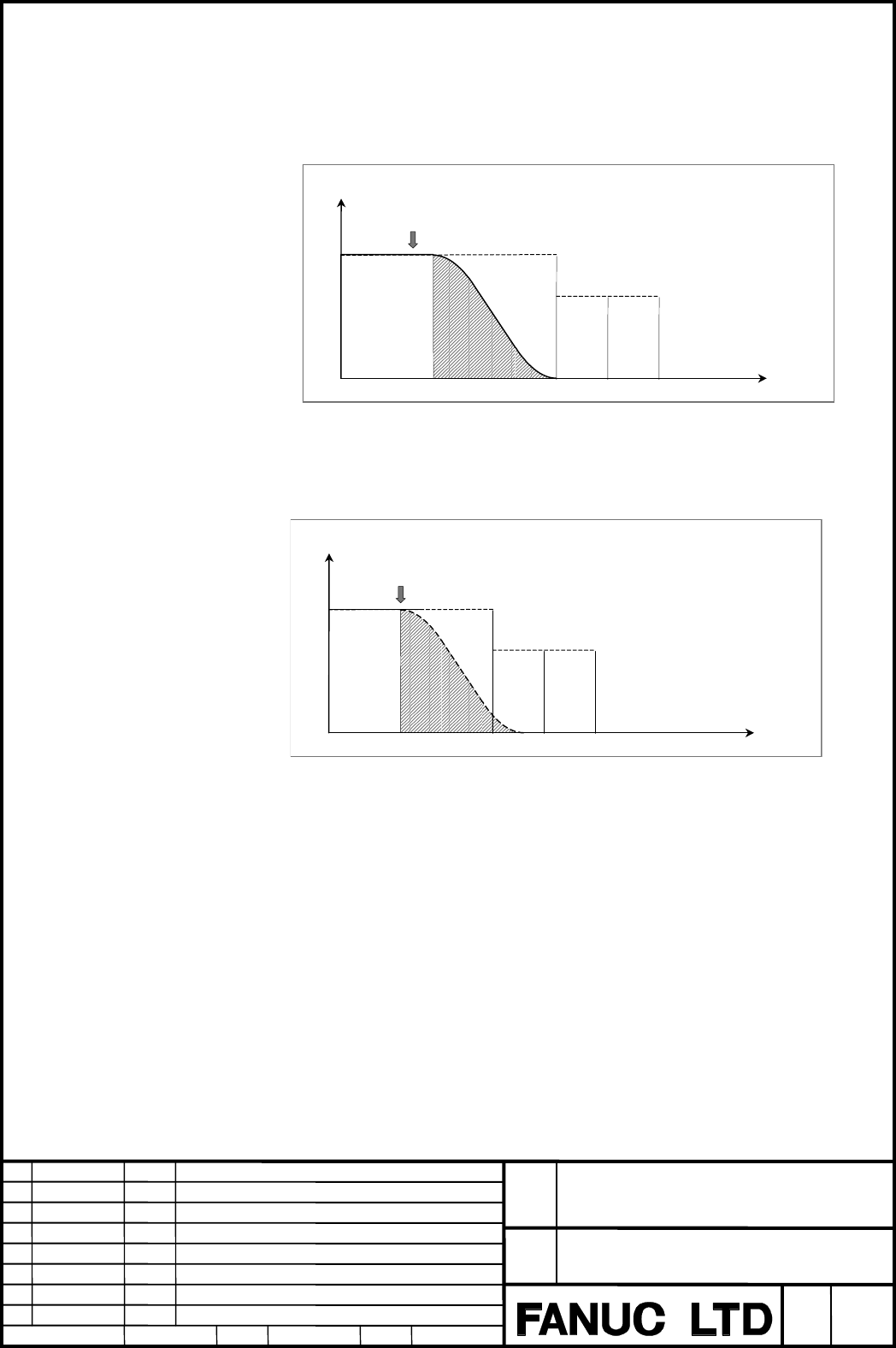

While the tool is not being accelerated or decelerated when the single block function is
specified
(a) A + B ≤ Remaining travel for the tool in the block being executed when the single block
function is specified
The tool is gradually decelerated so that the feedrate is 0 upon completion of the
execution of the block that was being executed when the single block function was
specified.
Feedrate
Time
A
Single block function specified
A: Distance traveled until the feedrate falls from the current feedrate value to 0
(b) A > Remaining travel of the tool in the block being executed when the single block
function is specified
The tool may be decelerated over multiple blocks until it stops.
How the tool is stopped is described later.
Feedrate
Time
A
Single block function specified
A: Distance traveled until the feedrate falls from the current feedrate value to 0
