FANUC Series 16
i
/18
i
-TA/TB
Specifications of High-Precision Contour
Control forComplex Lathe
2001.02.14 A.Fukumoto
02 2001.10.04
Description of Cs axis and rotary axis are added.
2.16 Look–ahead acceleration/deceleration before interpolation
2.16.1 Acceleration/deceleration type
There are three types of acc/decelerations as follows. The bell type is smoother than linear
type.
(1) Linear acc/deceleration before interpolation
(2) Bell-shaped acc/deceleration before interpolation (acceleration variable ratio constant
type)
(3) Bell-shaped acc/deceleration before interpolation (acceleration variable time constant
type)
2.16.2 Linear acc/deceleration before interpolation
To make this function enabel, please set an acceleration by the parameter No.8400 and
No.8401.

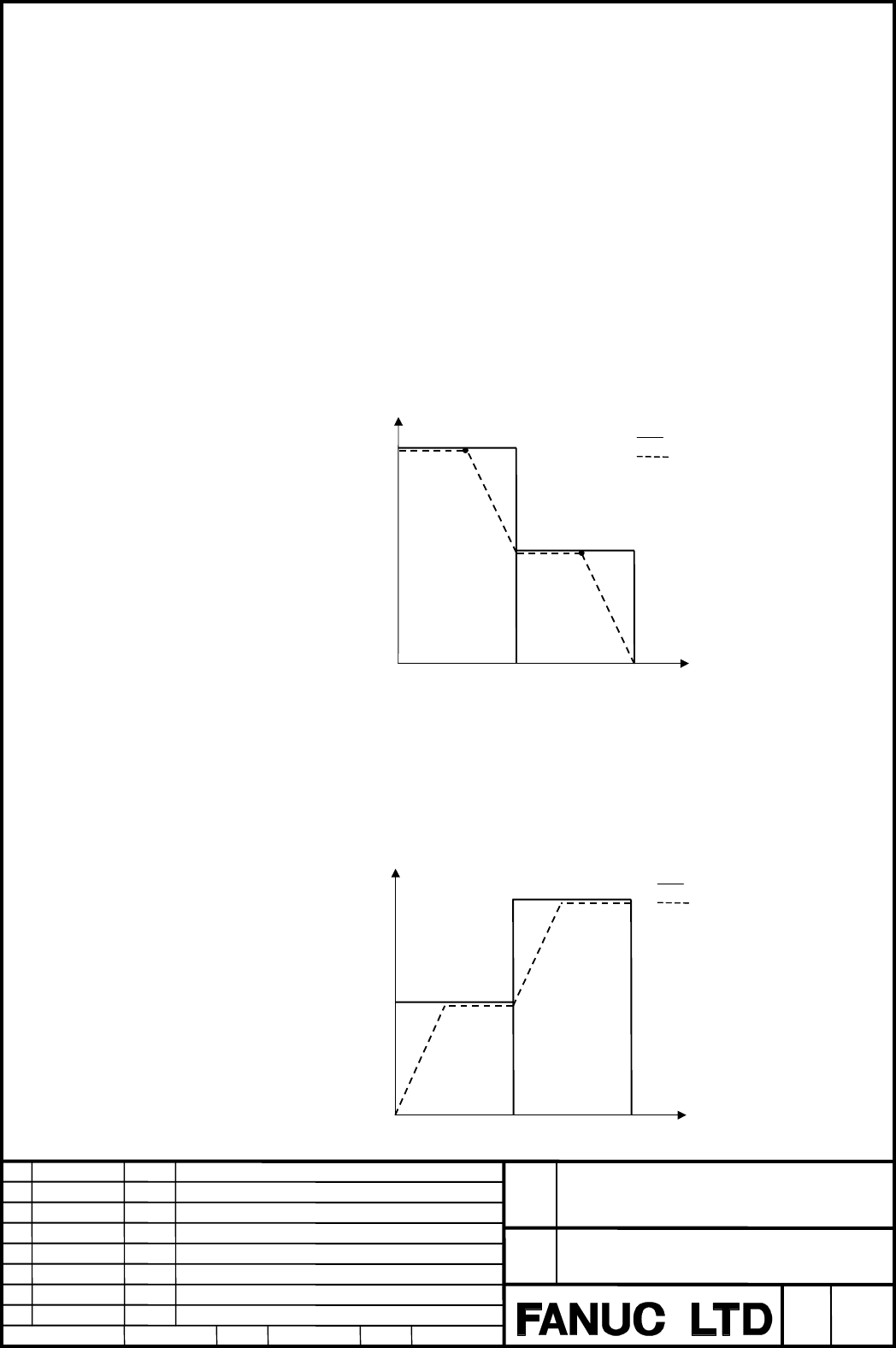

(1) Example of deceleration
To ensure that the feedrate specified for a block is reached when the block is executed,
deceleration is started in the previous block.
To reduce feedrate F3 to feedrate F2, deceleration must be started at P1.
To reduce feedrate F2 to feedrate F1, deceleration must be started at P2.
The tool can be decelerated over several blocks, because several tens of blocks are read in
advance.
(2) Example of acceleration
Acceleration is started to reach the specified feedrate for a block when the block is executed.
Time
Feedrate
F3
F2
F1
N1 N2
P2
P1
Specified feedrate
Feedrate after acceleration/
deceleration before
interpolation is applied
Time
Feedrate
F3
F2
F1
N1 N2
Specified feedrate
Feedrate after acceleration/
deceleration before
interpolation is applied
