Specifications of High-Precision Contour
Control forComplex Lathe
2001.02.14 A.Fukumoto
02 2001.10.04
Description of Cs axis and rotary axis are added.
•
••
•
Feedrate command and deceleration
If an F command is changed by, for example, another F command, the corner deceleration
function, or the automatic feedrate determination function, look–ahead bell–shaped
acceleration/deceleration before interpolation treats the changed feedrate as a new target
feedrate, and restarts acceleration/deceleration.
Whenever an F command is changed, bell–shaped acceleration/deceleration is performed.
When the distance required to decelerate the tool from a specified feedrate is longer than the
total travel of the tool in the blocks read in advance, the feedrate is automatically clamped, as
in the case of acceleration.

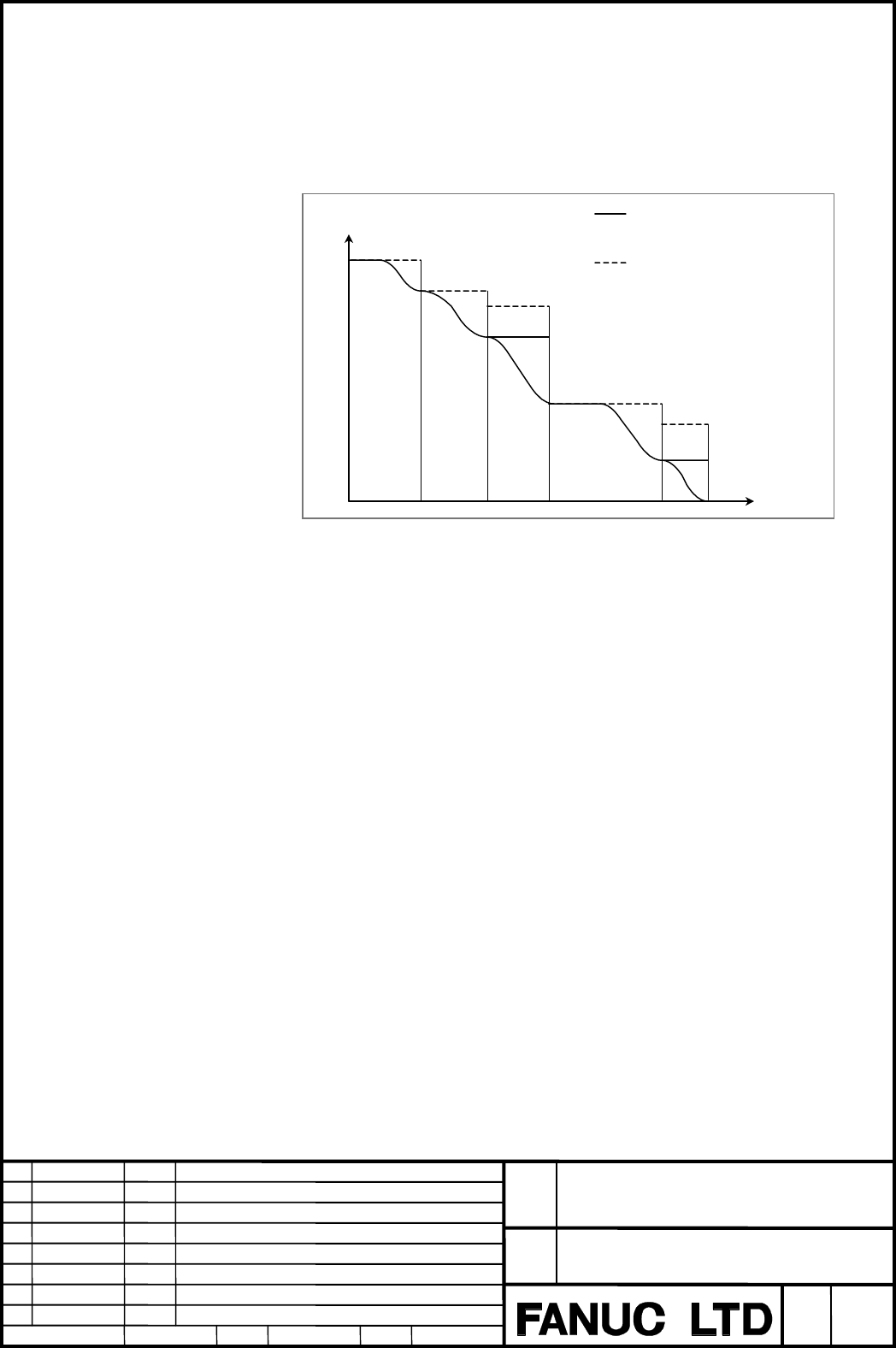

Feedrate
Time
Specified feedrate
Clamp feedrate
Clamp feedrate
Feedrate control by look–ahead
bell–shaped acceleration/ dec-
eleration before interpolation
•
••
•
Deceleration based on tool travel
The deceleration of the tool is started when the total travel of the tool in the blocks read in
advance is less than the distance required to decelerate the tool from the current feedrate.
When the total travel of the tool in the blocks read in advance increases at the end of
deceleration, the tool is accelerated.
When blocks specifying a short travel are specified in succession, the tool may be decelerated,
then accelerated, then decelerated, and so on, resulting in an unstable feedrate. In such a
situation, specify a smaller feedrate.
•
••
•
Feed hold during deceleration
When the feed hold function is used during deceleration, control is performed as described
below.
(1) While applying constant or increasing deceleration
The point where the deceleration starts being reduced to 0 is shifted from the usually used
point (i.e., that used when feed hold is not applied) to ensure that the feedrate for the tool
is gradually reduced to 0.
(2) While applying decreasing deceleration
The deceleration is gradually reduced to 0, after which the feedrate is reduced to 0.
