Description of Cs axis and rotary axis are added.
2.4 G code system
G code system in the HPCC mode becomes G code system of the machining centre system.

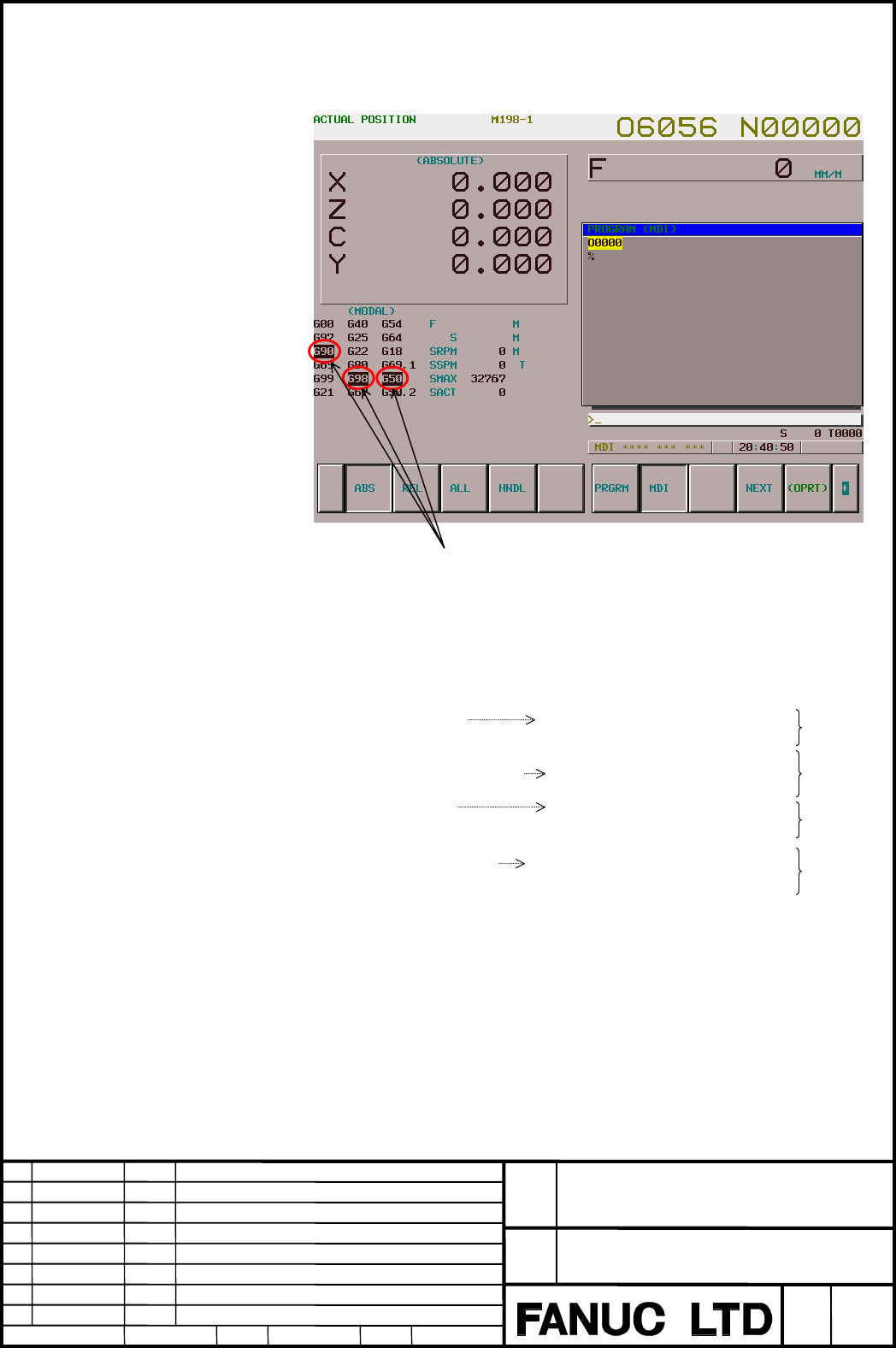

To distinguish from other G codes, the G code of the group which cannot instruct excluding
the HPCC mode is displayed in reverse video as shown in the figure below.
2.5 Absolute and incremental command
Absolute or incremental of the instruction value follows G90/G91 displayed in reverse video
for G code system A. Even if the HPCC mode is turns off and on, this modal data is held.
Example)
N1 G00 X100. Z100. ; Absolute
N2 G98
N3 G05 P10000 ;
N4 G91 G01 X50. Z50. F1000 ; Incremental
N5 G05 P0
N6 G00 X10. Z10. ; Absolute
;
N7 G05 P10000 ;
N8 G01 X50. Z50. F1000 ;
N9 G05 P0 ;
Reverse display
Reverse displayReverse display
Reverse display
This block becomes incremental motion,
because of G91 which is commanded in
last HPCC mode (N4) is held. G90 in
N6 has no influence.
HPCC
HPCC
non-HPCC
non-HPCC
