FANUC Series 16
i
/18
i
-TA/TB
Specifications of High-Precision Contour
Control forComplex Lathe
2001.02.14 A.Fukumoto
02 2001.10.04
Description of Cs axis and rotary axis are added.
8491 Maximum tolerance of a block where smooth interpolation is applied
[Data type]
Word
[Unit of data]
Increment
system
IS-B IS-C Unit of
data
mm input 0.001 0.0001 mm
inch input 0.0001 0.00001 inch
[Valid data range]
0 to 32767
This parameter specifies a tolerance used as a reference to decide whether to apply smooth
interpolation. If the tolerance specified in a block is larger than the value set in the parameter,
smooth interpolation will not be applied to that block.
8492 Minimum tolerance of a block where smooth interpolation is applied
[Data type]
Word
[Unit of data]
Increment
system
IS-B IS-C Unit of
data
mm input 0.001 0.0001 mm
inch input 0.0001 0.00001 inch
[Valid data range]
0 to 32767
This parameter specifies a tolerance used as a reference to decide whether to apply smooth
interpolation. If the tolerance specified in a block is smaller than the value set in the
parameter, smooth interpolation will not be applied to that block.
Please set the value of about 1/10 of the maximum tolerance (parameter No.8491) usually.
When 0 is set, 1/10 of the maximum tolerance (parameter No.8491) is assumed to be
minimum tolerance. When a negative value is set, the minimum tolerance is assumed to be 0.

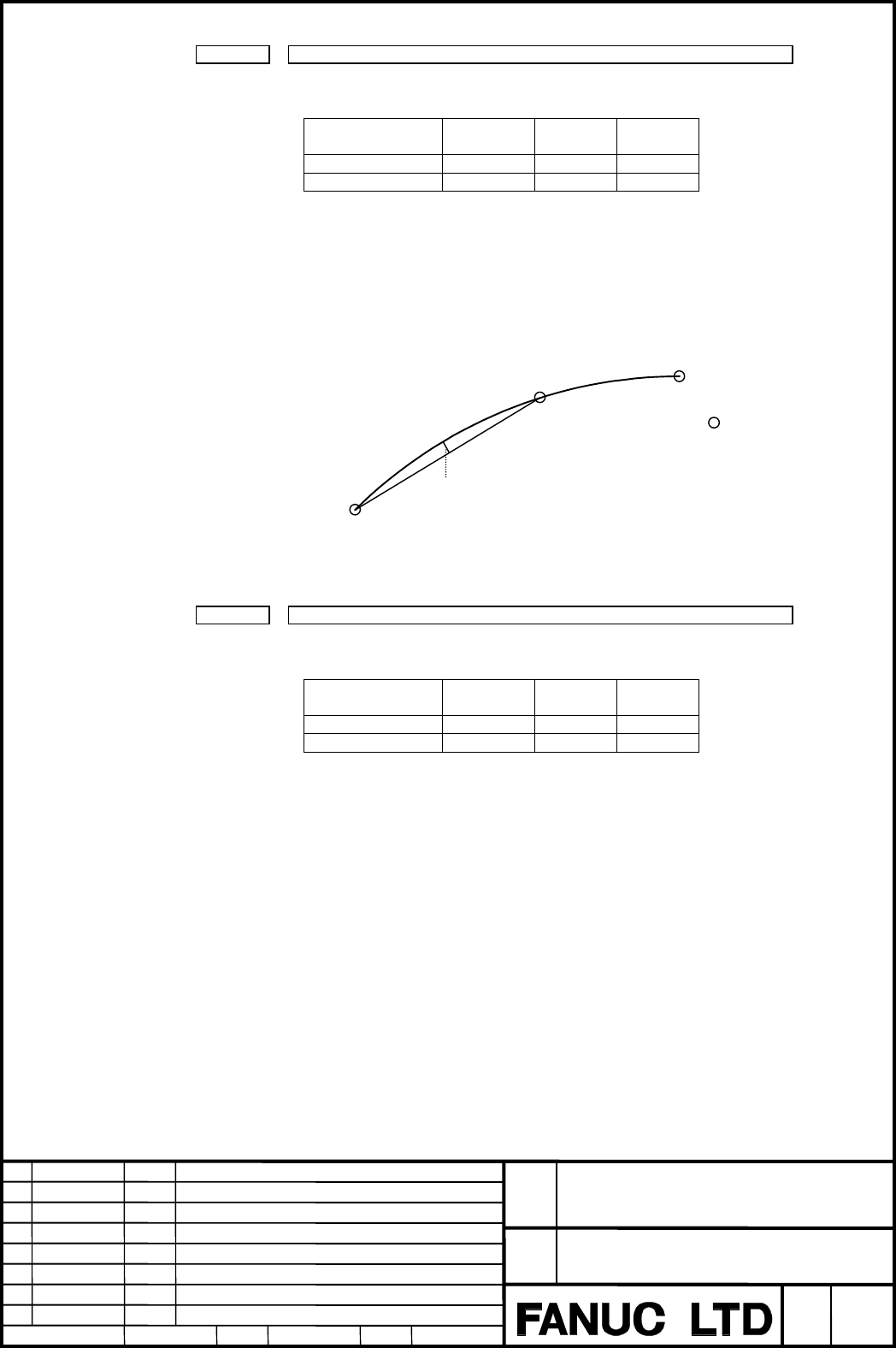

The tolerance is a distance of straight line L and curve C which
instruction points are smoothly connected.
instruction points
Line L
Curve C
tolerance
