FS 16i/18i TA/TB, High-precision Contour Control function for Complex Lathe Additional Manual Page 38

Additional Manual
A-78395E
Edit
Apprv
ApprvApprv
Apprv.
..
.Desig
DesigDesig
Desig.
..
.
Sheet
Title
Draw
No.
37/75
Date
DateDate
Date
Design
DesignDesign
Design
Descri
p
tion
Descri
p
tionDescri
p
tion
Descri
p
tion
Date
DateDate
Date
FANUC Series 16
i
/18
i
-TA/TB
Specifications of High-Precision Contour
Control forComplex Lathe
2001.02.14 A.Fukumoto
02 2001.10.04
Description of Cs axis and rotary axis are added.
•
••
•

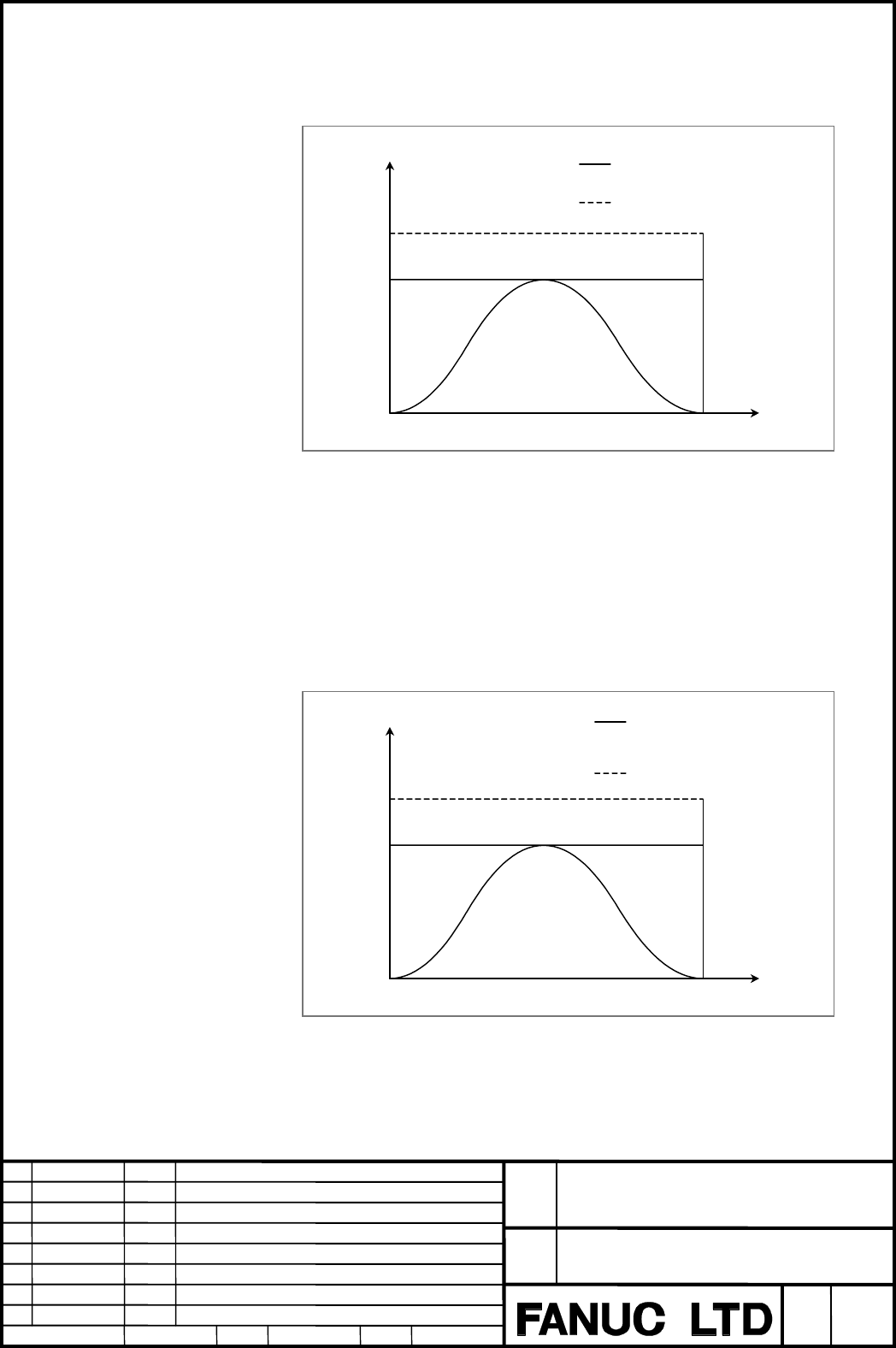

Feedrate clamping based on the total travel of the tool in look–ahead blocks
When the distance required to decelerate the tool from a specified feedrate is less than the
total travel of the tool in the blocks read in advance, the feedrate is automatically clamped to a
feedrate from which the tool can be decelerated to a feedrate of zero.
Feedrate
Time
Total travel of the
tool in the blocks
read in advance
Specified feedrate
Clamp
Feedrate
Feedrate control by look–ahead
bell–shaped acceleration/ dec-
eleration before interpolation
When several blocks, each specifying a short travel, are specified in succession, the following
situation can occur:
The total travel of the tool in the blocks read in advance at the start of acceleration is less than
the distance required to decelerate the tool from a specified feedrate, but the total travel of the
tool in the blocks read in advance at the end of acceleration is greater than the distance
required to decelerate the tool from a specified feedrate.
In such a case, the tool is accelerated once and clamped to the feedrate obtained based on the
total travel of the tool in the blocks read in advance.
Then, the tool is accelerated to a specified target feedrate.
(1) At the start of acceleration
Feedrate
Time
Total travel of the
tool in the blocks
read in advance
Specified feedrate
Clamp
feedrate
Feedrate control by look–ahead
bell–shaped acceleration/ dec-
eleration before interpolation
