FANUC Series 16
i
/18
i
-TA/TB
Specifications of High-Precision Contour
Control forComplex Lathe
2001.02.14 A.Fukumoto
02 2001.10.04
Description of Cs axis and rotary axis are added.
•
••
•

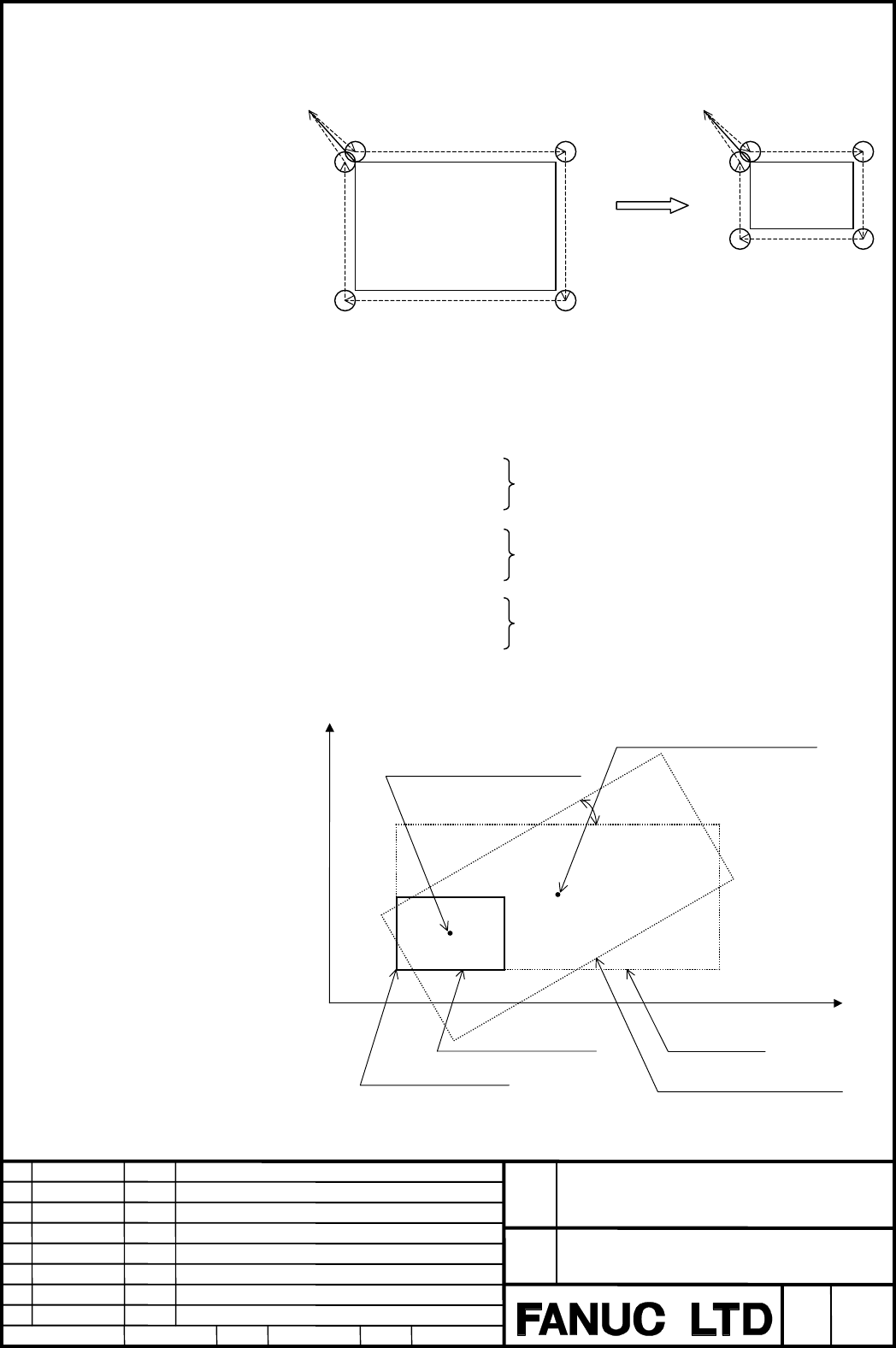

Invalid scaling
This scaling is not applicable to cutter compensation values, tool length offset values, and
tool offset values.
•
••
•
Coordinate system rotation
When both scaling and coordinate system rotation are specified, the coordinate system is
rotated after scaling is applied. In this case, scaling is effective for the center of rotation.
Example) O0001 ;
G90 G00 X20. Y10. ;
G05 P10000 ;
G01 X50. F500 ;
Y30. ;
X20. ;
Y10. ;
G51 X20. Y10. I3000 J2000;
G01 X50. F500 ;
Y30. ;
X20. ;
Y10. ;
G17 G68 X35. Y20. R3000 ;
G01 X50. F500 ;
Y30. ;
X20. ;
Y10. ;
G69 ;
G50 ;
G05 P0 ;
M30 ;
(a)
Y
X
O
Original figure specified
in the program
Center of rotation before scaling
(a)
Center of rotation after scaling
(c)
Figure after the coordinate
system is rotated
Center of scaling
(b)
Scaled figure
30˚
1/2 scaling
(b)
(c)
