FANUC Series 16
i
/18
i
-TA/TB
Specifications of High-Precision Contour
Control forComplex Lathe
2001.02.14 A.Fukumoto
02 2001.10.04
Description of Cs axis and rotary axis are added.
2.16.3 Look–ahead bell–shaped acc/deceleration before interpolation
(acceleration variable ratio constant type)
To use this function, set bit 7 (BDO) and bit 1 (NBL) of parameter No. 8402 to 1, and also set
the following parameters:
Parameter No. 8400: Parameter 1 for setting the acceleration used for acceleration/
deceleration before interpolation
Parameter No. 8401: Parameter 2 for setting the acceleration used for acceleration/
deceleration before interpolation
Parameter No. 8402, bit 5 (DST) = 1, bit 4 (BLK) = 0
Parameter No. 8416: Time needed to reach maximum acceleration
For details, see the description of the parameters.

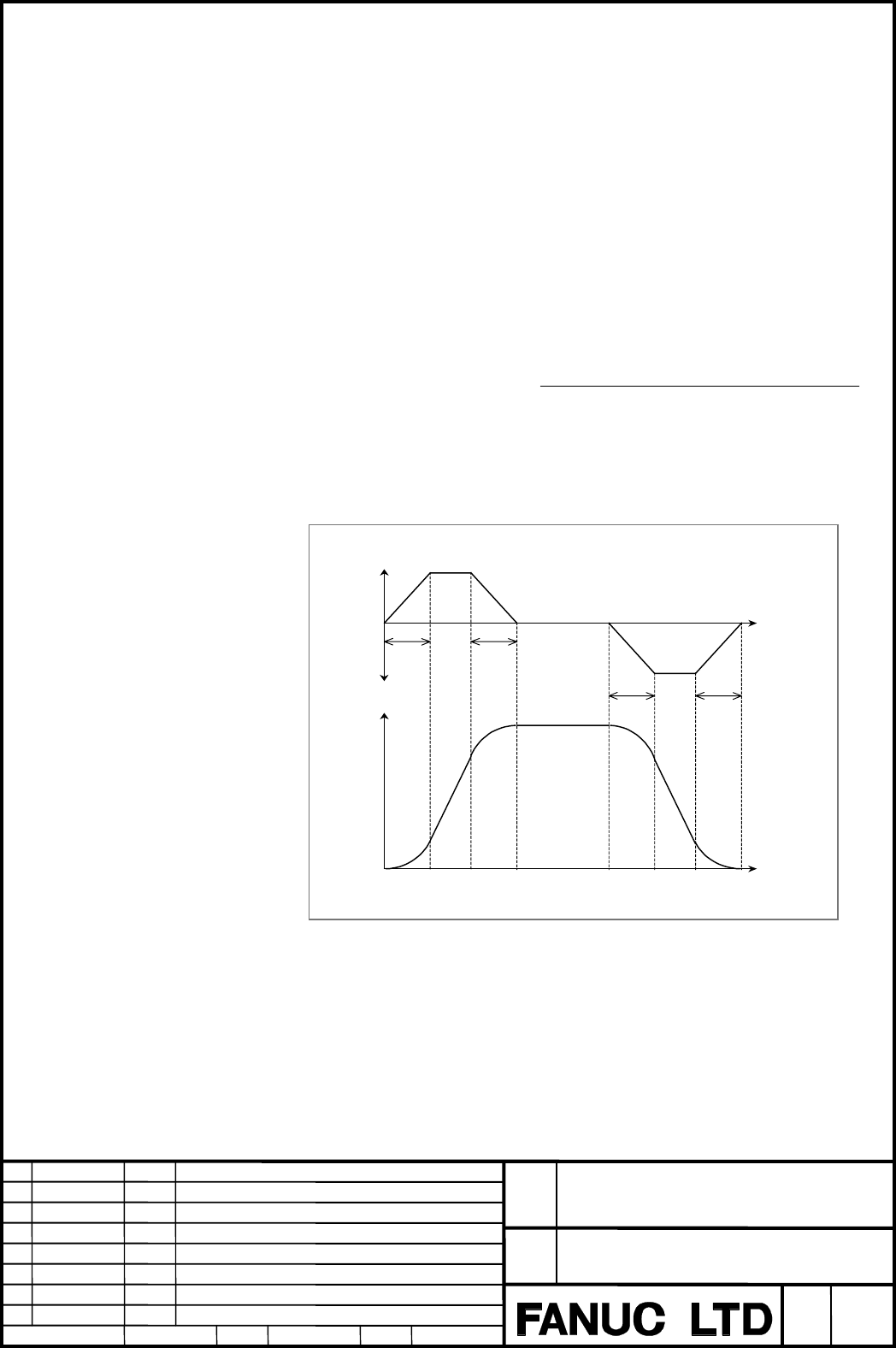

Look–ahead bell–shaped acceleration/deceleration before interpolation controls acceleration
as described below.
Time needed to reach maximum acceleration: ACC_TIME = Setting in parameter No. 8416
[ms]
(1) When maximum acceleration is reached
ACC_MAX
−
−−
−
ACC_MAX
A
cceleration
Tim e
+
−
Feedrate
Tim e
A
CC_TIME
A
CC_TIME
A
CC_TIME
A
CC_TIME
Maximum acceleration ACC_MAX =
Setting of parameter No. 8400 [mm/min, inch/min]
Setting of parameter No. 8401 [ms]
