Specifications of High-Precision Contour
Control forComplex Lathe
2001.02.14 A.Fukumoto
02 2001.10.04
Description of Cs axis and rotary axis are added.
2.16.4 Look–ahead bell–shaped acc/deceleration before interpolation
(acceleration variable time constant type)
To use this function, please set “1” in parameter No.1603#3(SBL) in addition to setting the
bell-shaped acc/deceleration of acceleration valiable ratio constant type.
•
••
•
Difference with acceleration variable ratio constant type
Control method of acceleration
In an acceleration variable ratio constant type, the variable ratio of the acceleration is fixed.
On the other hand, the change time of the acceleration is fixed in this bell-shaped
acc/deceleration. The acceleration will change for a fixed time of setting in the parameter
No.8416 when the deceleration occurs while accelerating. Therefore, the variable ratio of
change of the acceleration becomes not constant.
When the feedrate is changed
In an acceleration variable ratio constant type, the bell-shaped acc/deceleration is done every
time the feedrate is changed by the F command and the corner deceleration function and the
automatic feedrate control function..
On the other hand, the bell-shaped acc/deceleration is not done in the block without a
distance enough to reach the changed feedrate in this bell-shaped acc/deceleration.

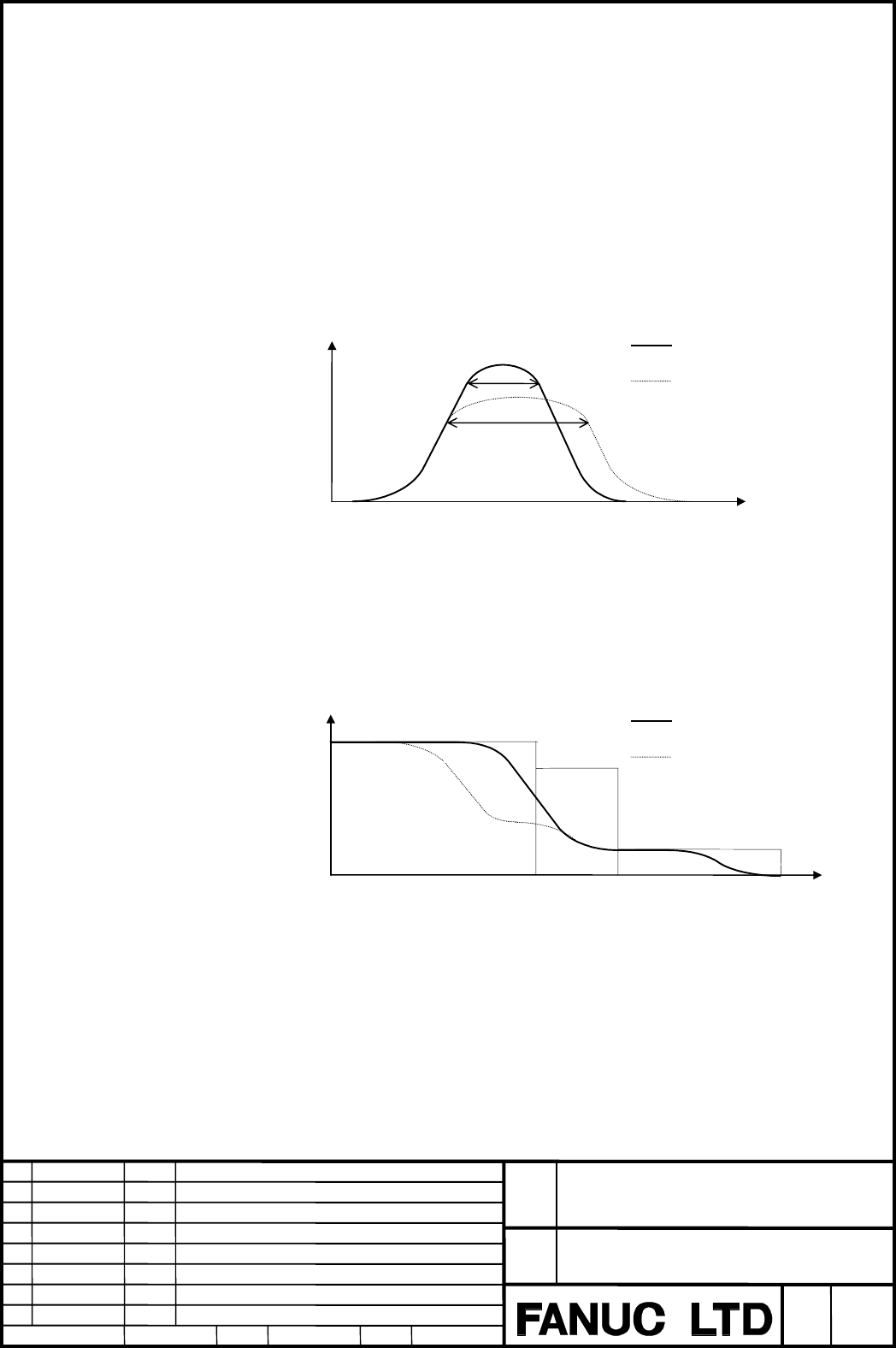

Bell-shaped acc/decceleration
of this method
Bell-shaped acc/decceleration
of acceleration variable ratio
constant t
e
t Time constant of bell-shaped
acc/deceleration
2t
t
Feedrate
Time
Time
Feedrate
Bell-shaped acc/decceleration
of this method
Bell-shaped acc/decceleration
of acceleration variable ratio
constant t
e
