FANUC Series 16
i
/18
i
-TA/TB
Specifications of High-Precision Contour
Control forComplex Lathe
2001.02.14 A.Fukumoto
02 2001.10.04
Description of Cs axis and rotary axis are added.
•
••
•

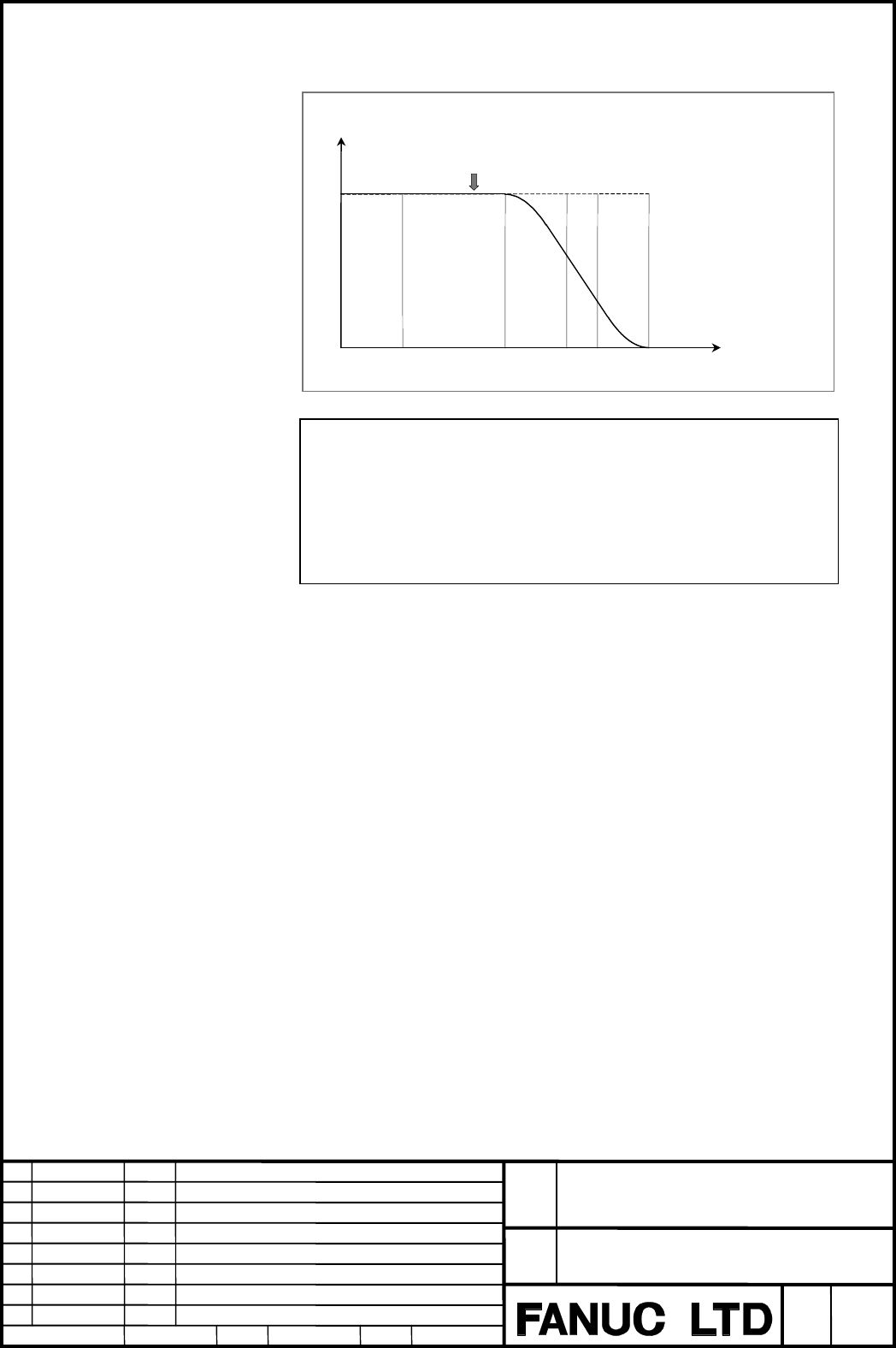

How the tool is stopped when decelerated over multiple blocks
The tool is decelerated (or accelerated) over multiple blocks until the feedrate becomes 0.
Feedrate
Time
Single block function specified
CAUTION
1 Depending on the stop point and remaining blocks, two or more
acceleration/deceleration operations may be performed.
2 When the single block function is specified, an acceleration /
deceleration curve recalculation is required while the tool is moving
along an axis. So, the tool is not always decelerated over the
minimum number of blocks before stopping.
(4) Dry run/feedrate override
When a change in the specification of the dry run function or feedrate override function
results in a change in the specified feedrate (feedrate change due to an external cause) while
look–ahead bell–shaped acceleration/ deceleration before interpolation is being used, control
is performed as described below.
•
••
•
While the tool is being accelerated or decelerated when the specification of the dry run
function or feedrate override function is changed
After the current acceleration/deceleration operation brings the tool to a specified feedrate and
is terminated, the tool is accelerated or decelerated to the new target feedrate.
•
••
•
While the tool is not being accelerated or decelerated when the specification of the dry run
function or feedrate override function is changed
The tool is accelerated or decelerated from the current feedrate to the specified feedrate.
