FANUC Series 16
i
/18
i
-TA/TB
Specifications of High-Precision Contour
Control forComplex Lathe
2001.02.14 A.Fukumoto
02 2001.10.04
Description of Cs axis and rotary axis are added.
(Example of an incorrect program (2))
G51.1…;
G68…;
……
G50.1…;
G69 ;
(Example of a correct program)
G51.1…;
G68…;
……
G69 ;
G50.1…;
Other notes
Please refer to notes in clause 2.14.4.
•
••
•

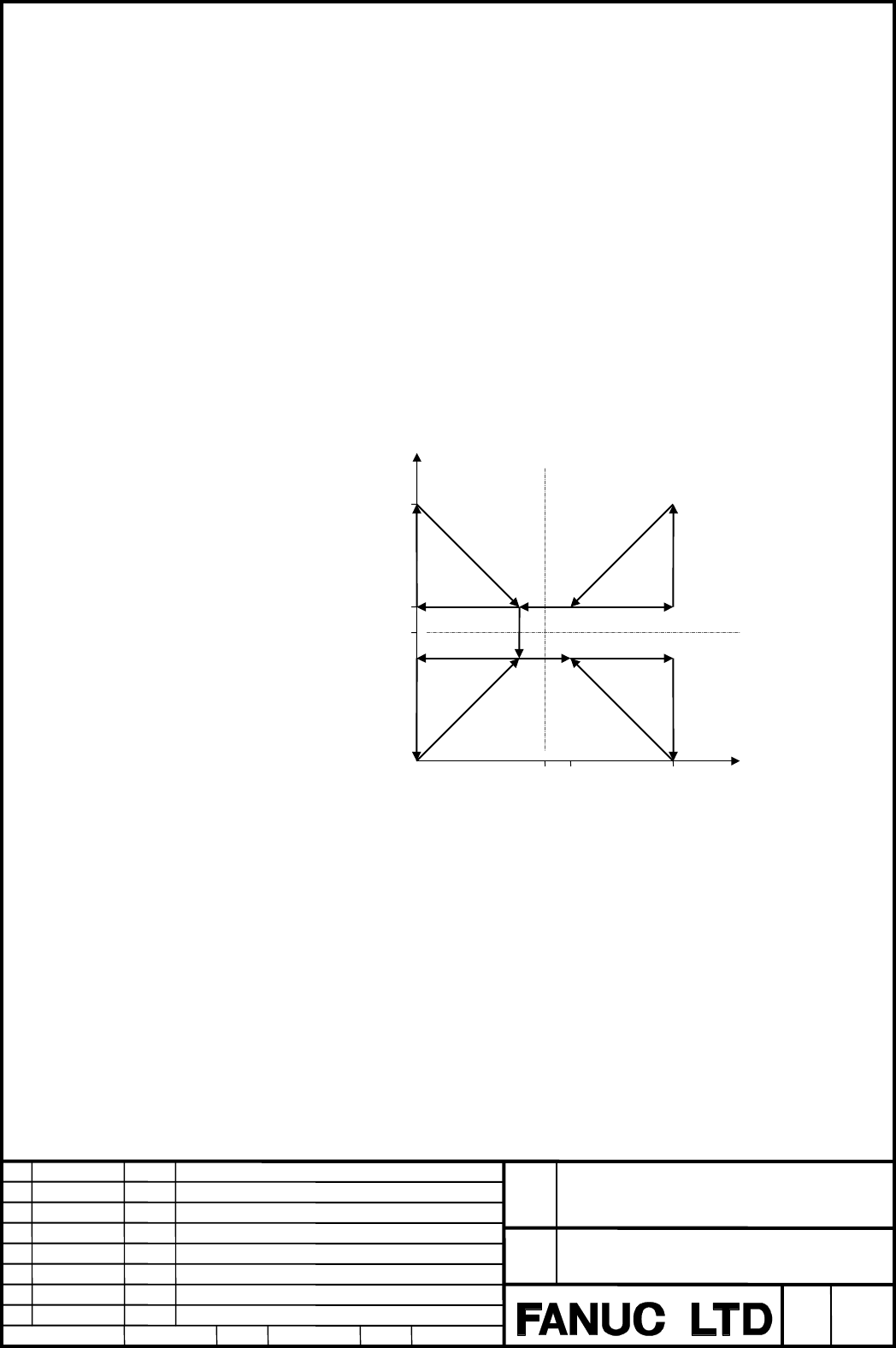

Example
If the contour of workpiece to be machined is symmetrical about an axis, use the
programmable mirror image function and subprograms. The entire contour can be produced by
programming a part of it.
Subprogram Main program
O9000 ; N10 G05 P10000 ;
G00 G90 X60. Y60. ; N20 G00 G90 ;
G01 X100. Y60. F100 ; N30 M98 P9000 ;
G01 X100. Y100. ; N40 G51.1 X50. ;
G01 X60. Y60. ; N50 M98 P9000 ;
M99 ; N60 G51.1 Y50. ;
N70 M98 P9000 ;
N80 G50.1 X0 ;
N90 M98 P9000 ;
N100 G50.1 Y0 ;
N110 G05 P0 ;
50 60 100
Y
X
O
100
60
50
N30N50
N70 N90
