Description of Cs axis and rotary axis are added.

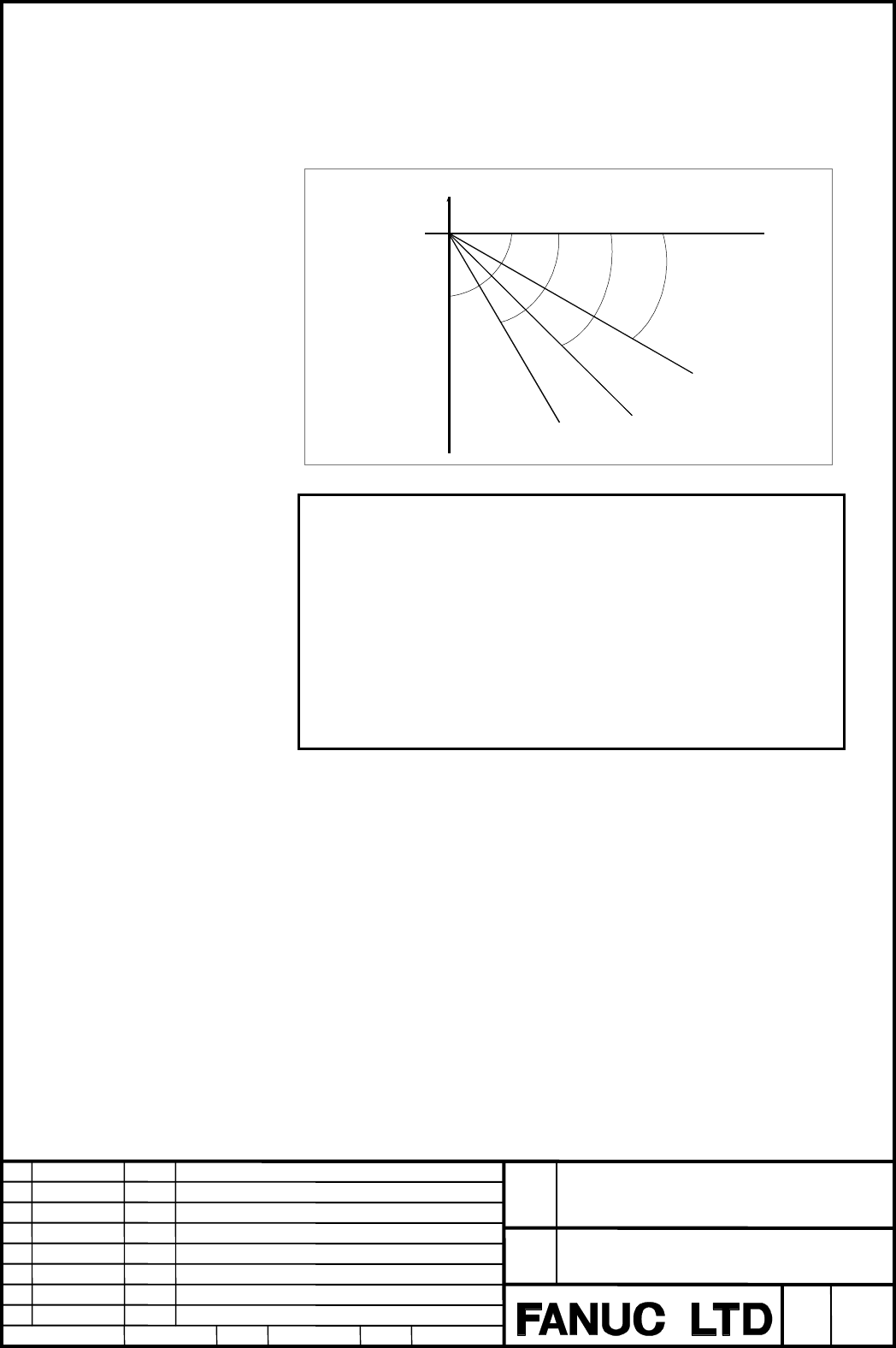

No override parameter is provided for area 1; the override value for area 1 is always 100%. A
feedrate determined with a separate feedrate control function is multiplied by the override
value specified for the area to which the angle θ of downward movement belongs.
Area 1: 0˚ ≤θ<30˚
Area 2: 30˚ ≤θ<45˚
Area 3: 45˚ ≤θ<60˚
Area 4: 60˚ ≤θ≤90˚
XY plane
Z
30°
45°
60°
90°
A
rea 1
A
rea 2
A
rea 3
A
rea 4
CAUTION
1. Mounting direction of the tool should be parallel to Z axis to use
this function. Therefore, this function might not be able to be
applied according to the structure of the machine.
2. The feedrate determination function that is based on cutting load
uses an NC command to determine the direction of movement
along the Z–axis. This means that the direction of movement along
the Z–axis cannot be found if the movement along the Z–axis is
subject to manual intervention with manual absolute on/off
function set to on, or if the mirror image function is used with the
Z–axis. So, never use these functions when using feedrate
determination based on cutting load.
