3.INSTALLATION B-70315EN/02
- 88 -
3.4.1 Packing for Transportation
Prior to shipment and transportation, the packing and checking
operations described below must be performed.
(1) External dimensions : See the Appendix A.
(2) Weight of product :
Model Weight
C1000-E Approx. 350kg + Approx. 30kg (Exhaust pump)
C2000-E Approx. 700kg
C4000-E Approx. 900kg
C5000-E Approx. 1,100kg
C6000-E Approx. 1,300kg
(3) Allowable impact : 2G
Note that the maximum impact in transit depends greatly on the
means of transport employed, as indicated in Table 3.4.1.
Table 3.4.1 Maximum impacts according to means of transport
Means of transport
Airplane Ship Railroad Truck
Forwards/
backwards
6G 15G 12G 5G
Left/right
2.5G 12G 5G 4G
Direction
Up/down
2.5G 12G 5G 4G

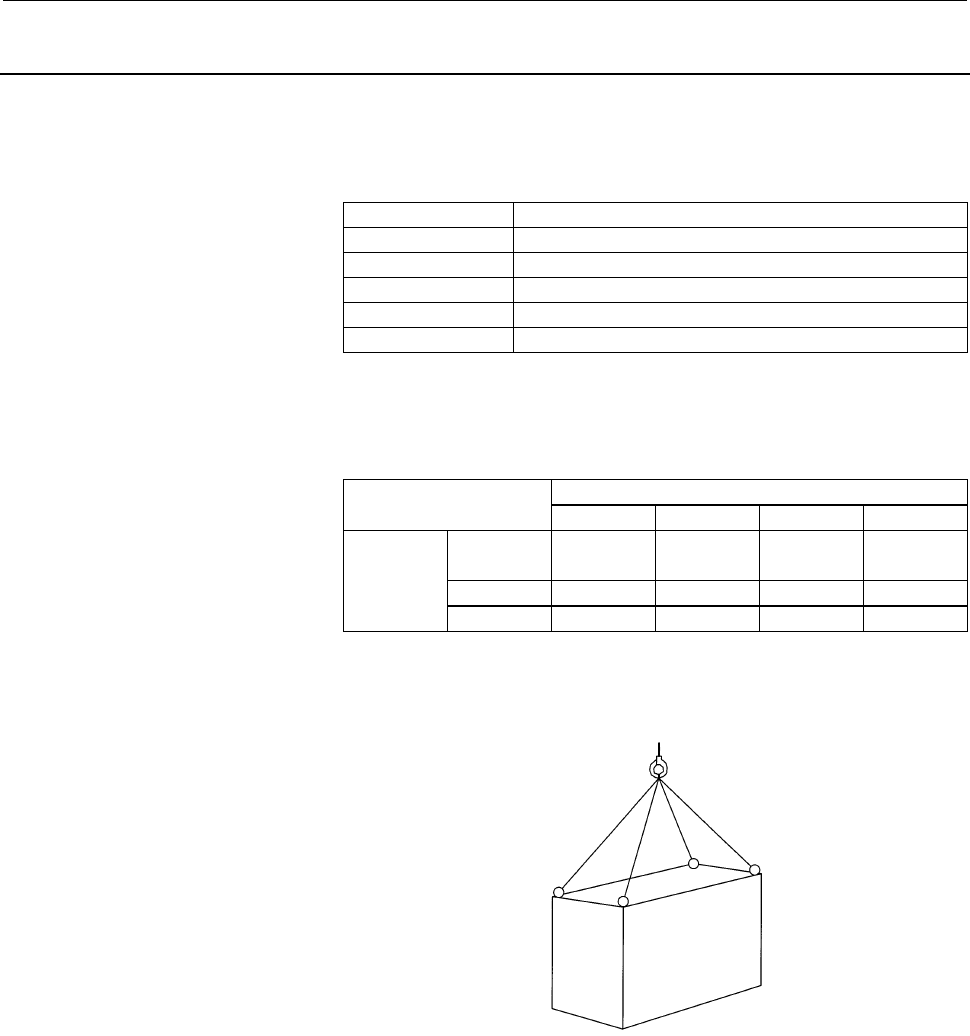

(4) Notes on transportation
When lifting the oscillator for transportation, pass wires through
the four eyebolts, and hook up the oscillator by crane.
