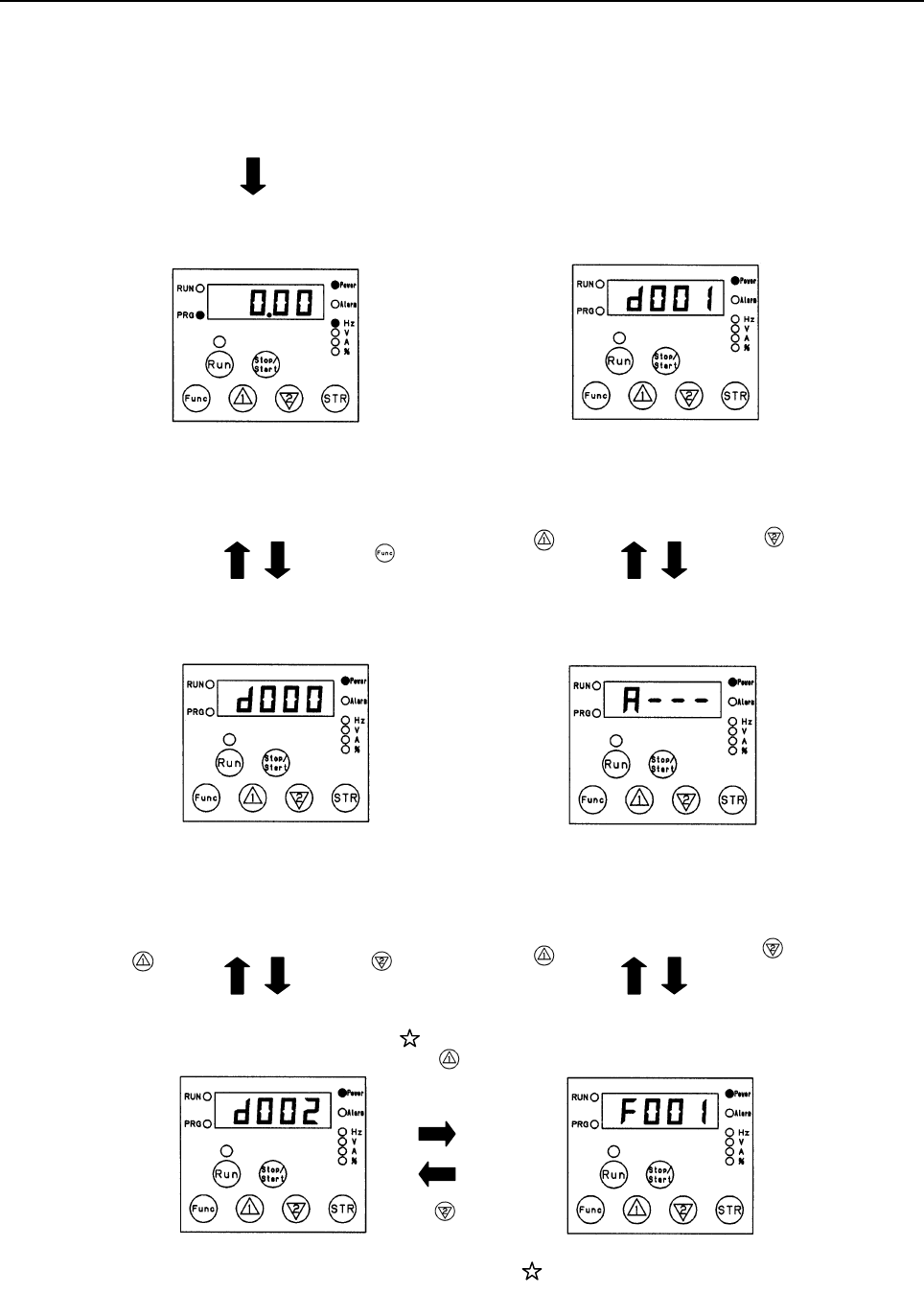

(2) Method of operation
(a) Method of displaying the monitor mode, basic setting mode, and extended
function mode
Monitor (4-digit LED display)
<1> Display of set monitor state
(In the initial state, 0.00 is displayed.)
different value is displayed if the power is turned of
then back on while the basic setting mode or extended
function mode is indicated.
Press the key.
<2> The code No. of the monitor mode is
displayed. (d001 is displayed.)
The monitor screen is displayed by pressing the
FUNC (function) key once when the code No. of
the monitor mode is displayed.
Press the key. Press the key.
(d002 is displayed.)
Press the key.
(19 times).
Press the key.
(19 times).
<5> The code No. of the monitor mode is
displayed. (d001 is displayed.)
The display returns to the state
of <2>.
Press the key.
(6 times).
Press the key.
(6 times).
<4> The extended function mode is
displayed. (A--- is displayed.)
Extended function mode
The screen displays A
↔
b
↔
C
↔
H
↔
P
↔
U in this order.
Press the key.
(8 times).
Press the key.
(8 times).
<3> The code No. of the basic setting mode is
displayed. (F001 is displayed.)
See Item (c) Function code setting method.
