8.LASER OPTICAL SYSTEM B-70315EN/02
- 248 -

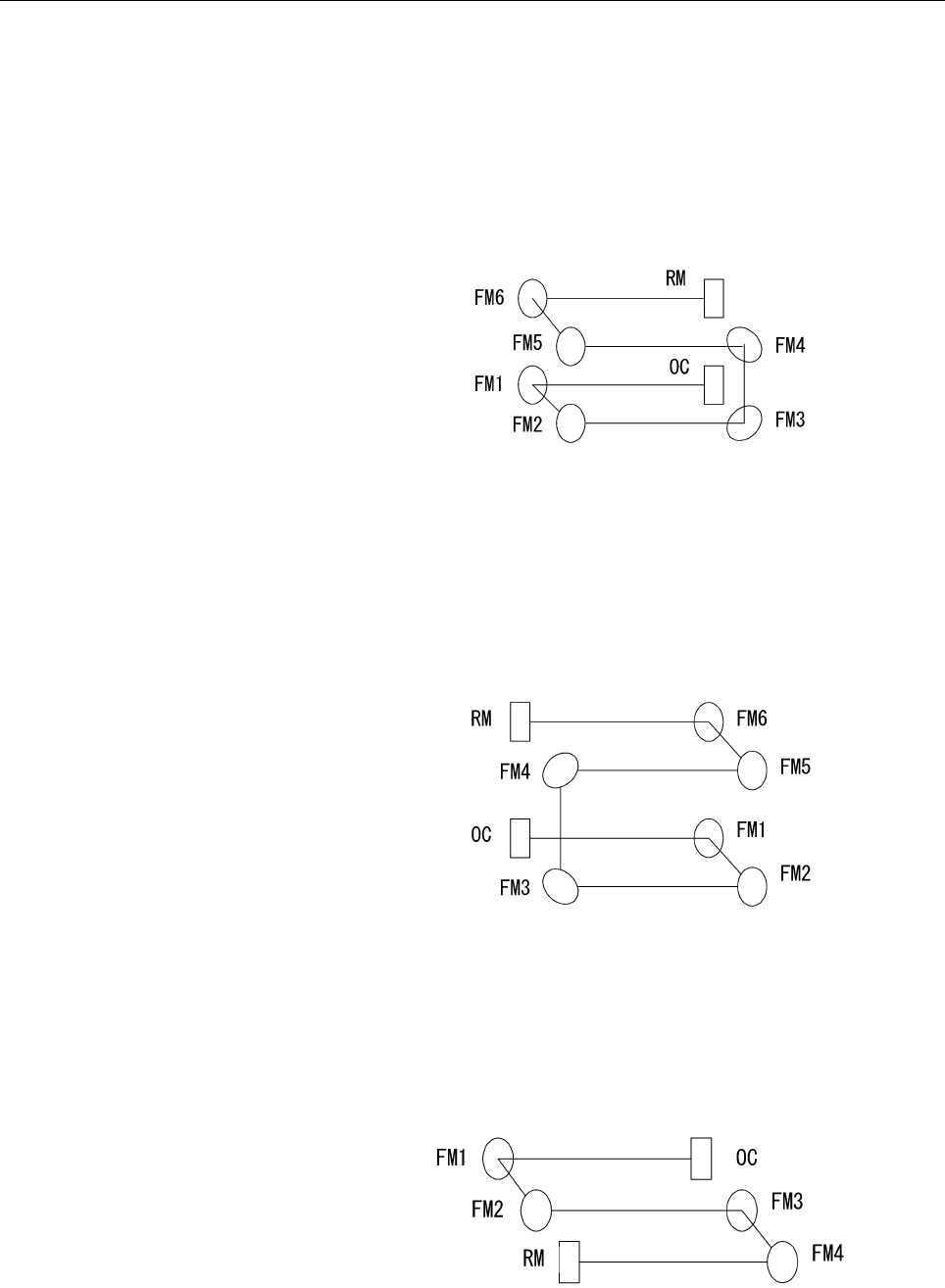

(3) For C4000-E
(a) Clean the O.C. and R.M. mirrors.
(b) Obtain a maximum power based on O.C. by using R.M. as
the reference.
(c) Clean the FM3 and FM4 mirrors.
(d) Obtain a maximum power based on FM4.
(e) Clean the FM1, FM2, FM5, and FM6 mirrors.
(f) Obtain a maximum power based on FM6 by using FM2 as
the reference.
(4) For C5000-E
(a) Clean the O.C. and R.M. mirrors.
(b) Obtain a maximum power based on O.C. by using R.M. as
the reference.
(c) Clean the FM3 and FM4 mirrors.
(d) Obtain a maximum power based on FM4.
(e) Clean the FM1, FM2, FM5, and FM6 mirrors.
(f) Obtain a maximum power based on FM6 by using FM2 as
the reference.
(5) For C6000-E
(a) Clean the O.C. and R.M. mirrors.
(b) Obtain a maximum power based on O.C. by using R.M. as
the reference.
(c) Clean the FM1 and FM2 mirrors.
(d) Obtain a maximum power based on FM1.
(e) Clean the FM3 and FM4 mirrors.
(f) Obtain a maximum power based on FM4.
