8.LASER OPTICAL SYSTEM B-70315EN/02

- 232 -

8.2.2 Cleaning and Replacing the Folding Mirrors

(1) Turn off the power to the CNC, then turn off the main circuit

breaker and power supply for the laser oscillator.

(2) Before starting cleaning, wipe away any foreign matter from

around the mirror holder.

(3) Loosen the mirror holder mounting screw, and remove the mirror

holder. Vacuum grease is applied to the rear of the folding mirror.

So, the mirror does not come off easily from its holder. Clean the

folding mirror without removing it from its holder. To replace

the mirror, proceed to step (9).

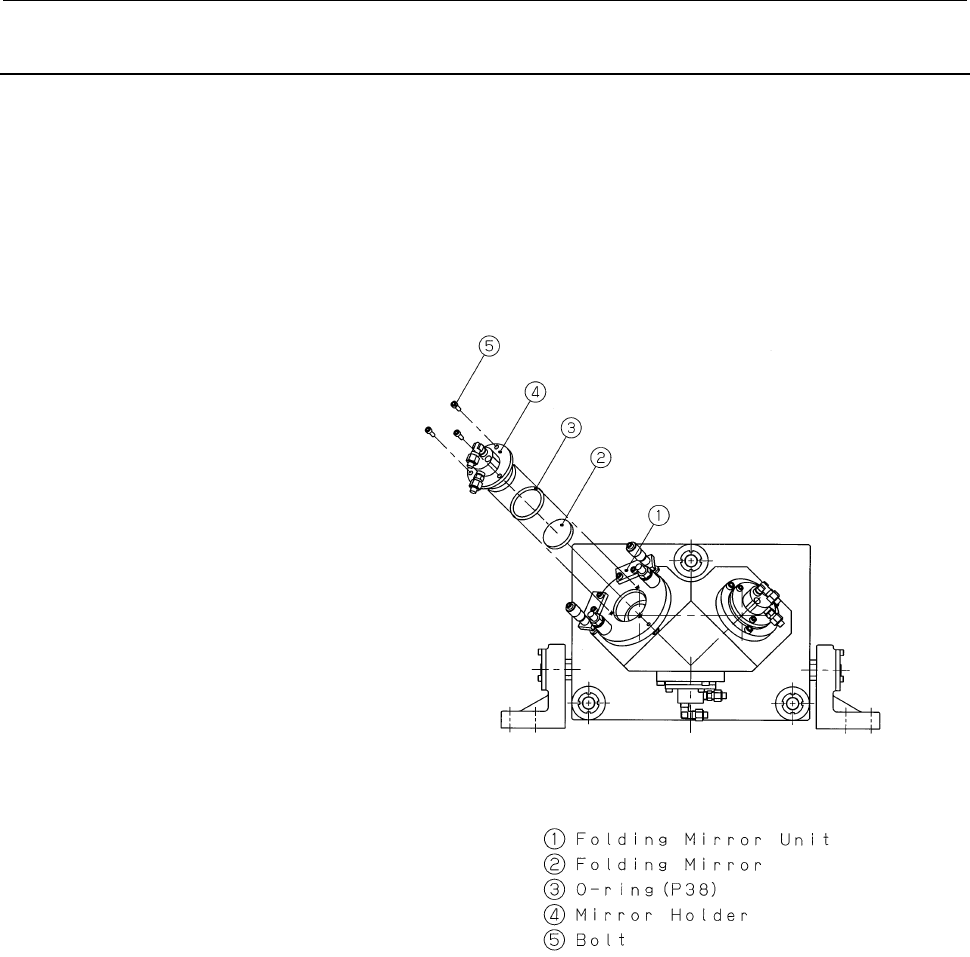

Fig.8.2.2(a) Exploded view of the holding mirror (C1000-E)
