3.3 DETAILS OF CHECKING
3.3.1 Power Supply Checking
3.3.1.1 Checking the power supply
Check whether the power supply satisfies the following specifications:
200VAC +10%, -15%, 50/60Hz ±1Hz, 3φ
or 220VAC +10%, -15%, 60Hz±1Hz, 3φ
3.3.1.2 Phase rotation

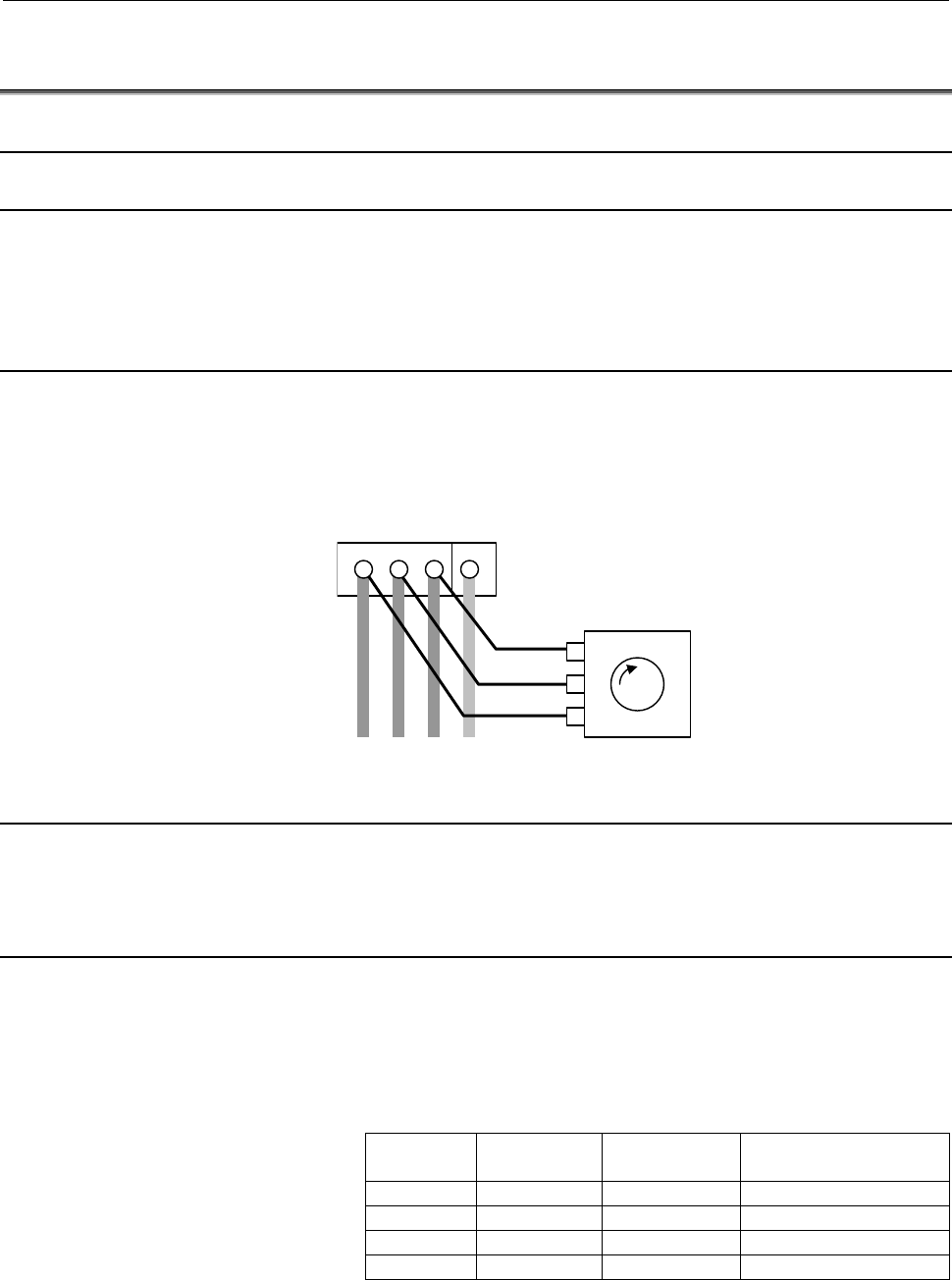

Connect input terminals U, V, and W to R, S, and T of the phase
rotation sensor, respectively, and check that the disk of the phase
rotation sensor turns clockwise.
Input terminal
U V W G (Class 1 Ground )
Phase rotation sensor
T
S
R
Fig.3.3.1.2 Phase rotation
3.3.1.3 Setting the frequency of the power supply of the hour meter
Set the frequency of the power supply of the hour meter to the
frequency of the input power supply.
3.3.1.4 Measurement of voltage of DC power supply unit
Check that the DC voltages output from the IF PCB and stabilized
power supply unit are within their allowable ranges.
(1) IF PCB : See Fig.3.3.1.4(a).
Specification : A16B-2100-0142
Rated output voltage
Terminal
name
Rated
voltage
Voltage error
allowance
Application
5V 5V ±5% Logic circuit
+24V +24V ±10% Input, output signal
+15V +15V ±5% Analog circuit
-15V -15V ±5% Analog circuit
Fuse : FU3 :A60L-0001-0175#3.2 For +5V(3.2A)
