B-63423EN/02 USER PROGRAM 7. COMMENT OF INPUT DATA ITEM

-45-

7.1 COMMENT OF INPUT DATA ITEM IN G-CODE MENU

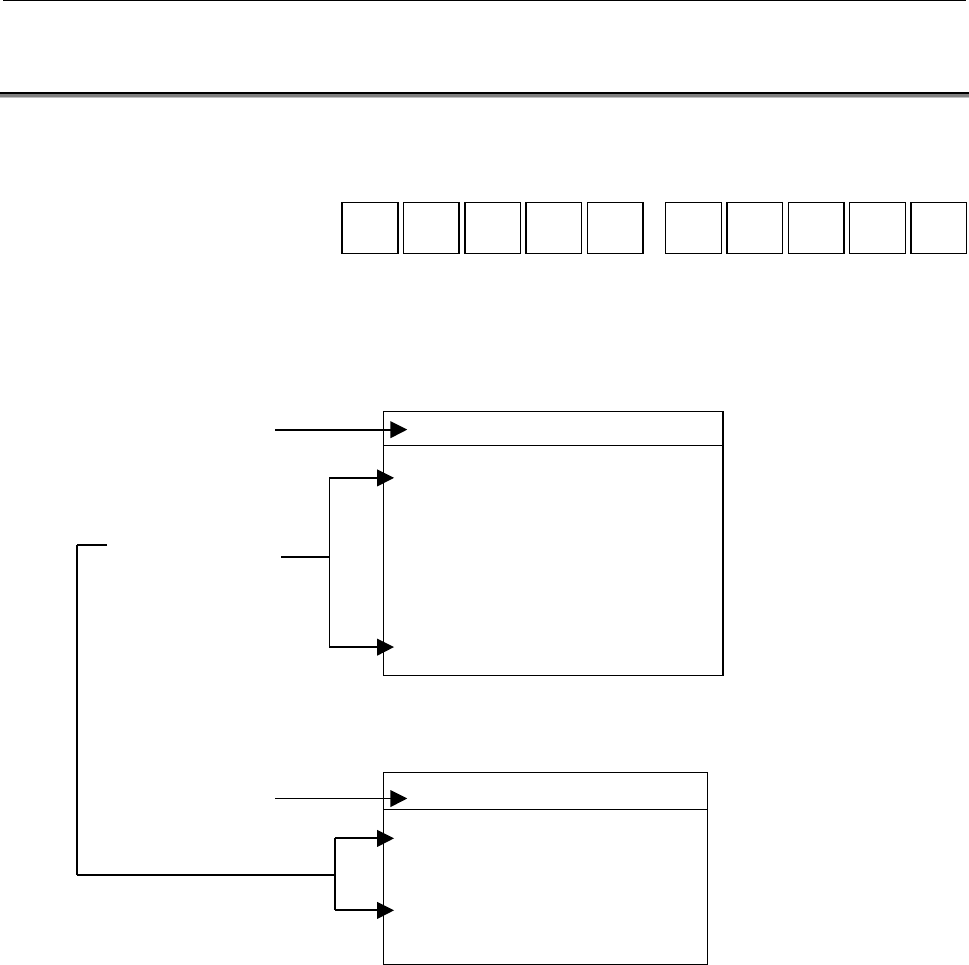

By pushing soft-key [SELECT] in large classified menu, the

following softy-keys of Editing menu will be displayed.

INIT TOOL MSF COMP POSTIN CONTUR CYCLE TEACH USER RETURN

By pushing each soft-keys, the pop-up window of the selected menu

will be displayed. This time, it is explained as an example of INITIAL

SET menu. By pushing [INIT], the following Input Data Window

(Pop-up Window) will be displayed.

And, By pushing [DETAIL], the following Detail Window is

displayed.

WORK CO-ORD. G= NO OUT

WORK SHAPE P= RECT.

WORK X CO-ORD. X=

WORK Y CO-ORD. Y=

WORK Z CO-ORD. Z=

WORK X WIDTH I=

WORK Y WIDTH J=

WORK THICKNESS K=

INITIAL SET 1

ABS / INC A= NO OUT

PLANE SELECTION S= NO OUT

ORIGIN POINT B= CENTER

INPUT UNIT M= NO OUT

INITIAL SET (DETAIL)

Title

(

)

The 1st

- m’th item

Title

(

)
