B-63423EN/02 USER PROGRAM

9. USER PROGRAMS FOR DISPLAYING GUIDANCE DRAWING FIGURE

-65-

9.2 CHARACTER COORDINATES SYSTEM AND GRAPHIC

COORDINATES SYSTEM

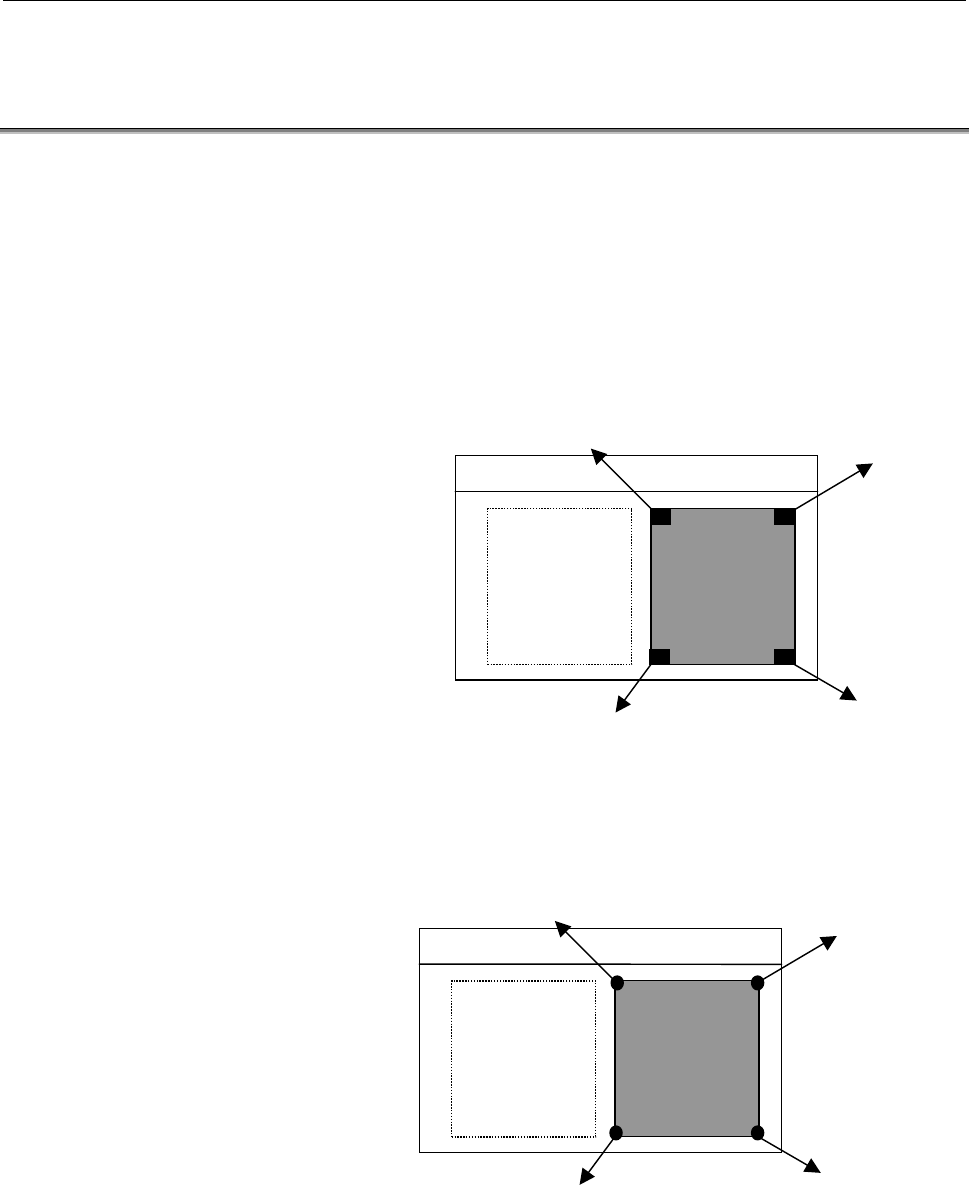

The character coordinates system and graphic coordinates system (dot

coordinates system) to display the guidance drawing figure are as

follows.

1). Character coordinates system

The character coordinates system assumes the horizontal direction

to X coordinates and the vertical direction to Y coordinates.

X coordinates are specified from left (34) to right (58) and Y

coordinates specify from top (2) to bottom (15).

2). Graphic coordinates system (Dot coordinates system)

Graphic coordinates system assumes the horizontal direction to X

coordinates and the vertical direction to Y coordinates.

X coordinates are specified from left (-80) to right (151) and Y

coordinates specify from bottom (-8) to top (215).

GuidanceInput item

(58,2)

(34,2)

(58,15)

(34,15)

GuidanceInput item

(151,215)

(-80,215)

(151,-8)

(-80,-8)
