13.2 External I/O device control

-----------------------------------------------------------------------------------------------------------------------------------------

Outline

The data exchanging with other device can be commanded by the PMC signal.

This function is activated as an operation in background editing.

Input/output data are as follows.

・NC part program

・Parameters

・Macro variables

・Diagnostic data (only output)

・PMC data

I/O device to exchange data can be selected among the following four channels.

(1) Memory card slot on the cabinet of Power Mate i

(2) Memory card slot on the display unit with touch screen made by FANUC.

(3) RS-232-C (only the first channel)

(4) FANUC I/O Link

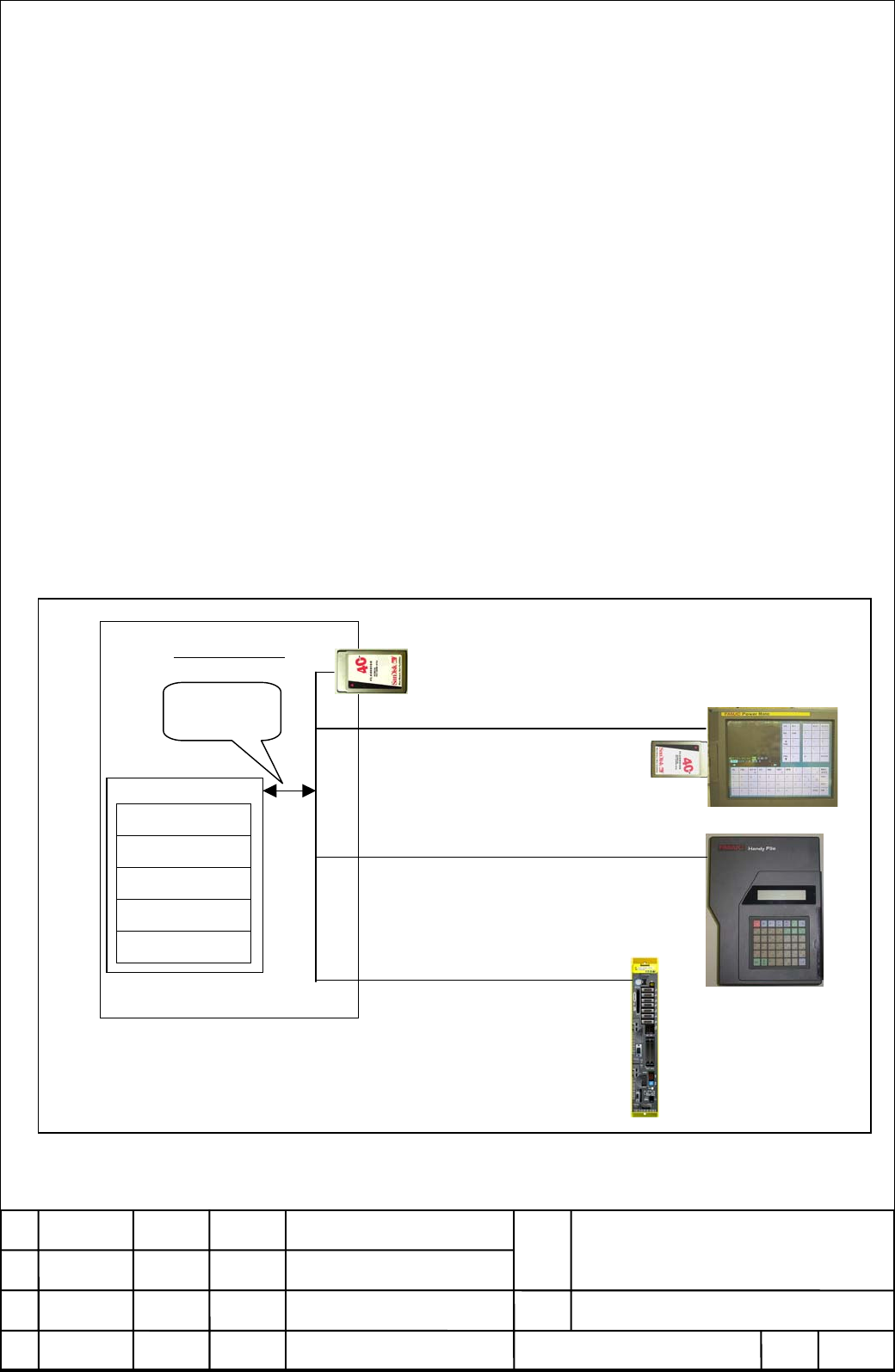

The relation among data and devices are shown in the following figure.

Power Mate i

(3) RS-232-C

(2) Memory card slot

(Display unit with touch

screen made by FANUC

Program storage area o

Master unit of I/O Link

（Power Mate i

FS16i etc.）

(4) FANUC I/O Link

Controlled

by ladder

Part program

Parameters

Macro variables

Diagnostic data

PMC data

Data

(1) Memory card slot on the cabinet of Power Mate i

Handy file

Display unit with touch screen

made by FANUC

EDIT

DATE DISIGNE

DESCRIPTION

TITLE

DRAW

FANUC Power Mate i -MODEL D/H

Enhancement of External I/O device

control function

B-63173EN/01-32

SHEET

3/40

APPROV.

FANUC LTD
