POWER MATE i-MODEL D/H (FUNCTION) Connection manual (Function) Page 276

Connection manual (Function)

Page of 1173

/ 1173

B–63173EN–1/01

7. FEEDRATE CONTROL/ACCELERATION

AND DECELERATION CONTROL

263

To prevent a mechanical shock, acceleration/deceleration is automatically

applied when the tool starts and ends its movement (Fig. 7.2.1).

Rapid traverse rate

Time

: Rapid traverse rate

: Acceleration/

deceleration time

constant for rapid

traverse rate



Time

Cutting feedrate



: Cutting feedrate

: Acceleration/

deceleration time

constant for a cutting

feedrate

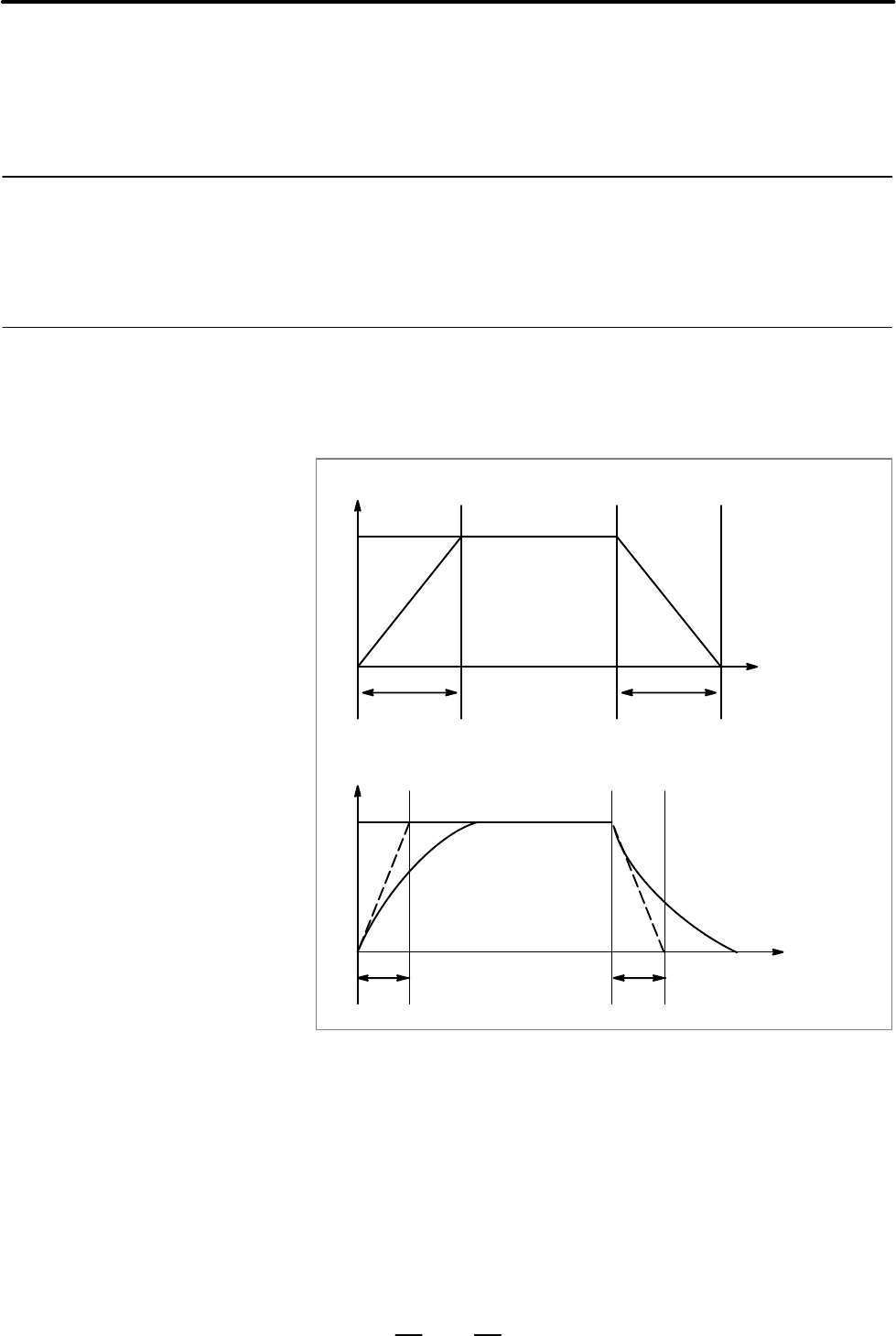

Fig. 7.2.1 Automatic acceleration/deceleration (example)

Acceleration and deceleration is performed when starting and ending

movement, resulting in smooth start and stop.

Automatic acceleration/deceleration is also performed when feedrate

changes, so change in speed is also smoothly done.

It is not necessary to take acceleration/deceleration into consideration

when programming.

Rapid traverse:Linear acceleration/deceleration (time constant per axis is

set by parameter 1620)

7.2

ACCELERATION/

DECELERATION

CONTROL

7.2.1

Automatic

Acceleration/

Deceleration

General

D Automatic acceleration/

deceleration
