9. SPINDLE SPEED FUNCTION

329

GR3O

GR2OGR1O

10V

ABC

Spindle speed

command

(S code input)

A×

Vmin

4095

C×

Vmax

4095

B×

Vmaxh

4095

A×

Vmaxl

4095

VC: Voltage corresponding to the upper limit of output value to spindle motor.

VH: Voltage corresponding to the upper limit of output value to spindle motor with high-speed gears (medium

speed gear for 3-stage gear)

VL: Voltage corresponding to the upper limit of output value to spindle motor at low-speed gear

Spindle motor speed command

(analog voltage output)

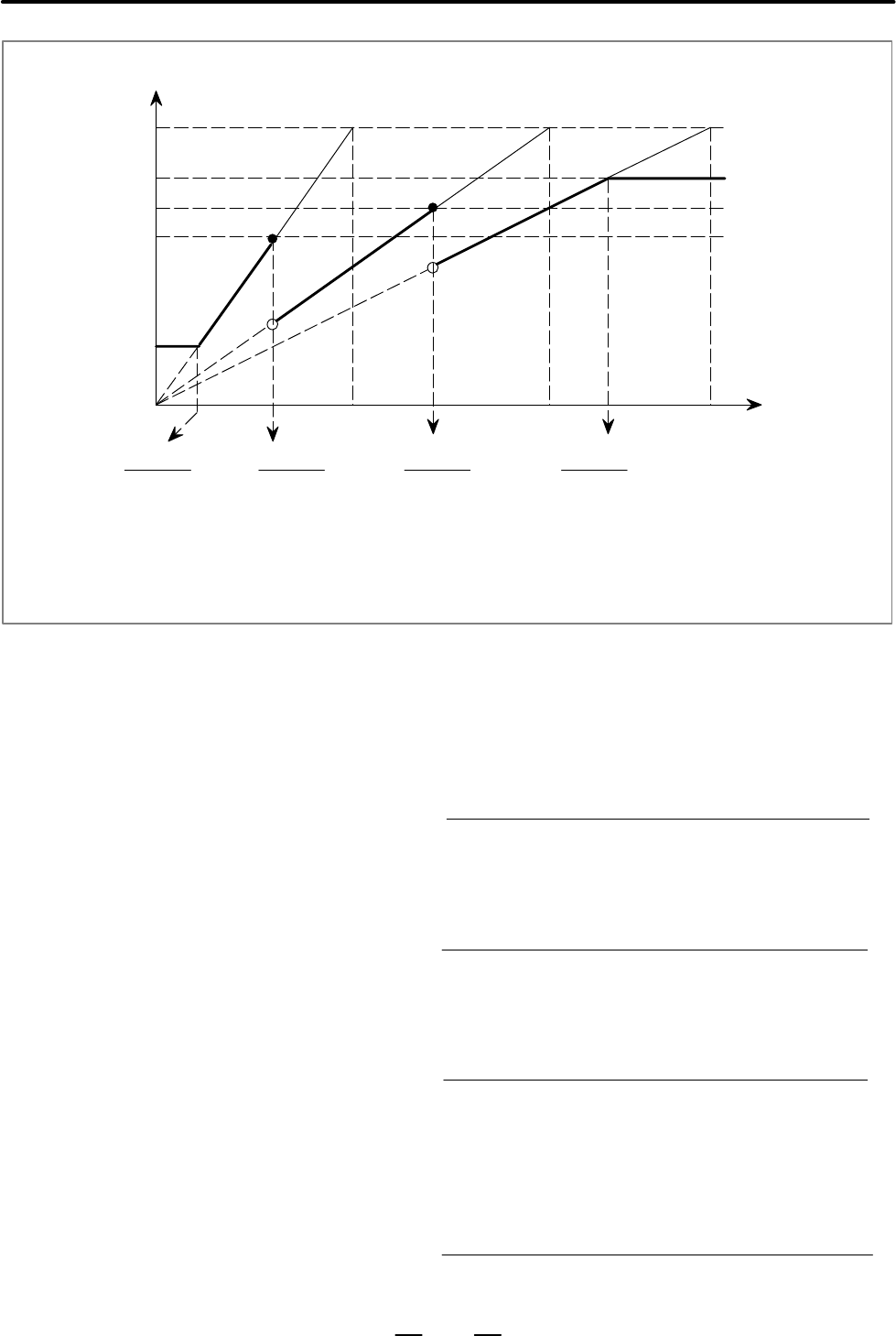

Fig. 9.3 (c) M type gear change B

When using this function, set the following parameters:

· Constant Vmax (Parameter No.3736) related to the upper limit of

spindle motor speed (rpm)

Upper limit of spindle motor speed (rpm)

Spindle motor speed (rpm) when the command voltage is 10V

Vmax = 4095×

· Constant Vmin (Parameter No. 3735) related to the lower limit of

spindle motor speed (rpm)

Vmin = 4095×

Lower limit of spindle motor speed (rpm)

Spindle motor speed (rpm) when the command voltage is 10V

· Constant Vmaxl (Parameter No. 3751) related to the upper limit of

spindle motor speed (rpm) with low-speed gears

Vmaxl = 4095×

Upper limit of spindle motor speed (rpm) with low-speed gears

Spindle motor speed (rpm) when the command voltage is 10V

· Constant Vmaxh (Parameter No. 3752) related to the upper limit of

spindle motor speed (rpm) with high-speed gears (medium-speed gear

for 3-stage gear)

Vmaxh = 4095×

Upper limit of spindle motor speed (rpm) with high-speed gears

(medium-speed gear for 3-stage gear)

Spindle motor speed (rpm) when the command voltage is 10V
