B–63173EN–1/01

1. AXIS CONTROL

If pitch error compensation data is specified, pitch errors of each axis can

be compensated in detection unit per axis.

Pitch error compensation data is set for each compensation position at the

intervals specified for each axis. The origin of compensation is the

reference position to which the tool is returned.

Pitch error compensation data can be set with external devices such as the

Handy File (see Operator’s manual). Compensation data can also be set

directly with the MDI panel.

The following parameters must be set for pitch error compensation. Set

the pitch error compensation value for each pitch error compensation

position number set by these parameters.

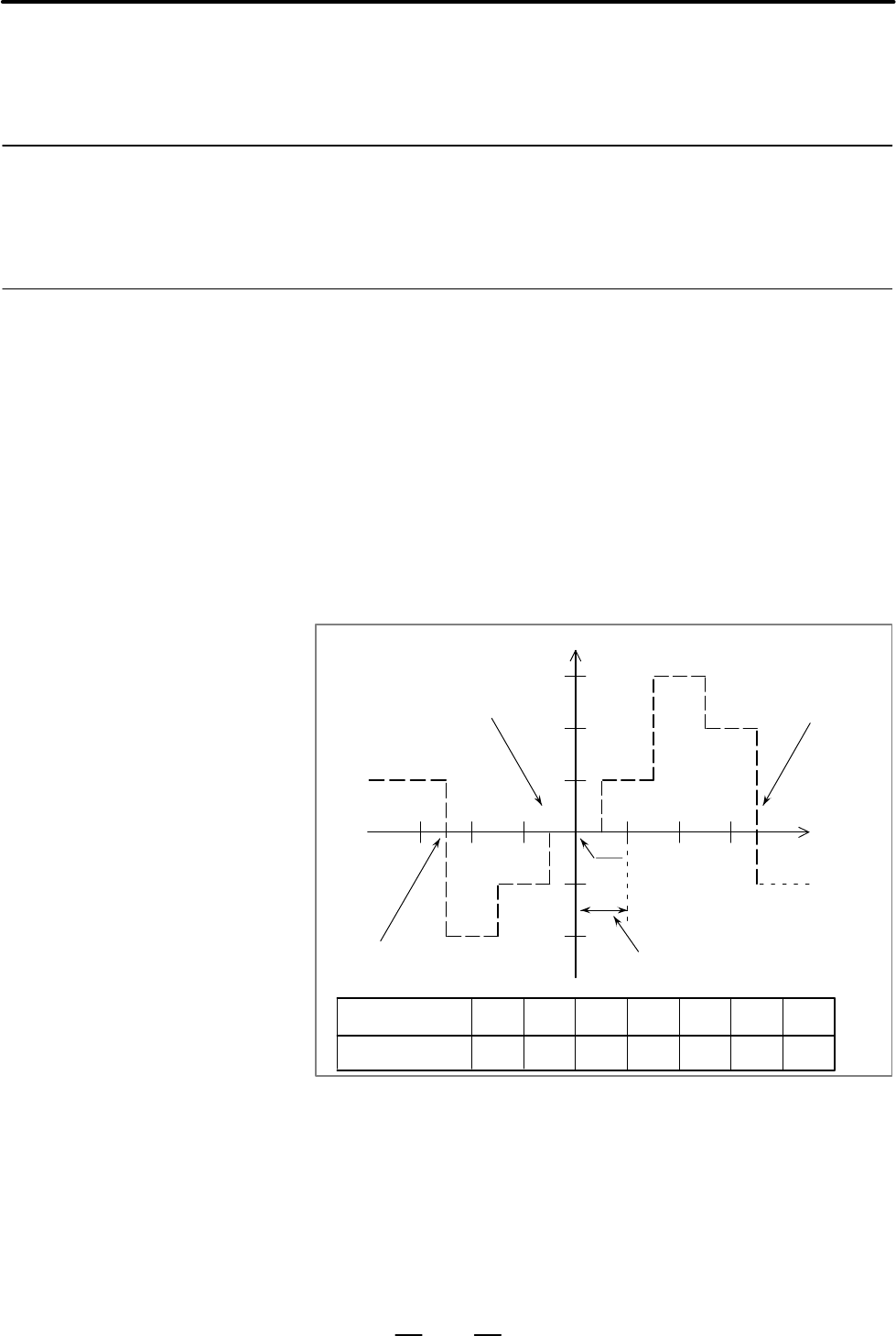

In the following example, 33 is set for the pitch error compensation

number at the reference position.

333231

34 35 36 37

–1

–2

34 35 36 3731 32 33

+3 –1 –1 +1 +2 –1 –3

Reference position

Pitch error compensation value (absolute value)

Compensation number for the

reference position (No. 3620)

Compensation number for

the compensation position

having the largest value

(No. 3622)

Compensation magnification

parameter (No. 3623)

Compensation number for the

compensation position having the

smallest value (No. 3621)

Compensation

position number

Compensation interval

parameter (No. 3624)

Compensation

value to be set

· Number of the pitch error compensation position at the reference

position (for each axis): Parameter 3620

· Number of the pitch error compensation position having the smallest

value (for each axis): Parameter 3621

· Number of the pitch error compensation position having the largest

value (for each axis): Parameter 3622

· Pitch error compensation magnification (for each axis): Parameter

3623

1.3

ERROR

COMPENSATION

1.3.1

Stored Pitch Error

Compensation (for

Power Mate i–D)

General
