FANUC Power Mate i-MODEL H

CONNECTION MANUAL (FUNCTION)

High Speed Skip function

B-63173EN-1/01-26

Movement between Movement between the block with this command and the next blockthe block with this command and the next block

The in-position check and the accelerating/decelerating completion

check between blocks are not done, when both this block and the next

block are commanded the cutting feed.

But the next block is read after the skip signal is input. So, the axis

decelerates between blocks for a time, if the traveling distance from

skip signal is short.

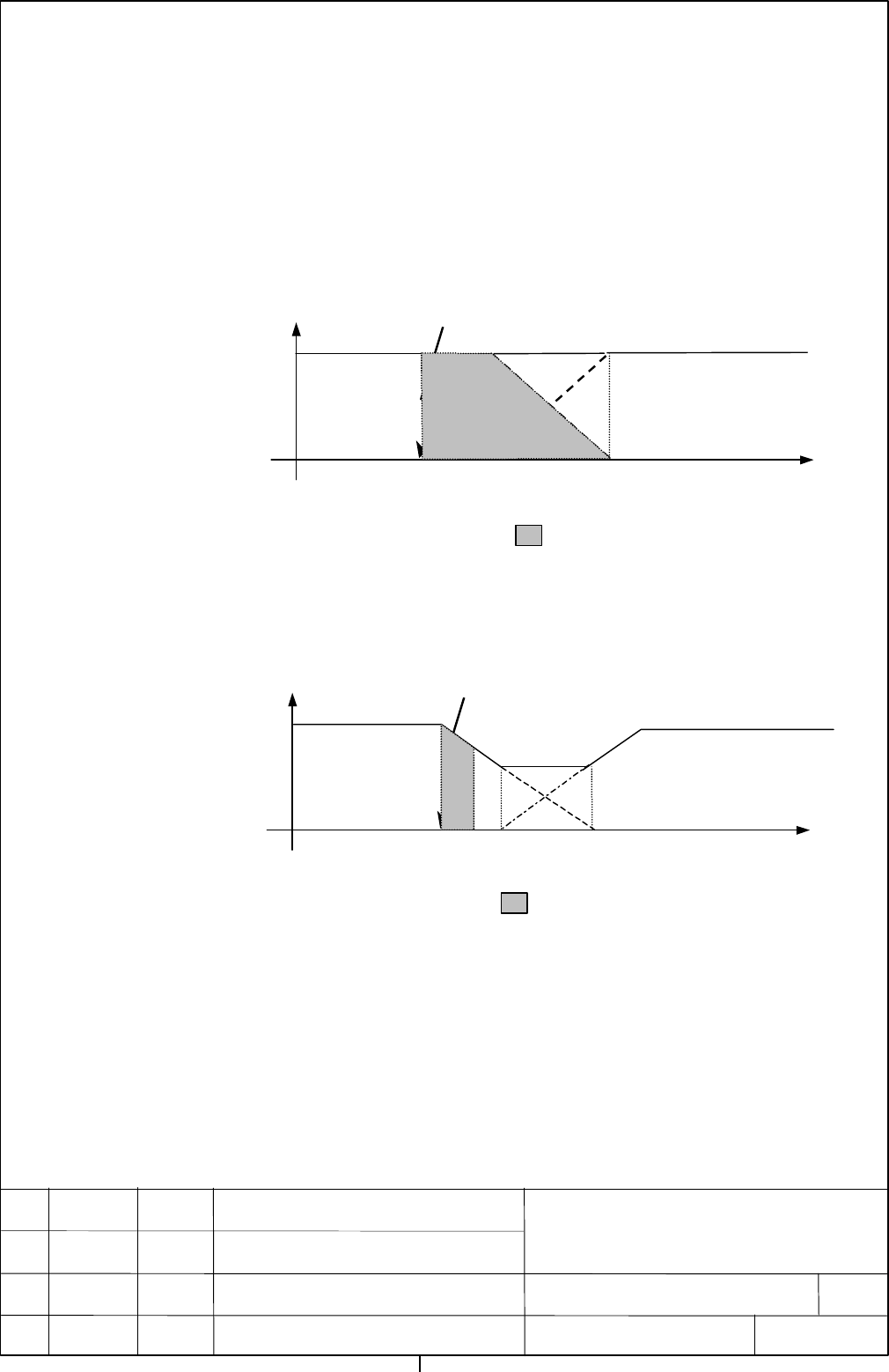

(1) When the traveling distance from skip signal is long enough to

decelerate.

Note) The part of is specified traveling distance from

skip signal.

(2) When the traveling distance from skip signal is short. (Parameter

SKR (bit 7 of No.6209) is 1.)

Note) The part of is specified traveling distance from skip

signal.

this command

next block (G01)

Speed

Time

skip signal input

this command

next block (G01)

Speed

Time

skip signal input
