POWER MATE i-MODEL D/H (FUNCTION) Connection manual (Function) Page 809

Connection manual (Function)

Page of 1173

/ 1173

B-63173EN-1/01-15

4/17

EDIT

DATE DESIG. DESCRIPTION

FANUC Power Mate i-MODEL H

Enhancement of Electronic CAM

Function Specifications

DRAW.NO. CUST.

SHEET

00.08.07 New design

TITLE

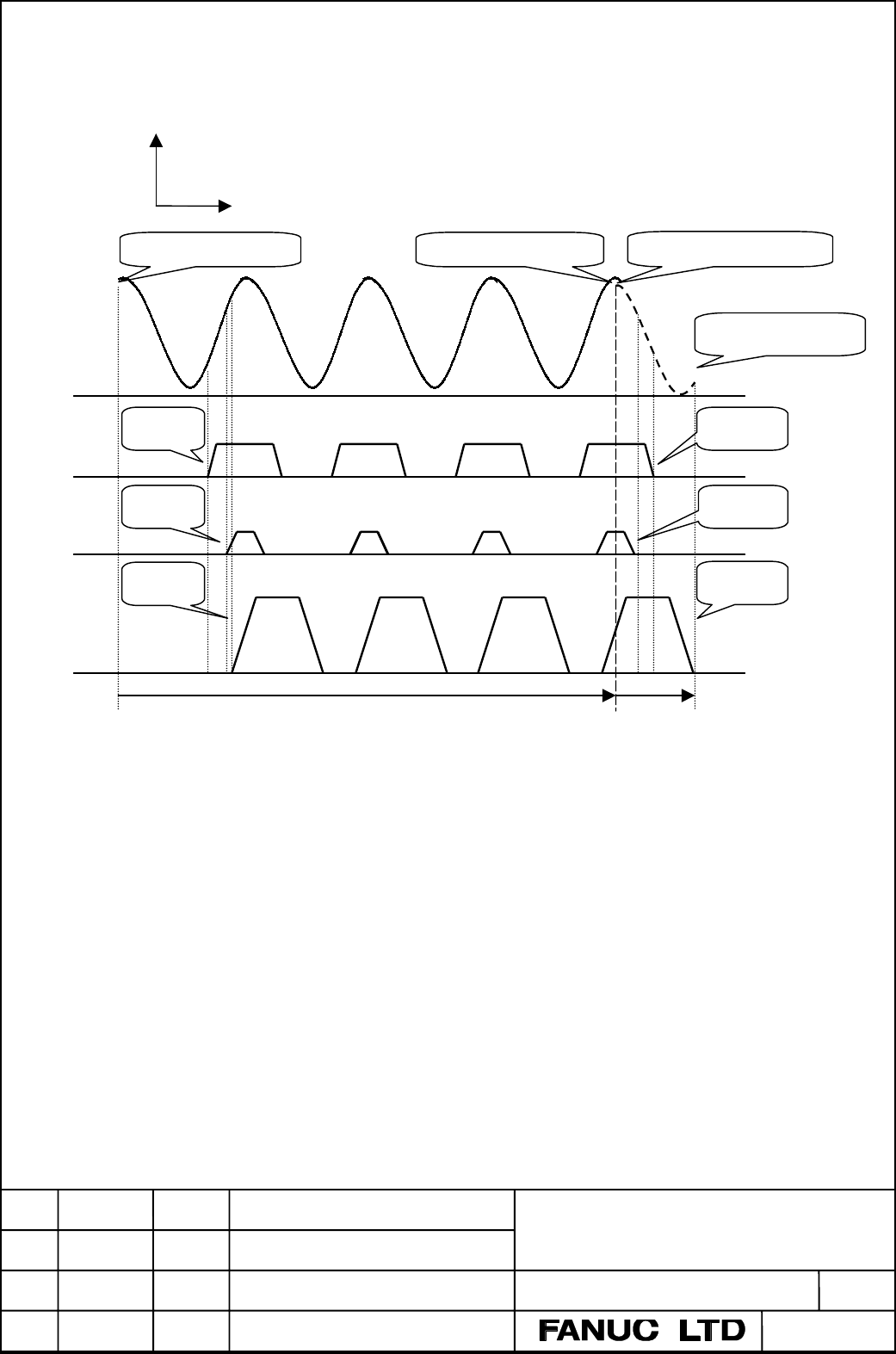

(2),(3) can be applied to the application shown in the Fig.1-1.

Fig.1-1 Example applied enhancement (2)(3)

In the Fig.1-1, the horizontal axis corresponds to the phase of a CAM shaft and the vertical axis

corresponds to the position of each CAM follower. The external axis is performed to-and-fro linear

motion by the CAM shaft.

As shown in the Fig.1-1, the external axis is started from the certain point at first. Then the follower

axes #1, #2 and #3 are started one by one from the designated points. And electronic CAM operation

with an external axis as a CAM shaft (external synchronization) is performed.

When the operation is completed, the external axis will stop at the certain point and a CAM shaft is

switched to an imaginary axis at the same time so that the CAM follower axes stop at the certain point

smoothly. The imaginary axis starts moving automatically with keeping the velocity of the external axis.

Then electronic CAM operation with an imaginary axis as a CAM shaft (internal synchronization) is

performed.

After that, each follower axis will stop at each designated point one by one.

External axis/

Imaginary axis

Follower #1

Follower #2

Starting

Starting external axis Stopping external axis

Switch to imaginary axis

Stopping

Stopping imaginary

axis

Internal synchronization by

imaginary axis

External synchronization by external axis

Starting

Follower #3

CAM

follower

position

CAM shaft

phase
