FANUC Power Mate i-MODEL H

CONNECTION MANUAL (FUNCTION)

High Speed Skip function

B-63173EN-1/01-26

Pnc :: Position where an axis is actually stopped after detecting a skip

signal. [mm/inch]

P :: Position to be measured [mm/inch]

Q :: Servo delay [mm/inch]

Under the conditions shown above, the NC calculates the following

equation according to the parameter SEA (bit 0 of parameter No. 6201)

or the SEB (bit 1 of parameter No. 6201):

P = Pnc – Q

As for type A (SEA bit 0 of parameter No. 6201 is “1”), the deviation is

calculated by:

Q = Fm x 1/60 x (á x Tc/1000+Ts/1000)

Fm :: Feedrate [mm/min or inch/min]

Tc :: Cutting time constant [msec] (Parameter No. 1622:)

If parameter SKF (bit 7 of parameter No. 6200) = 0, then Tc = 0.

Ts :: Servo time constant [msec]

Assuming that the loop gain (parameter No. 1825) is G (unit: 1/s),

then Ts = 1000/G

á ::=1 in case exponential acceleration/deceleration

=1/2 in case linear acceleration/deceleration after interpolation

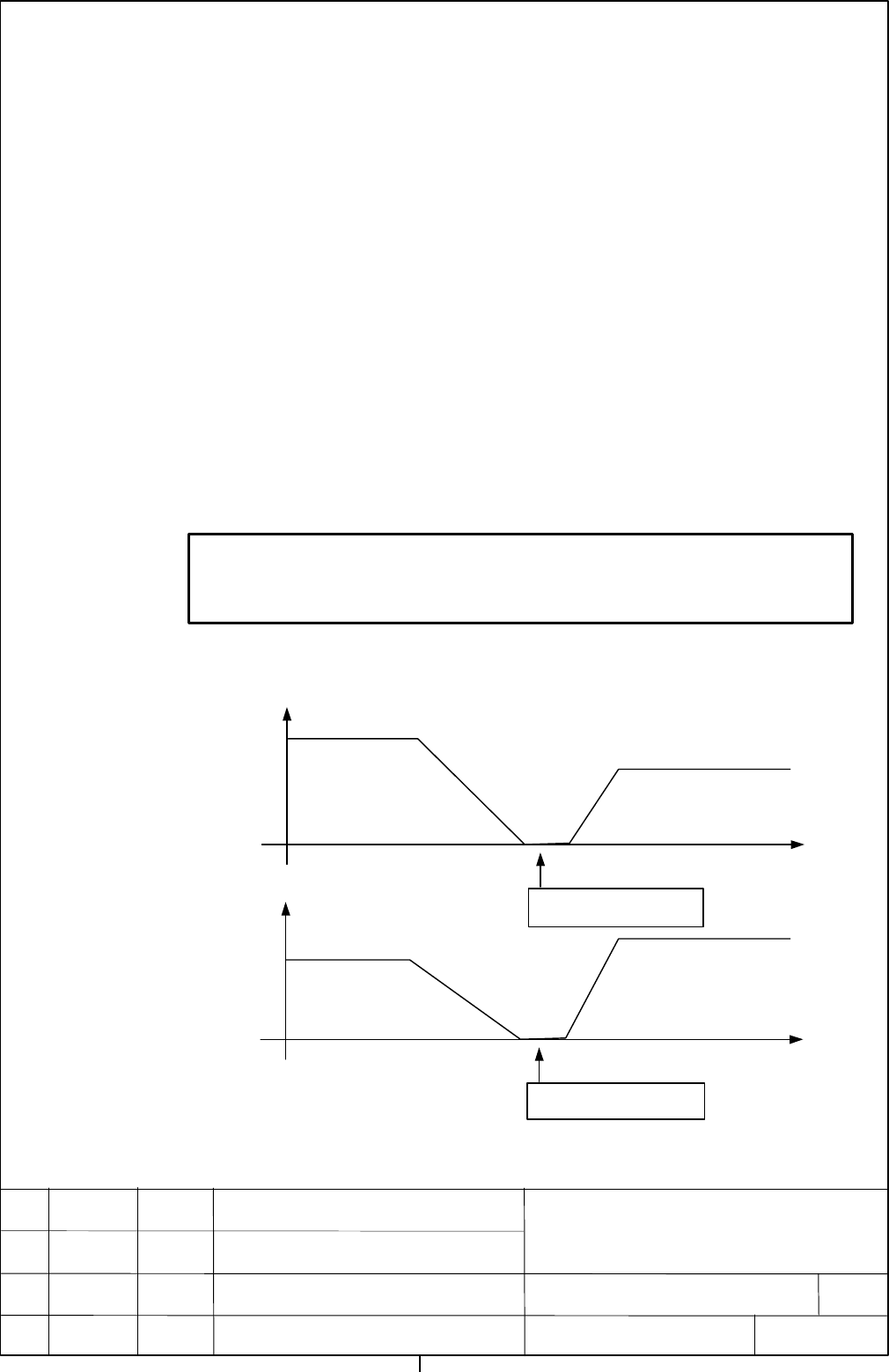

Movement between this command and former/latter blockMovement between this command and former/latter block

After the in-position check is done between the block of this command

and the former/latter block, the next block is started.

NoteNote

In case ofIn case of type A (parameter SEA ( type A (parameter SEA (bit 0 of bit 0 of No. 6201No. 6201)=1),)=1), the the

skip signalskip signal must be turned on when the axis moves at constantmust be turned on when the axis moves at constant

feedrate.feedrate.

in-position check

this command

latter block

Speed

Time

in-position check

former block

this command

Speed

Time
