B–63173EN–1/01

7. FEEDRATE CONTROL/ACCELERATION

AND DECELERATION CONTROL

255

After specifying G95 (in the feed per revolution mode), the amount of

feed of the tool per spindle revolution is to be directly specified by setting

a number after F. G95 is a modal code. Once a G95 is specified, it is valid

until G94 (feed per minute) is specified.

An override of between 0 and 254% (in steps of 1%) can be applied to feed

per rotation, using the feedrate override signals (*FV0 to *FV7). (See

Subsection 7.1.7.2.)

Feed amount per spindle revolution

(mm/rev or inch/rev)

[T series]

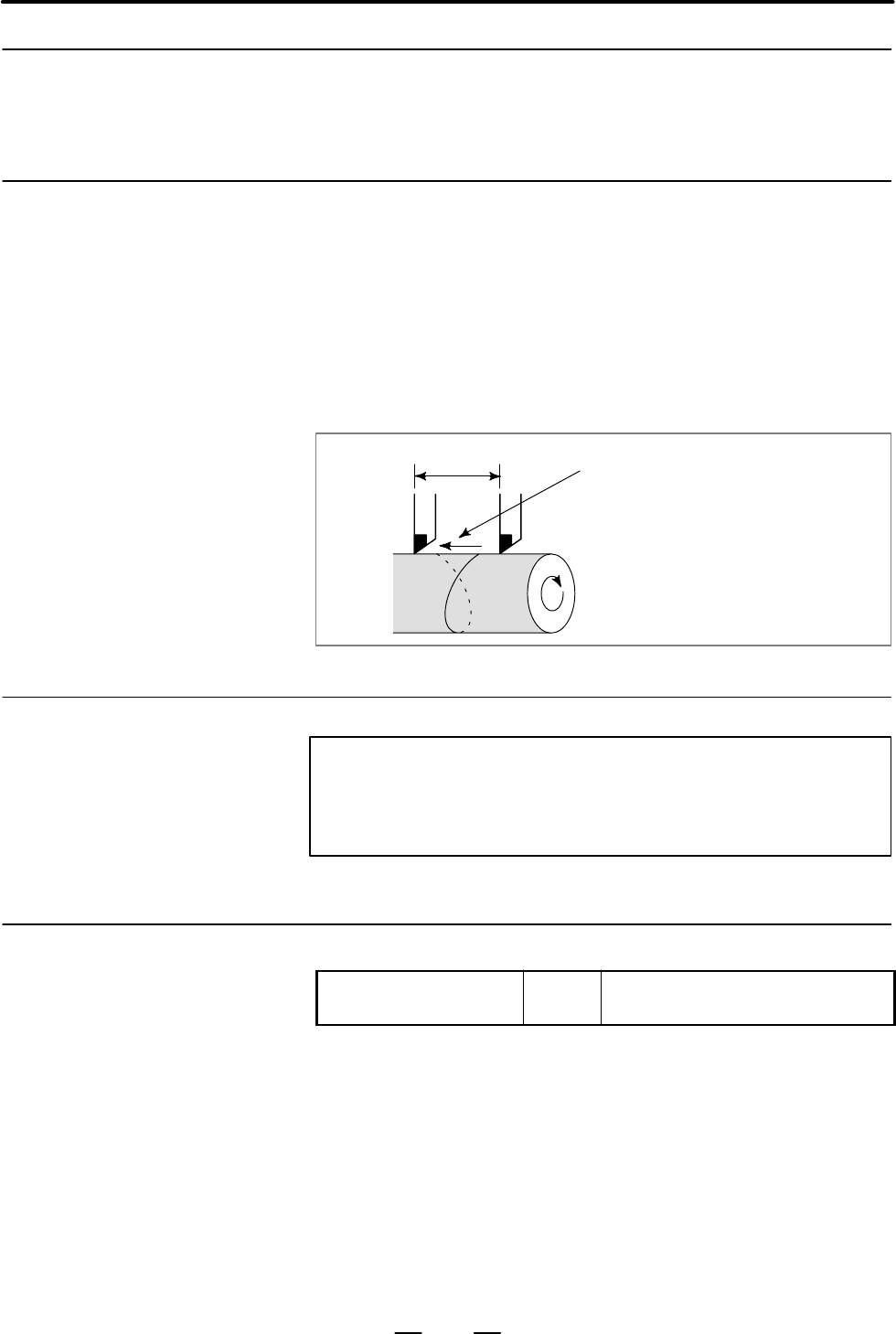

Fig. 7.1.4 Feed per revolution

CAUTION

When the speed of the spindle is low, feedrate fluctuation

may occur. The slower the spindle rotates, the more

frequently feedrate fluctuation occurs.

OPERATOR’S MANUAL

(B–63174EN)

II.5.3 Cutting feed

7.1.4

Feed Per Revolution/

Manual Feed Per

Revolution

General

D Feed per revolution

Caution

Reference item
