B–63173EN–1/01

19 HANDY OPERATOR’S PANEL

579

[Classification] Input signal

[Function] This signal controls whether to turn on or off the LEDs on the Handy

Operator’s Panel.

[Operation] If the signal becomes 0, the control unit:

– Turns off the corresponding LED on the Handy Operator’s Panel.

If the signal becomes 1, the control unit:

– Turns on the corresponding LED on the Handy Operator’s Panel.

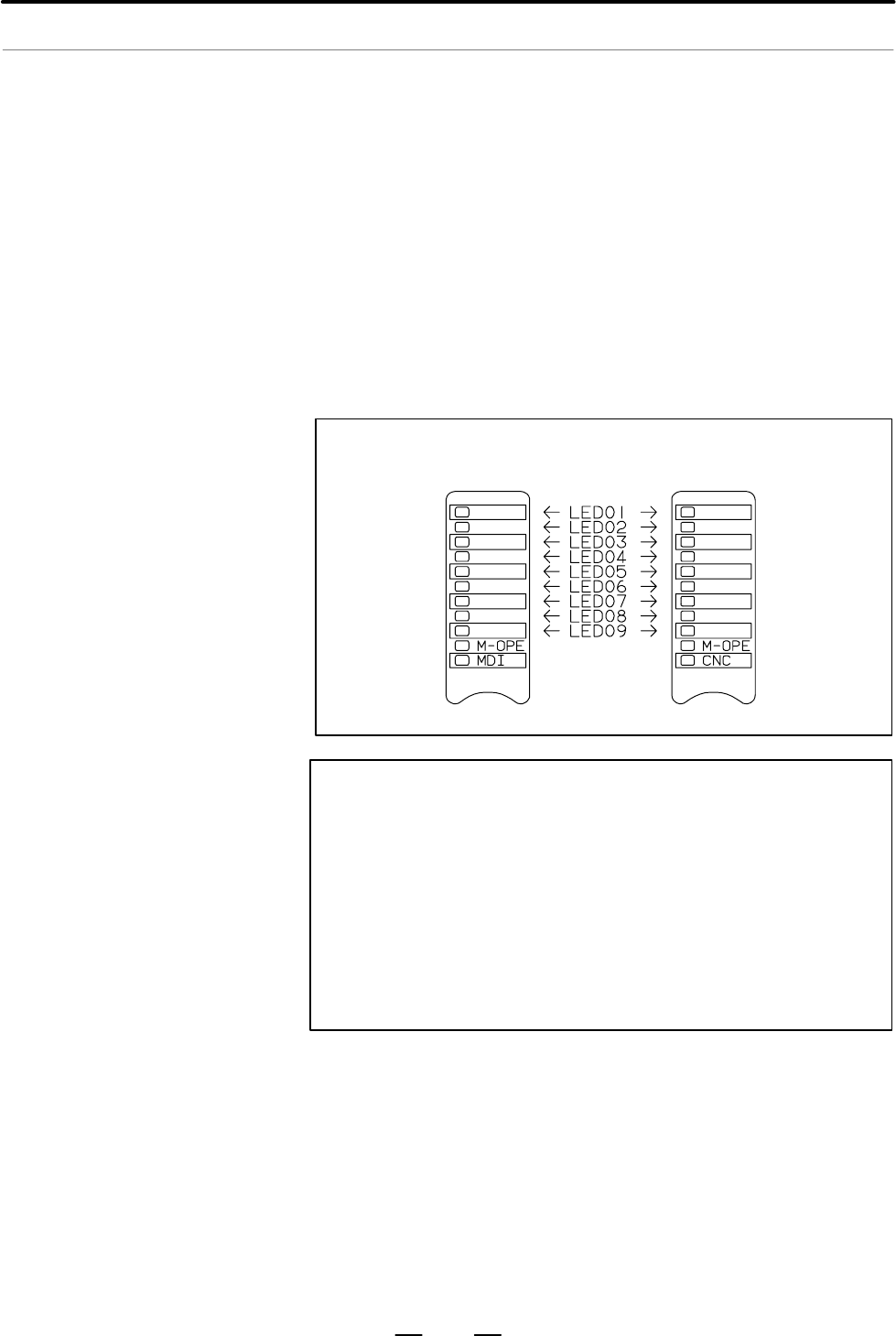

The correspondence between the signals and LEDs is as shown below:

Alphanumeric LED key sheet Symbolic LED key sheet

NOTE

The two LEDs below indicate whether machine operation

mode is selected, and whether MDI mode is selected.

These LEDs cannot be turned on and off by a ladder

program.

M–OPE turned on: Machine operation mode is selected.

M–OPE turned off: Machine operation mode is not

selected.

MDI turned on: MDI mode is selected.

MDI turned off: MDI mode is not selected.

Handy operator’s panel

LED control signal

LED01 to LED09 <G204,

G205#0>
