5. AUTOMATIC OPERATION

B–63173EN–1/01

234

M05

command

Tapping retraction

start signal RTNT

M04 or

M03 command

S command

Retract movement

Spindle speed

(rpm)

FIN

Tapping retraction

completion signal RTNT

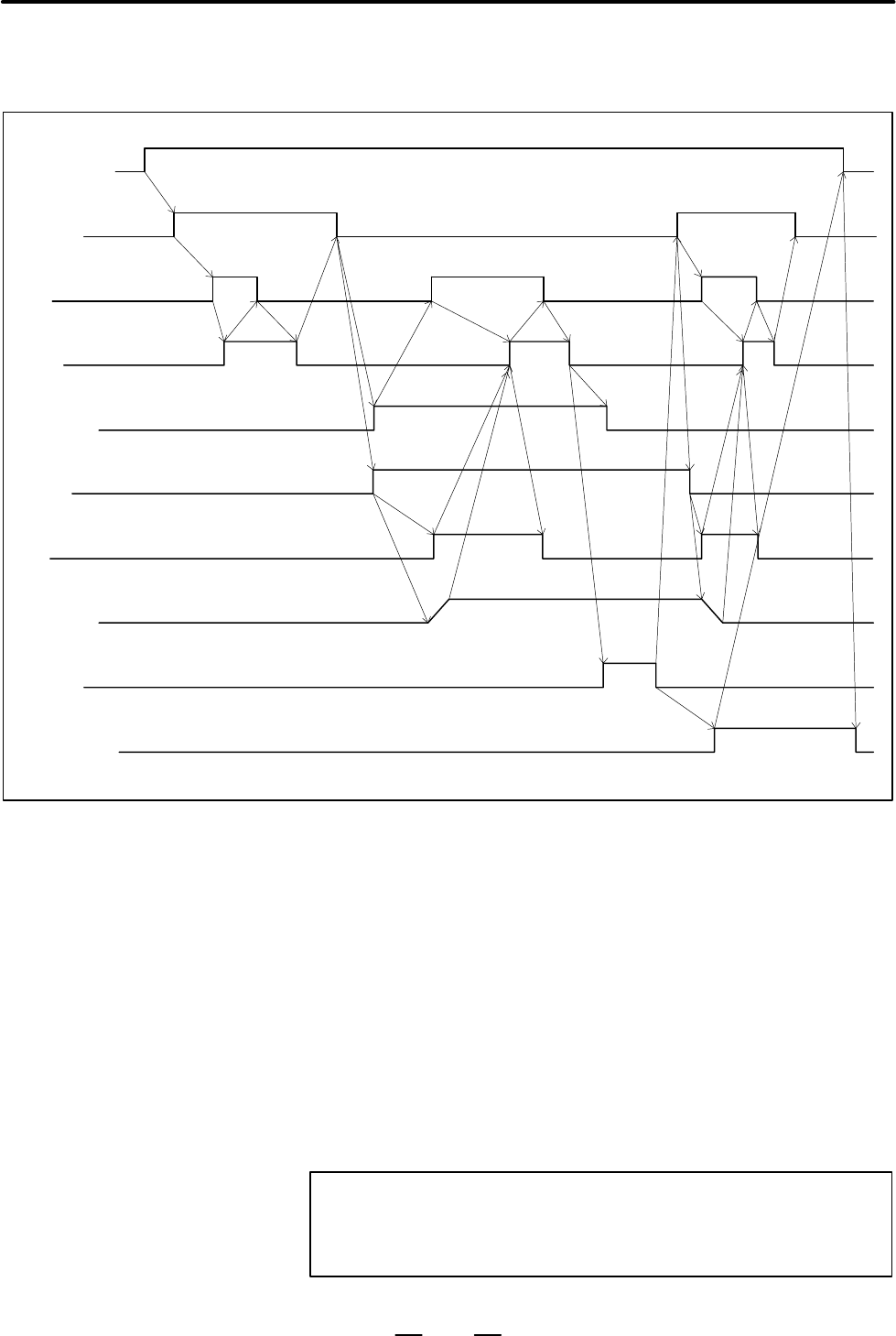

Fig. 5.9 Start and Completion Timing Chart

1 After a reset has been performed, setting the tap return signal (RTNT)

to 1 in the MDI mode causes M05 to be output.

Do not attempt to perform gear shift and orientation during a tap

return.

2 After the spindle has stopped, returning FIN causes M03 (M04) and

the same S command as for when tapping is discontinued to be output.

3 Once the spindle has started, returning FIN triggers tap returning.

4 After tap returning is completed, M05 and S0 are output, and the tap

return completion signal (RTPT) becomes 1.

5 Returning FIN triggers a reset.

NOTE

If bit 6 (SFA) of parameter No. 3705 is 0, SF will not be output

unless a gear shift occurs.

Start and completion

time chart

D Description about the

timing chart
