Series 16i Additional Manual Page 19

Additional Manual
19
/
88
A-78710E
Edit
Apprv. Desig.
Sheet
Title
Draw
No.
Date
Design
Descri
p
tion
Date
FANUC Series 16i –MB, 18i –MB5
Tool Radius Compensation For 5-Axis
machining Specifications
Dec.01.2001
02 Mar.22.2002
T.Mochia All revision
H.Kouzai
Sheet
T.Mochida H.Kouzai
03 Mar.28.2003
MTanaka All revision H.kouzai
04 Aug.05.2003
T.Horie Intersection offset, G-code unification add. H.kouzai
05 Jun.02.2004 Intersection offset(tool rotation type, Mixed type)
Fig.2.19 Q1 Command
A perpendicular vector can also be generated by specifying G41.2 or G42.1
in the next block as follows:
Example: N6 G41.2 Y-400 Z0

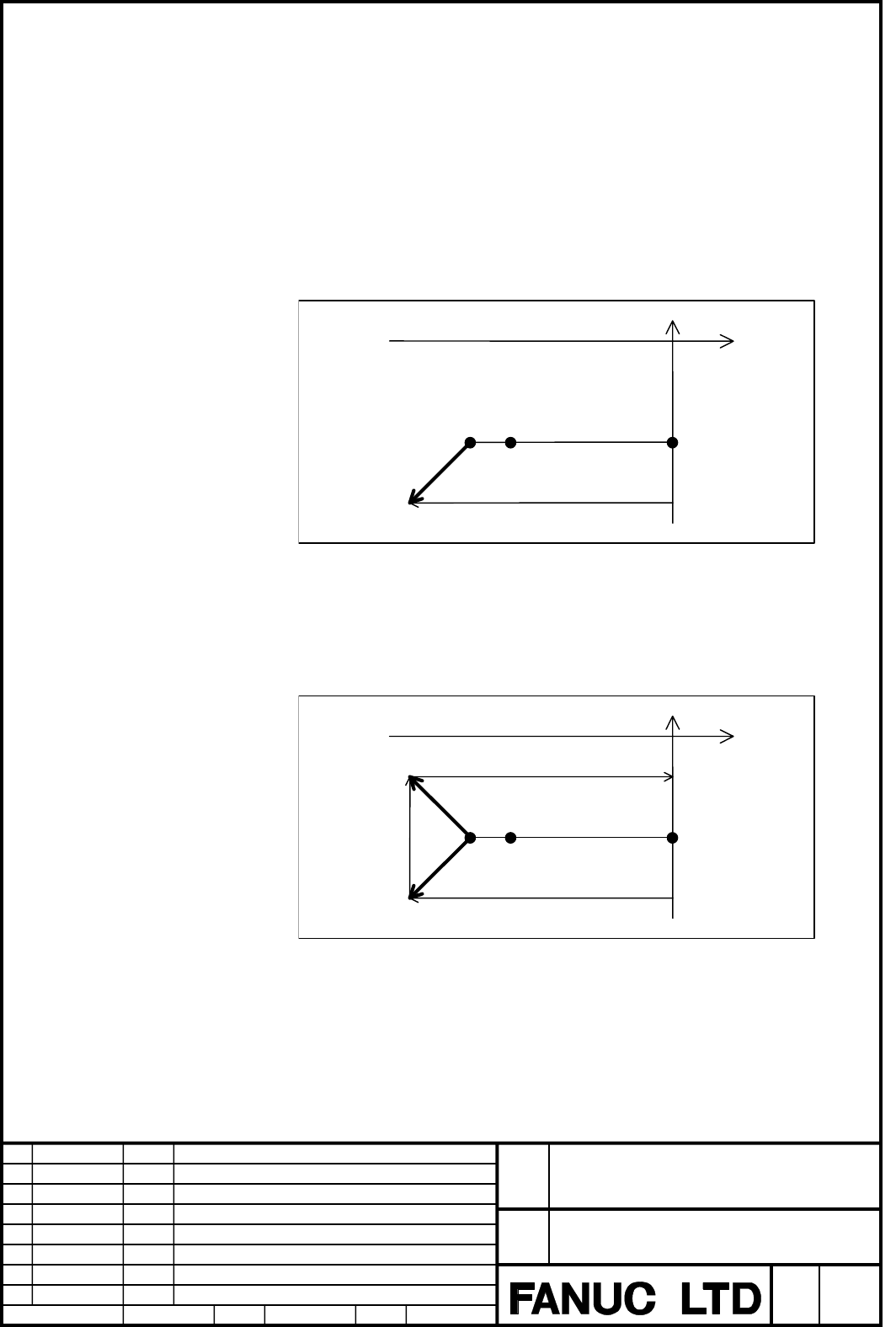

(2) Q2 command
With a program specifying a linear-to-linear connection, up to two
compensation vectors are generated. In this case, the second vector is
deleted by inserting a Q2 command. The Q2 command has no effect on
circular interpolation.
Example) N4 Y-200 Z-200 Q2
The second vector (V2) is deleted, and only V1 is used as a compensation vector.
e3
e2
A
’C’B’
V1
Fig.2.20 Q2 Command
(3) Q3 command
By inserting a Q3 command, the issue of the alarm can be suppressed.
Example) N4 Y-200 Z-200 Q3
The two vectors (V1 and V2) are not deleted.
e3
e2
A
’C’B’
V1
V2
Fig.2.21 Q3 Command
